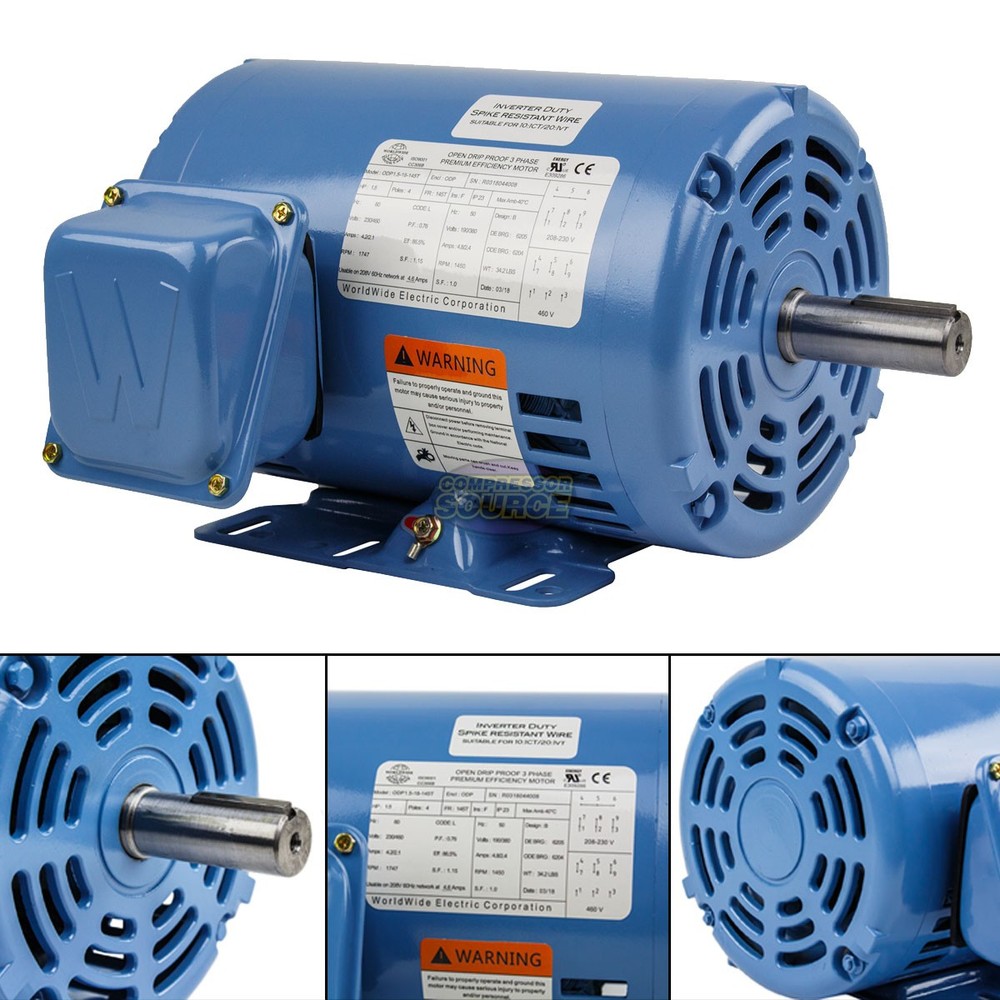

1.5 HP 3 Phase Electric Motor 1800 RPM 145T Frame ODP Open Drip Proof 230/460V

USD 339.95 USD

SKU: yhVsByl7

Brand: Worldwide Electric

MPN: ODP1.5-18-145T

GTIN: 685650079424

Condition: New

Tags: 1-1/2" 1.15 1.5 Horsepower, 3 Phase 145T 1747 1800 RPM 230 V, 460 V 4.8 60 Hz 685650079424 7/8 in Base-Mounted Blue electric motor F (Max 311°F) IP23 Keyed Non-Reversible Not Protected ODP ODP (Open Drip-Proof) ODP1.5-18-145T Premium Efficiency Three Phase Worldwide Electric

Categories: Metalworking Equipment

Specifications

Brand	Worldwide Electric
Shaft Diameter	7/8 in
Enclosure Type	ODP (Open Drip-Proof)
MPN	ODP1.5-18-145T
Model	ODP1.5-18-145T
Rated Load (HP)	1 1/2
AC Phase	Three Phase
Nominal Rated Input Voltage	230 V, 460 V
Service Factor	1.15
IEC Frame Size	145T
AC Frequency Rating	60 Hz
Mounting Type	Base-Mounted
Reversible/Non-Reversible	Non-Reversible
Shaft Type	Keyed
IP Rating	IP23
Insulation Class	F (Max 311°F)
Protection Against Liquids	Not Protected
Base RPM	1747
Full Load Amps	4.8
Style	ODP
Type	Electric Motor
Color	Blue
Features	1.5 Horsepower, 3 Phase
Design	Premium Efficiency
UPC	685650079424

1.5 horsepower, open drip proof, 3 phase premium efficiency electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor (1.00 at 50Hz), is a premium efficiency inverter duty motor. Designed for 60Hz, features a ODP enclosure, and is a 145T frame.

1.5 HP 3 Phase Electric Motor 1800 RPM 145T Frame ODP Open Drip Proof 230/460V
