1 PULSE PE-51687NL AC CURRENT SENSE TRANSFORMER INDUCTOR 100:1 20 AMP 20-200 KHZ
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Mounting Style | PCB Mount |
| Brand | Pulse |
| Minimum Operating Frequency | 20 kHz |
| Primary Current Rating | 0-20A |
| INDUCTANCE | 20 MH |
| Maximum Operating Frequency | 200 kHz |
| MPN | AC1005 |
| Turns Ratio | 100:1 |

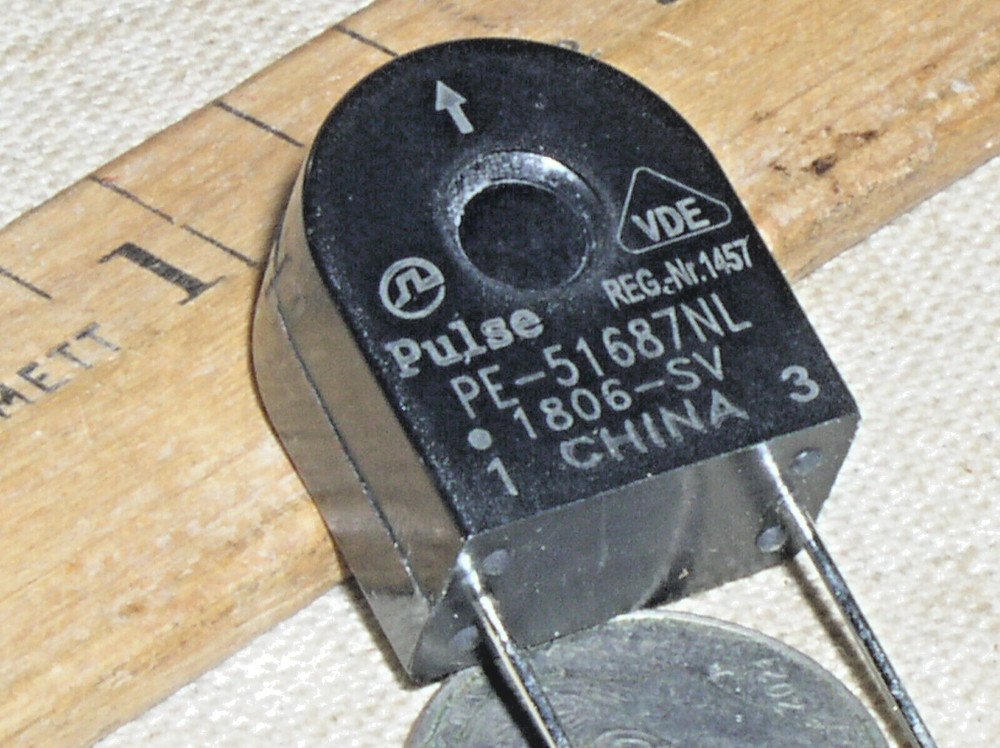

ONE (1) BRAND NEW PULSE PE-51687NL AC ONLY 20-200 KHZ CURRENT SENSE TRANSFORMER 20A 1:100 20 MH INDUCTANCE FOR HIGH FREQUENCY CURRENT SENSINGWILL NOT WORK WITH 60HZ HOUSEHOLD LINE ONE AMP AC THROUGH THE SENSOR GIVES 100MV AC OUTPUT WITH A 100 OHM RESISTOR ACROSS THE TERMINALSPRIMARY LEAD HOLE IS 4.32 MM MINIMUM 20 AMPS AC THROUGH THE SENSOR GIVES 2000MV AC OUTPUT WITH A 100 OHM RESISTOR ACROSS THE TERMINALS @ 20-200 KHZ YOU MAY NEED TO FINE TUNE THE 100 OHM BURDEN RESISTOR TO MATCH YOUR NEEDS WHEN METERS DON'T AGREE EXACTLY BUT TRANSFORMERS DON'T LIE SEE THE DATA SHEET FOR THIS PART COPY AND PASTE BELOW: https://productfinder.pulseelectronics.com/api/open/part-attachments/datasheet/PE-51687NL YOU WILL NEED A METER THAT CAN READ 0-2V AC 20-200KHZ SEE MY OTHER POWER SUPPLIES: Click Here FOR MORE GREAT DEALS! I SHIP NOW! FIXED SHIPPINGNO RETURNS AUCTION SO PLEASE BE SURE OF WHAT YOU ARE BUYINGREAD EVERYTHING TWICE AND SEE ALL THE PICTURES. I TRY MY BEST AT AN HONEST DESCRIPTION, PLEASE ASK ANY QUESTIONS BEFORE BIDDING OR BUYING! EXPERT PACKING AND NEXT POSTAL MORNING SHIPPING! NO FINE PRINT, YOU ARE SAFE HERE! FIXED HONEST SHIPPING COST, NO GOUGING LIKE THOSE OTHER AUCTIONS! YOU WILL RECEIVE A SHIPPING NOTIFICATION EXPERT PACKING AND NEXT POSTAL MORNING SHIPPING! I SHIP OUT FAST! THANKS FOR LOOKING!*****
