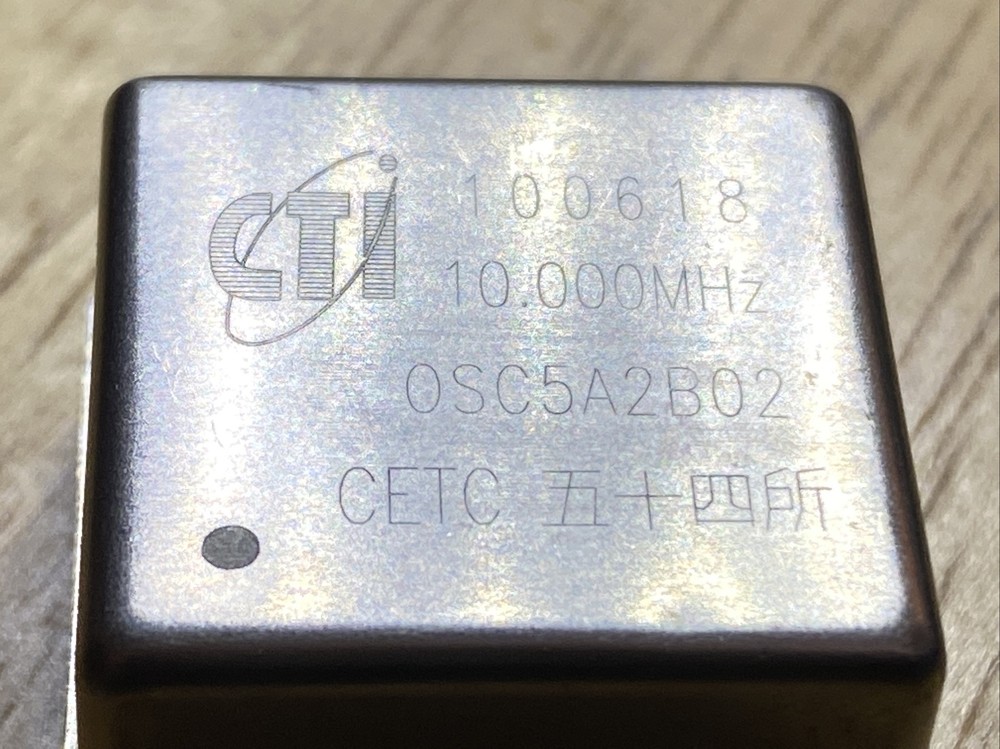

10.000MHz VCOCXO Voltage Control Oven Crystal Oscillator 5V 26x26x13mm OSC5A2B02
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Load Capacitance | 15 pF |
| Termination Style | Through Hole |
| MPN | Does Not Apply |
| Item Length | 26 mm |
| Brand | CTI |
| Type | Crystal Oscillator |
| Manufacturer Warranty | 90 Days |
| Item Height | 13 mm |
| Oscillator Frequency | 10MHz |
| Item Width | 26 mm |
| Maximum Operating Voltage | 5 V |
10.000MHz VCOCXO Voltage-Controlled Oven Crystal Oscillator 5V 26x26x13mm Square Wave CTI-OSC5A2B02.Used - Certified Like New Nominal Frequency: 10.000 MHzFrequency Control: -10Hz to +20Hz using Pin 3 V(CONTROL) 0-4V Initial Frequency Accuracy: <= +/- 200 PPB (Parts per Billion) [after 15 mins power-on] Power Supply Stability: <= 2 PPB [VCC +/- 5%] Load Stability: <= 2 PPB [Load +/- 5%] Aging: <= +/- 0.5 PPB/Day, <= +/- 100 PPB/1st year, <= +/- 0.4 PPM/10 Years [after 30 days power-on] Temp Stability: <= +/- 10 PPB Short term Stability: <=0.05 PPB/second [after 1 hour power-on] Turn-On Time: <=5 mins Supply Voltage: +5.0V +/- 5%Working Current: <=600 mA beginning, = 4.5V, V(OL): <= 0.5VRise/Fall Time: <= 6nsDuty Cycle: 45/55% Voltage Control Range: 2.0V +/- 2.0VTuning Range: -2.0V (0Vc)=-1.0ppm, -0.2V (2.0Vc)=+0.2ppm, +1.0V (4.0Vc)=+2.0ppm Phase Noise: -80dBc/Hz@1Hz, -120dBc/Hz@10Hz, -140dBc/Hz@100Hz, -145dBc/Hz@1kHz, -150dBc/Hz@10kHz Working Temp Range: 0 deg C to +75 deg COperating Temp Range: -40 deg C to +85 deg CStorage Temp Range: -55 deg C to 105 deg C Size: 25.4mm x 25.4mm x 12.5mmPin Cladding: Nickel Plating + Immersion TinROHS: Network Exemption Pin 1: Output Pin 2: GND Pin 3: V(CONTROL) [2.0VDC +/- 2.0VDC] Pin 4: N/C Pin 5: VCC [5.0VDC] Makes EXCELLENT Equipment Calibration Reference Oscillator
