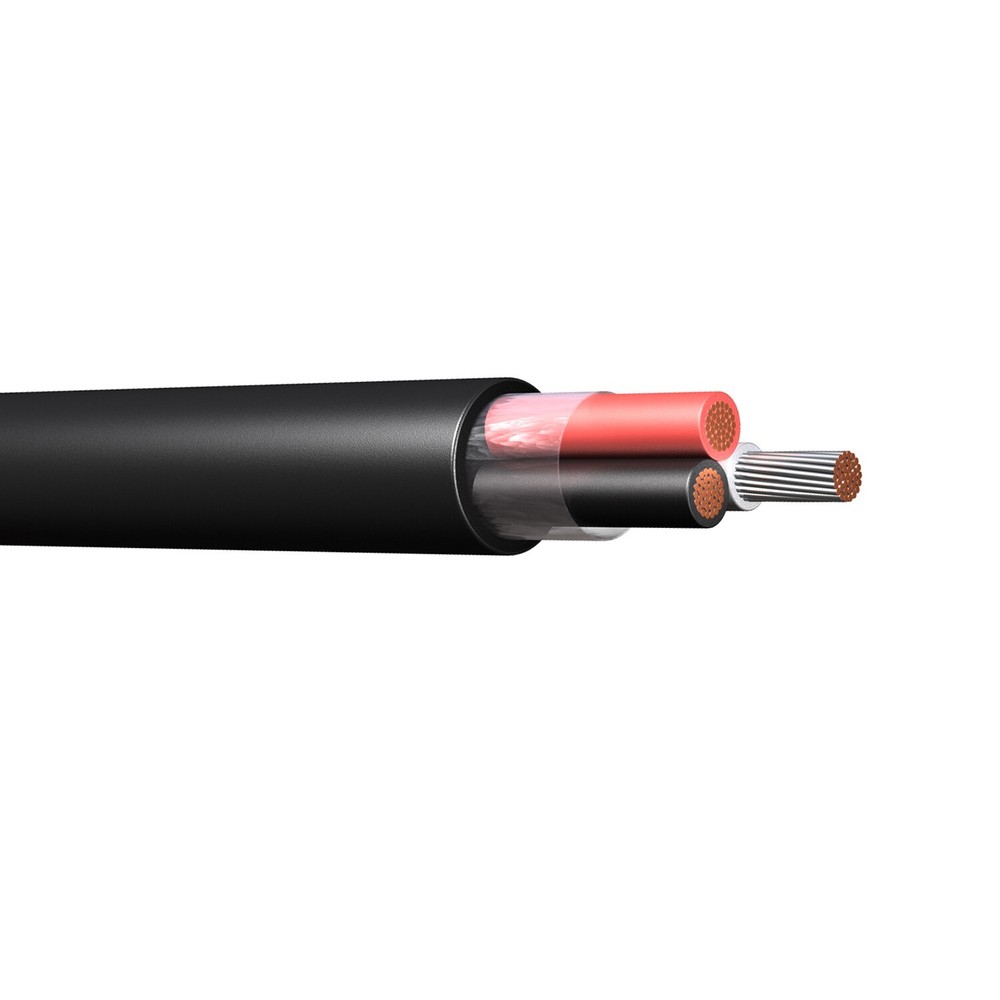

10/3 Type P Marine Offshore Power Cable IEEE 1580 Black Jacket 600V/1000V
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Nassau |
| Sheath Color | Black |
| Wire Style | Stranded |
| Voltage | 1000 V |
| Current Rating | 41 A |
| Conductor Material | Tinned Copper |
| Country/Region Of Manufacture | United States |
| Resistance Properties | Abrasion Resistant |
| Wire Gauge | 10 AWG (2.6 mm) |
HomeView All ListingsStore PoliciesNewsletterFeedbackContact Us Store Categories Aluminum URD Cable Aluminum Service Drop Cable Aluminum XHHW-2 Wire Aluminum XLP USE-2 Aluminum SER Alpha Wire Belden Cable Bus Drop Cable Copper SER Copper XHHW-2 Wire Copper XLP USE-2 Diesel Locomotive Cable Festoon Cable Fire Alarm Cable High Temperature Wire Jumper Cable Type G & GG-C Thermostat Cable SOOW Power Cable NM-B Wire Security Fire Alarm Cable SIS Switchboard Wire Solar Photovoltaic PV Wire Stage Lighting Cable Submersible Pump Cable THHN THWN-2 Wire Tray Cable Type W Power Cable UF-B Cable Welding Cable 10/3 Type P Marine Offshore Power Cable IEEE 1580 Black Jacket 600V/1000V Click Thumbnails to Enlarge DESCRIPTION • 10/3 Type P Cable is Primarily designed for power, control, signal, and instrumentation applications for offshore land drilling rigs, marine vessels, and offshore production facilities. CONDUCTOR • Soft Annealed Flexible Stranded Tinned Copper per IEEE 1580 INSULATION • Flame Retardant Cross-linked Polyolefin Insulation JACKET • Thermosetting Neoprene STANDARDS • ABS, DNV Approved • ETL, UL Listed • IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011) • Type P Insulation: IEEE 1580, UL 1309 TYPE X110 • Type N Sheath: IEEE 1580, UL 1309 • Flame Retardant: IEEE 1202, IEC 60332‐3 CAT. A • Fire Resistant: IEC 60331‐1/2/21 (OPTIONAL) • Cold Bend/Impact: CSA 22.2 No. 03 (-40°C/-35°C) • Oil, Abrasion, Moisture, Petrochemical & Sunlight Resistant PRODUCT SPECIFICATIONS Size AWG 10 Number of Conductors 3 Overall Diameter (inches) 0.504 Ampacity at 100°C 41 Amps Weight (Lbs/1000ft) 190 Shipping • Need the wire fast? Ask about our Expedited Shipping Service to get it to you on time. • Signature & Delivery Appointment for required for all LTL Truck delivery Shipments (Weight Over 130 Lbs). • Note: eBay's delivery dates are only estimates; actual delivery dates may be faster or longer, please message us for exact delivery times.*** Payment & Returns ***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping*** About Nassau National Cable (disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only) We have been in business for over 60 years and are family owned and operated. We have been on the inc 5000 in 2014, 2015, and 2016 as one of the fastest growing privately owned companies. We look forward to serving you. Some of our customers are shown below: Home View All Listings Store Policies Feedback Contact Us
