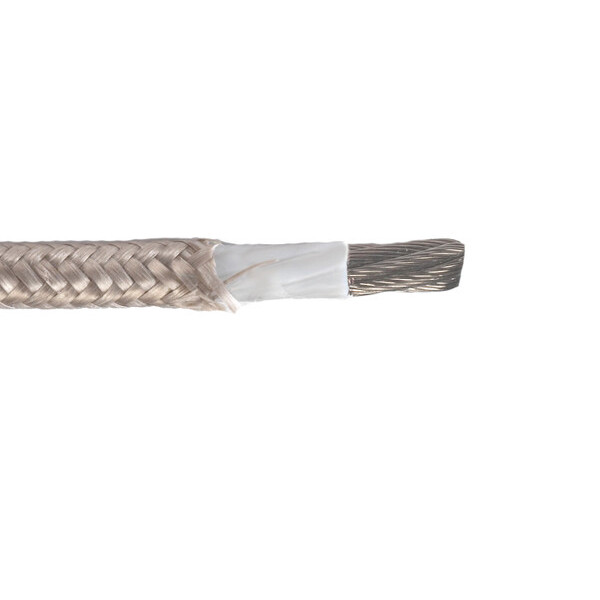

10 AWG 105 Strands Type MG 450°C High Temperature Lead Wire 600V
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Nassau |
| Sheath Color | Natural |
| Wire Style | Stranded |
| Voltage | 600 V |
| Stranding (Number Of Wires) | 105 |
| Country/Region Of Manufacture | United States |
| Resistance Properties | Flame Retardant |
| Wire Gauge | 10 AWG (2.6 mm) |
HomeView All ListingsStore PoliciesNewsletterFeedbackContact Us Store CategoriesAluminum URD Cable Aluminum Service Drop Cable Aluminum XHHW-2 Wire Aluminum XLP USE-2 Aluminum SER Alpha Wire Belden Cable Bus Drop Cable Copper SER Copper XHHW-2 Wire Copper XLP USE-2 Diesel Locomotive Cable Festoon Cable Fire Alarm Cable High Temperature Wire Jumper Cable Type G & GG-C Thermostat Cable SOOW Power Cable NM-B Wire Security Fire Alarm Cable SIS Switchboard Wire Solar Photovoltaic PV Wire Stage Lighting Cable Submersible Pump Cable THHN THWN-2 Wire Tray Cable Type W Power Cable UF-B Cable Welding Cable 10 AWG 105 Strands Type MG 450°C High Temperature Lead Wire 600V Click Thumbnails to Enlarge APPLICATION • 10 AWG 450°C High Temperature Wire Lead Wire is suitable for use in internal wiring of domestic, commercial and industrial heating; kilns; cooking equipment and control and power circuits, when high temperatures and abrasive environments are present. It is suitable for use in applications up to 450C per UL (or 538C non-UL) and 600 volts. CONDUCTOR • Flexible Stranded Soft Drawn 27% Nickel Coated Copper Conductors per ASTM B355, B8, B173 and B174 INSULATION • Two fiberglass reinforced mica tapes JACKET • Braided fiberglass impregnated with moisture, heat and flame resistant compound STANDARDS • UL 5107 450°C 600V • CSA AWM Class 1 Group A/B FT1 PRODUCT SPECIFICATIONS Size AWG 10 Number of Strands 105 Mica Tape Thickness (inches) 0.030 Fiberglass Braid Thickness (inches) 0.015 Overall Diameter (inches) 0.208 Weight (lbs/1000ft) 83 HAVE A LARGE ORDER OVER $5000? ASK US IF WE CAN DO BETTER ON THE PRICE. Shipping ***Free shipping on most orders. Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.*** Payment & Returns ***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping*** About Nassau National Cable (disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only) We have been in business for over 60 years and are family owned and operated. We have been on the inc 5000 in 2014, 2015, and 2016 as one of the fastest growing privately owned companies. We look forward to serving you. Some of our customers are shown below: Home View All Listings Store Policies Feedback Contact Us
