10 Cherry Micro Switches Microswitch 15A 3/4 HP 125V 0E1324EC Normally Closed
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Country/Region Of Manufacture | Mexico |
| Switch Action | Momentary |
| Model | E13 |
| Switch Type | Microswitch |
| Amperage | 15A |
| Coil Voltage | 125V 250V |
| Type | Button |
| MPN | 0E1324EC |
| Operation | Normally Closed |
| Other Part Number | P0E1324EC |
| Terminals | 1/4" Quick Connect |
| Certifications | UL CSA |
| Other Names | Micro Switches |
| SELLER LOCATION | USA |
| Brand | Cherry |
| Termination Type | Quick Connect |

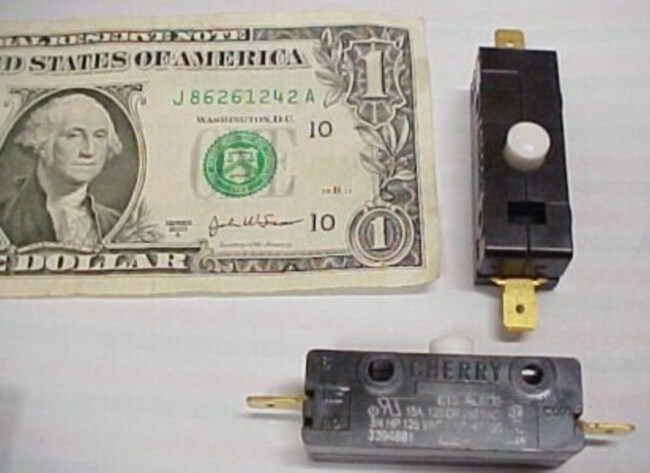

1698UD4E.36 New Cherry 15 Amp, 125 Volt / 250 Volt, Normally Closed, Button Type MicroSwitches, Part Number 0E1324EC, Item Number P0E1324EC. Each bid quantity is for a Lot of Ten (10) Switches. You may bid / buy any number of lots, up to the total quantity available above. This lot of switches was purchased from an industrial liquidator earlier this year, and they were brand new in the original factory boxes. We repackaged them into 4-mil Ziplok bags for resale. These are nice sturdy switches for a multitude of applications. They are Normally Closed. That is to say, current flows through them continuously until the button is pressed, then it stops. Sort of like the light button switch on your refrigerator door, or the switch on your car door that operates the dome light. Press the button and the light goes off, electric motor stops running, etc. Written on the switch: CHERRY E13 MEXICO (Underwriters Recognized certification mark) 15A 125 or 250 VAC (CSA certification mark) 3/4 HP 125 VAC, 1-1/2 HP 250 VAC 3394881 FSP 3-46 According to the calipers: Overall length: 2.655 Length (excluding terminals): 1.836" Width: .648" Overall height: .836" Height (excluding button): .640" Mounting holes: #6 machine screws, spaced 1.000" OC (on centers) According to the manufacturer: E13 SERIES Specifications Temperature Rating: 105°C Flammability Rating: UL94HB Materials: -- Case: General Purpose Phenolic -- Actuating Button: Thermoplastic Nylon -- Common Terminals: Brass -- Moving Blade: Brass -- Spring: Stainless Steel -- Contacts: Silver-Cadmium Oxide UL1054 Rating: 15A, 125/250VAC; 3/4HP, 125VAC 1-1/2HP, 250VAC; 2A 48VDC Terminals: Standard 0.250" x 0.032" (6.35mm x 0.81mm) Mounting -- Recommended mounting screw: #6-32 round head -- Recommended torque on screw: 6 inch-lbs. max -- Recommended maximum torque for ferrule: 20 inch pounds Maximum Operating Force (g): 425 Max. Pre-Travel inches (mm): 0.050 (1.27) Operating Point inches (mm): 0.285 +/-0.020 (7.24 +/-0.51) Min. Over-Travel inches (mm): 0.100 (2.54) Max. Movement Differential inches (mm): 0.015 (0.38)
