10′ Holland Shielding Systems EMI/RFI EMC-IP Gasket Knitted Mesh w Neoprene Foam
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| MPN | G500-6 |
| Type | EMC-IP Gasket |
| Model | 1230 |
| Bundle Description | EMI/RFI Gasket |
| Country/Region Of Manufacture | USA |
| UPC | Does Not Apply |
| Custom Field 1 | EMI/RFI Gasket |

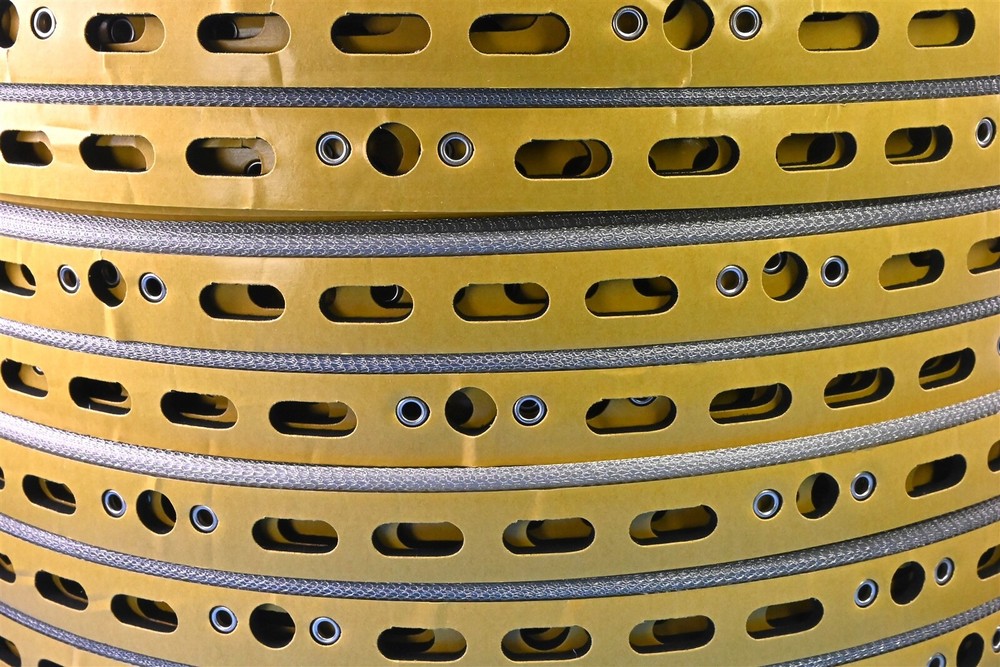

10' Holland Shielding Systems EMC-IP Gasket Knitted Mesh w/ Neoprene Foam EMC-IP Gasket is cut at 10’ lengths, however if you purchase multiple quantities, we’ll make only one cut. For example, if you purchase quantity “3” you’ll receive one 30’ piece. 10' EMC-IP gasket with controlled compression stops for EMI and EMP protection This gasket is used for screwed connections for EMI and EMP protection. The water seal is made out of flame-retardant neoprene foam. In the water seal are not only holes for bolts but also holes to make the foam easier to compress. This makes it so that it can be used to screw thinner plates together without bending. Around the bolt holes are compression stops to prevent the gasket overstretches. This makes it possible so that with a torque control the gasket is under exactly the right stress for water and EMI sealing during mounting. The compression stops are made of metal. The core of the knitted mesh material is Neoprene foam (base material) The base material of the gasket is made of neoprene that can be ordered in different widths and lengths. The thickness of the foam 4mm The width is 25mm and 4mm thickness with compression stops 150mm Knitted wire mesh EMI/RFI gasket combined with water sealBenefitsHigh attenuation for lower frequencies (low-frequency magnetic shielding)Suitable for use under extreme conditions (military applications)Wear-resistantNot susceptible to corrosion Total Parts will guarantee you're totally happy with your purchase! 14 Day Return Policy if merchandise is in unused condition.We promise to ship your merchandise fast!We promise to send you tracking information immediately when shipped!We promise to respond to your questions and concerns!If you have any questions, concerns or suggestions please contact us through the eBay messaging system.Please take a moment to see our current specials on eBay our other eBay listings. Powered by SixBit's eCommerce Solution
