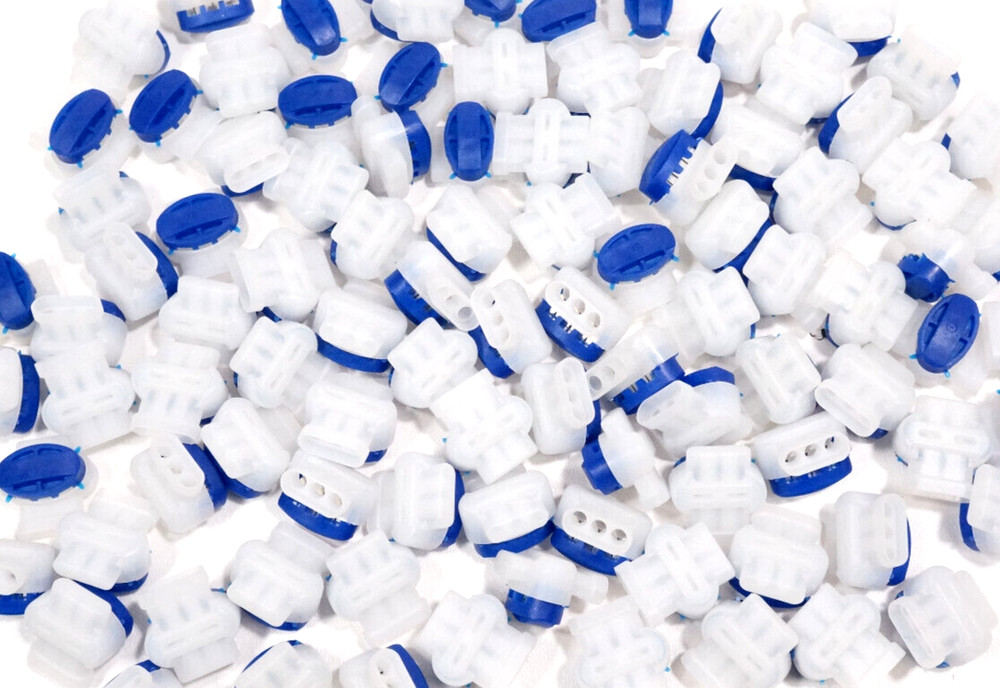

100pc 3 Wire Connector Grease Filled Moisture Resistant Pigtail Splice 14-22 AWG
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Sealed |
| Type | Connectors |
| Current Type | AC or DC |
| Body Material | Plastic |
| Termination Type | Push On |
| MPN | 314 |
| Compatible Mounting Type | Wire |
100pc 2 or 3 Wire Connector Pigtail Splice Description AWESOME Price on a BRAND NEW Brand New Package of 100 self-stripping grease filled wire connectors. These connectors are self-stripping. Simply insert 2 or 3 wires and push the blue plunger. Fits a wide range of wires listed below. Any of the wire sizes can be inserted into any of the 3 wire slots. For use with copper wires or tin-plated copper wires, not for use with aluminum wires. How To Crimp: 1. Do not remove or strip the insulation from the wires. 2. Insert 2 or 3 wires until they reach the back of the connector. Make sure only 1 wire is inserted into 1 slot. Mutiple wires cannot be inserted into 1 slot. 3. Using the 3M E-9BM tool, or slip joint pliers, or channel locks or a similar tool, press the blue plunger until the edge of the blue plunger is nearly flush with the edge of the white housing. Features: Each Connector Slot Accommodates Many Wire Types Including Type T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT with a Maximum Insulation Diameter of 0.15 inches. 22 Gauge Solid or Stranded, 3AMPS Suggested Maximum 20 Gauge Solid or Stranded, 5AMPS Suggested Maximum 18 Gauge Solid or Stranded, 7AMPS Suggested Maximum 16 Gauge Solid or Stranded, 10AMPS Suggested Maximum 14 Gauge Solid or Stranded, 15AMPS Suggested Maximum
