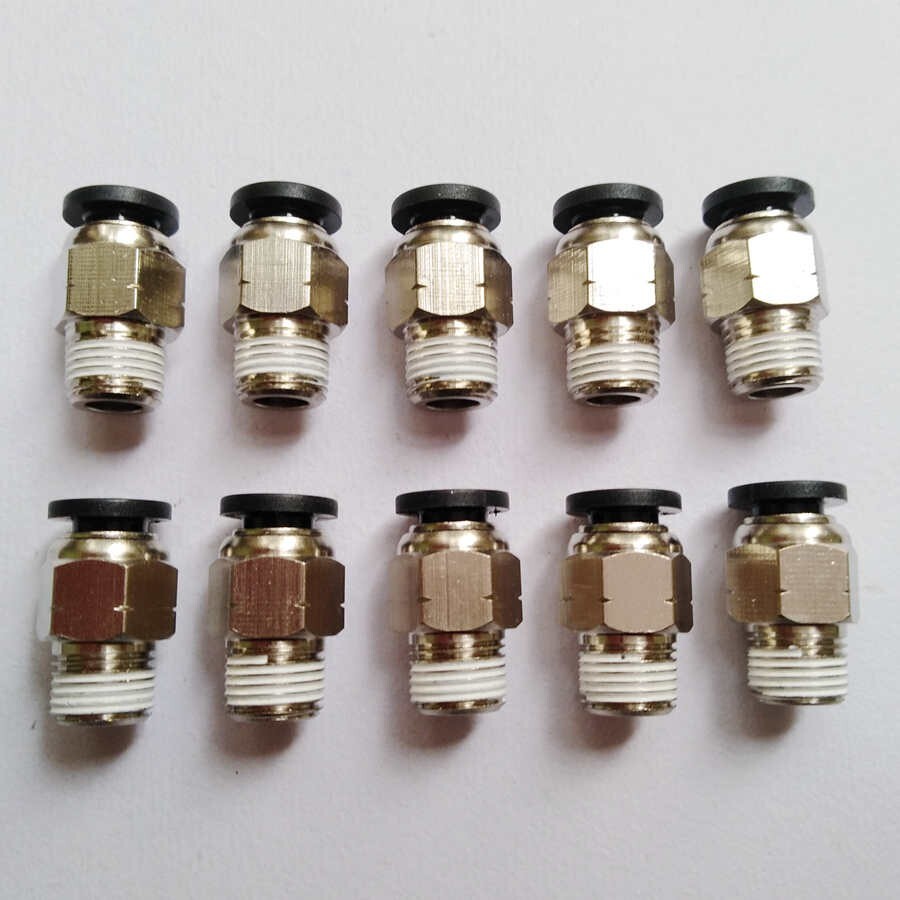

10X Male Straight Connector Tube OD 1/4″(6mm) X NPT 1/8 Air Push In Fitting A394
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Unbranded |
| MPN | Does not apply |
Features & Specifications:♦One-Touch tube fittings are used in pneumatics piping. ♦Nickel-Plated brass body ensures Anti-Corrosion and Anti-Contarmination. ♦NPT threads are pre-coated sealant. ♦All cylindrical threads are standard with O-Ring seals. ♦Fluid: Air,vacuum. ♦Operating pressure: 0-1.0MPa / 0-150PSI. ♦Negative pressure: -100KPa / -29.5 in.Hg. ♦Max pressure: 1.5Mpa. ♦Operating temperature: 0-60 °C / 32°F -140°F.♦Applicable tube: Polyurethane (PU) and nylon. ♦Tube OD: 1/4''.(6MM)♦Tubing size tolerance requirement: Max ± 0.1 mm (± 0.004'').♦American standard taper pipe thread: 1/8" NPT. Structure: ♦Metal body: Nickel-plated brass. ♦Plastic body: PBT(Polybutylene terephthalate). ♦Release button: POM(Poly oxy methylene copolymer). ♦Grip ring / Lock claws: Stainless steel. ♦O-ring:NBR (Buna-N). How to install the tube: When installing the tube into the quick connecting tube fitting, please use the tube cutter to make a straight 90 degrees cut. Tube should be pushed into the fitting completely past the packing, allowing the lock claws to fully retain the tube in place. If this is not done, leakage may occur. To remove the tube, press the sleeve to recess the lock claws, then pull out the tube. Warning: Never use for fluids other than air. Avoid external impact such as bending, twisting and drawing on fittings. Package included:10x Pneumatic male straight connector push in fitting Shipping 1. We only ship within USA. 2. Item will be shipped out within 48 hours upon receipt of payment, and it takes about 4-7 BUSINESS DAYS for delivery 3. Please make sure your address in eBay is correct. If you want to change the address please E-mail us right after you pay for the item.
