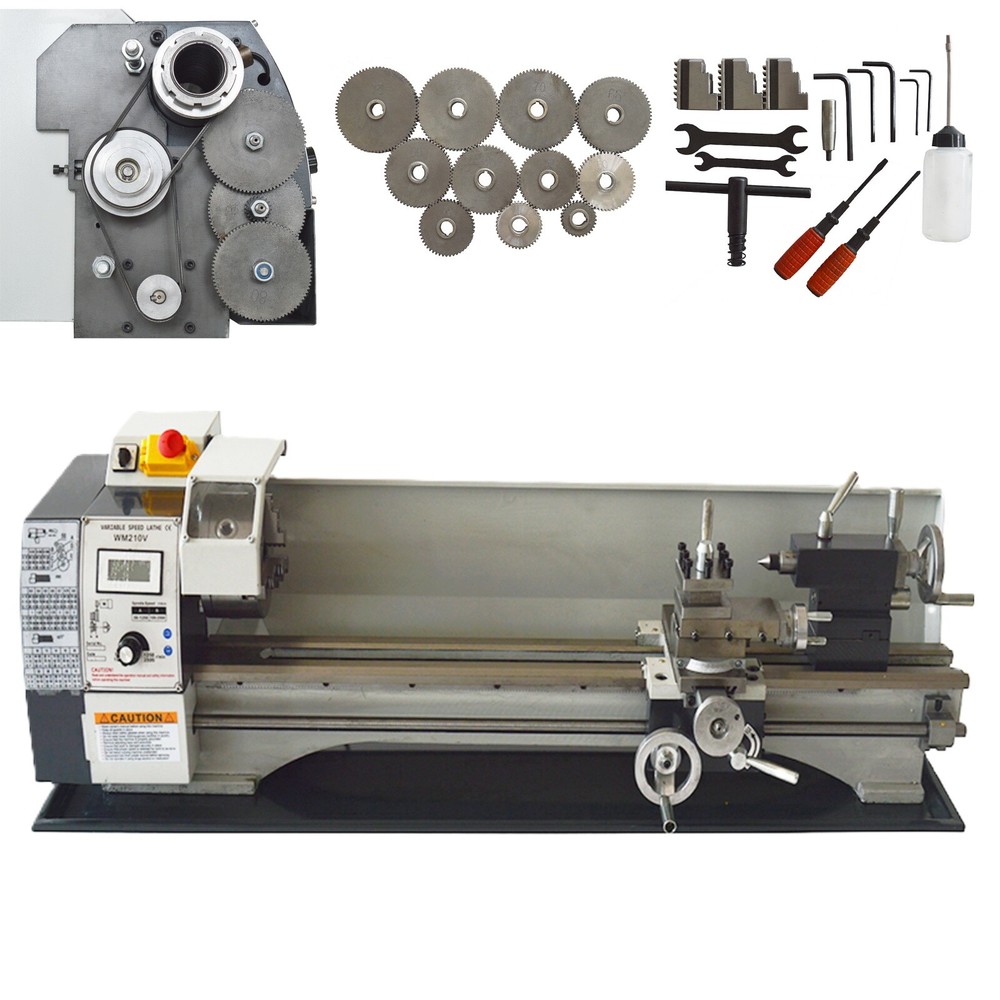

110V WM210V Inch Precision Instrument Variable Speed Metal Bench Lathe 1.1KW

USD 1463.58 USD

SKU: MDypjejz

Brand: Maisutseb®

MPN: m028331

GTIN: 198462639040

Condition: New

Tags: 0.01mm 0.1mm-0.2mm 1.50"(38mm) 10-44T.P.I 100-210V 1100W 110V brushless motor 19.7"(500mm) 198462639040 2.16"(55mm) 2.36"(60mm) 2.95"(75mm) 23.6"(600mm) 3.94"(100mm) 4.92"(125mm) 5.51"(140mm) 50-2500rpm 8.3"(210mm) AC110V 50-60Hz Horizontal four-station m028331 Maisutseb® Metal Lathe MT2 MT5

Categories: Heavy Equipment, Parts & Attachments

Specifications

Maximum Stroke Of Middle Plate	2.95"(75mm)
MPN	m028331
Diameter Of Chuck	4.92"(125mm)
Tail Frame Taper	MT2
Voltage	AC110V 50/60Hz
Spindle Rotation Speed	50-2500rpm
Machine Type	Metal Lathe
Precision Of The Spindle	0.01mm
Rotary Diameter Of Tool Rest	5.51"(140mm)
Spindle Bore	1.50"(38mm)
Range Of Inch Threads(optional Accessory )	10-44T.P.I
Swing Over Bed	8.3"(210mm)
Spindle Taper	MT5
Width Of Lathe Bed	3.94"(100mm)
Power	1100W
Maximum Stroke Of Tool Rest Plate	2.16"(55mm)
Knife Rest Labour	Horizontal four-station
Maximum Stroke Of Tailstock Sleeve	2.36"(60mm)
Brand	Maisutseb®
Motor	110V brushless motor
Maximum Stroke Of Bottom Plate	19.7"(500mm)
Automatic Feed Range	0.1mm-0.2mm
Length Of Center	23.6"(600mm)
UPC	198462639040

WM210V lathe 1 Chuck Jaw 3 The Screwdriver 2. Width of lathe bed: 3.94"(100mm). Lathe sizes: 38.2" 11.8" 13.4"(97 30 34cm). Note: We provide optional parts for this lathe. Motor: 110V brushless motor.
