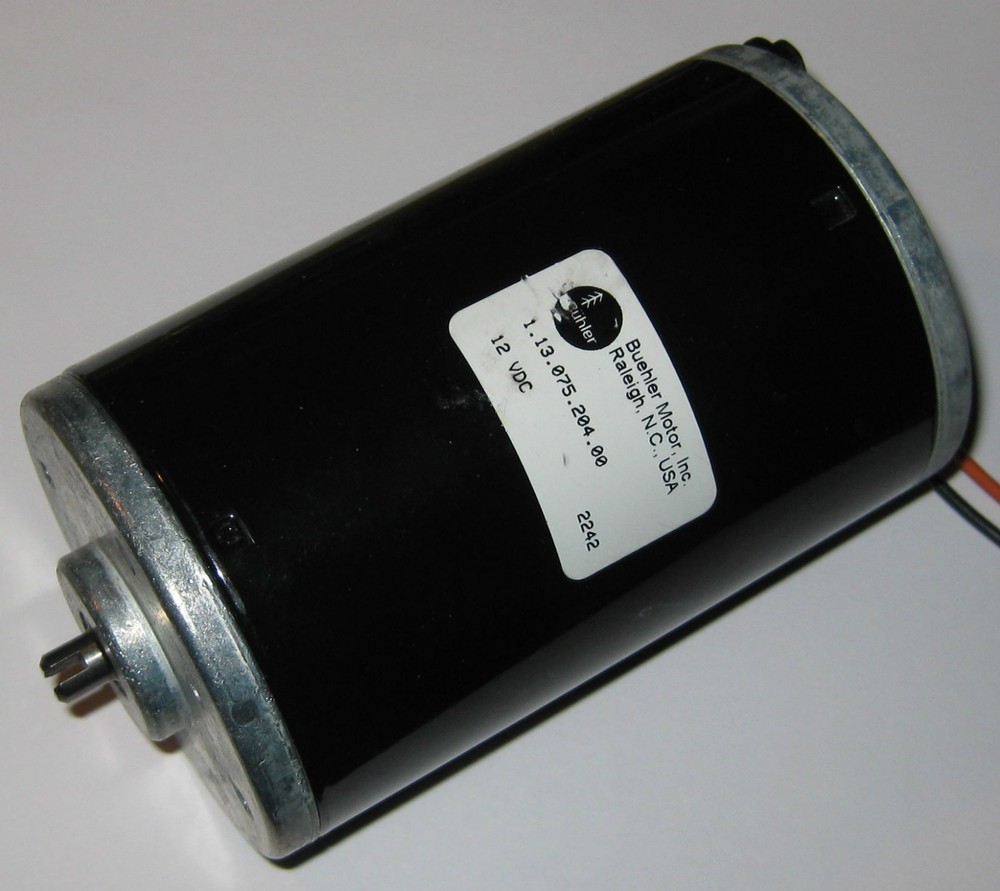

12 VDC Electric Motor – 115 Watt Wind / Hydro Generator – 6000 RPM – 160 A Stall
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 15.3 A |
| AC Frequency Rating | Not Applicable |
| MPN | 1.13.075.204.00 |
| Actual Rated Input Voltage | 12 V |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Straight |
| Nominal Rated Input Voltage | 12 V |
| Model | 1.13.075.204.00 |
| Starting/Locked Rotor Torque | 431 oz-in |
| Reversible/Non-Reversible | Reversible |
| AC Motor Type | Not Applicable |
| Rated/Full-Load Torque | 28.3 oz-in |
| Shaft Diameter | 5/16 in |
| Base RPM | 6000 |
| Brand | Buehler |
| Rated Load (HP) | 0.15 HP |
| AC Phase | Not Applicable |
12 VDC Electric Motor - 115 Watt Wind / Hydro Generator - 6000 RPM - 160 A Stall Electric DC motorWorks great as a generator too Operates on 1 - 12 VDC (12 VDC Nominal) .08 Ohm terminal - terminal resistance No load speed of 6,000 RPM @ 12 VDC - 4.8 Amperes No load speed of 500 RPM @ 1 VDC - 2 Amperes Nominal load torque: 2,040 g-cm (20 Ncm / 28.3 oz-in Nominal load speed: 5,600 RPM Nominal load current: 15.3 A Nominal load power output: 115 Watts Torque constant: 1.9 Ncm / ASpeed regulation: 19.7 RPM / NcmStall current at 12 VDC: 160 A Stall torque: 31,000 g-cm (304 Ncm / 431 oz-in) Generator voltage output: 12 VDC with 6,200 RPM input Intermittent duty (be aware of temperature to prevent overheating)Slotted shaft dimensions: 9 mm L x 7.93 mm Diameter (works with many 8 mm couplings as shown in pictures) Dimensions (not including shaft): 122 mm long x 76 mm diameter Ideal for robotics, generator applications, projects requiring high power motor/ generator, science fairs, school projects, hobbies, etc.Constructed using powerful permanent magnets Sealed ball bearings to ensure long life Weight: 4 lb 1 oz (1840 g) 17" long flexible power leads Features 2 threaded (10-32) mounting holes on 58.7 mm centers
