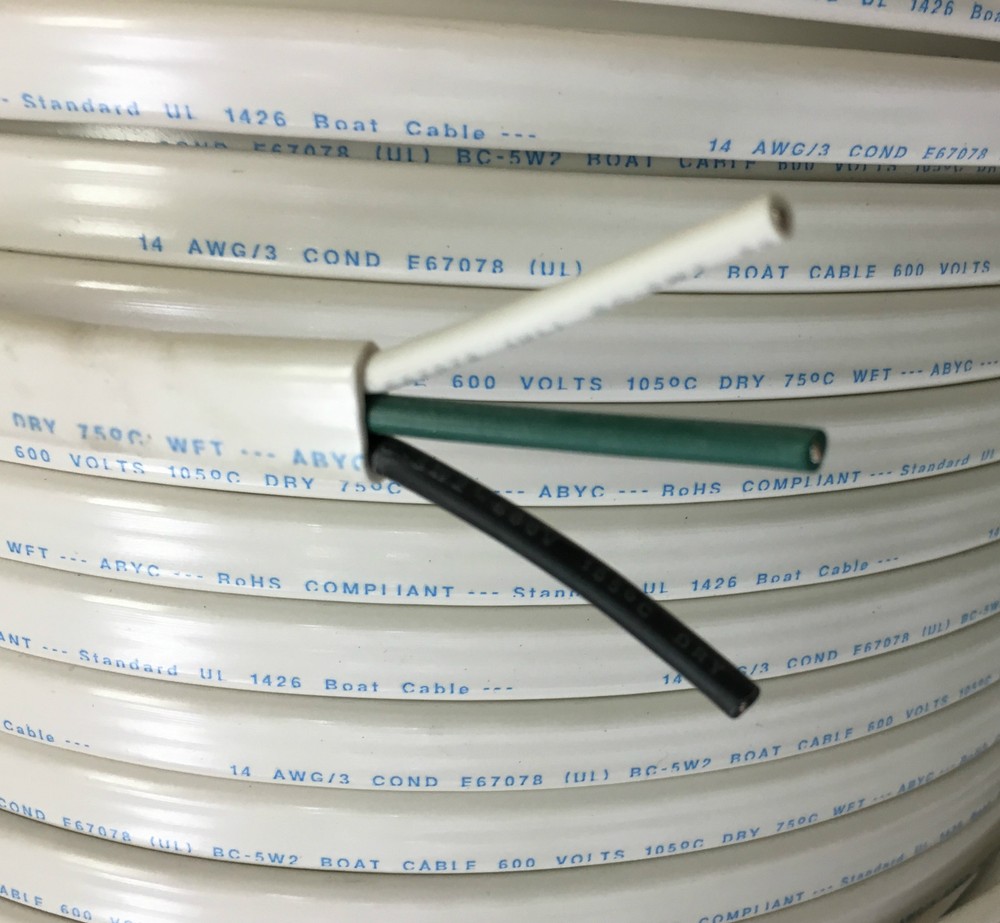

14/3 AWG Gauge Marine Grade Wire AC, Boat Cable, Tinned Copper, Flat Triplex
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | United States |
| MPN | BC14/3 |
| Brand | Battery Cables USA |
| Conductor Colors | Black, White, Green |
| Conductor Material | Copper (tin plated) |
| Structural Build | Flexible |
| Sheath Color | White |
14 AWG 3 Conductor Wire, Marine Grade Boat Cable with White overall jacket with Black, White and Green conductors inside used for wiring AC applications. This wire is UL1426 listed and exceeds the requirements of ABYC and the USCG (US Coast Guard) for installation on boats as the flexible stranding and insulation are designed to withstand the harsh marine environment. Color Code: Black, White and Green Conductors ( AC Color Code with Black for Hot, White for Neutral and Green for Ground) Copper stranding is tin plated to resist corrosion, Flexible Type III, Class K stranding Meets all applicable boat wiring regulations from ABYC and US Cost Guard for use on boats Rated 600 Volts Max with 105C Dry and 75C Wet (BC5-W2) temperature ratings and will remain flexible in extreme cold weather Jacket and insulation are resistant to oil, gas, salt water, battery acid, heat, abrasion and sunlight Specifications for Flat Triplex Marine Wire: Wire Size (AWG) Dimensions Weight/FT Amps Max* 16/3 3/16" x 15/32" .075 lbs 25 14/3 7/32" x 1/2" .096 lb 35 12/3 7/32" x 17/32" .125 lbs 45 10/3 1/4" x 21/32" .186 lbs 60 8/3 3/8" x 1" .287 lbs 80 6/3 7/16" x 1-3/16" .470 ls 120 *Inside of engine space de-rate amps by 15% due to extra heat
