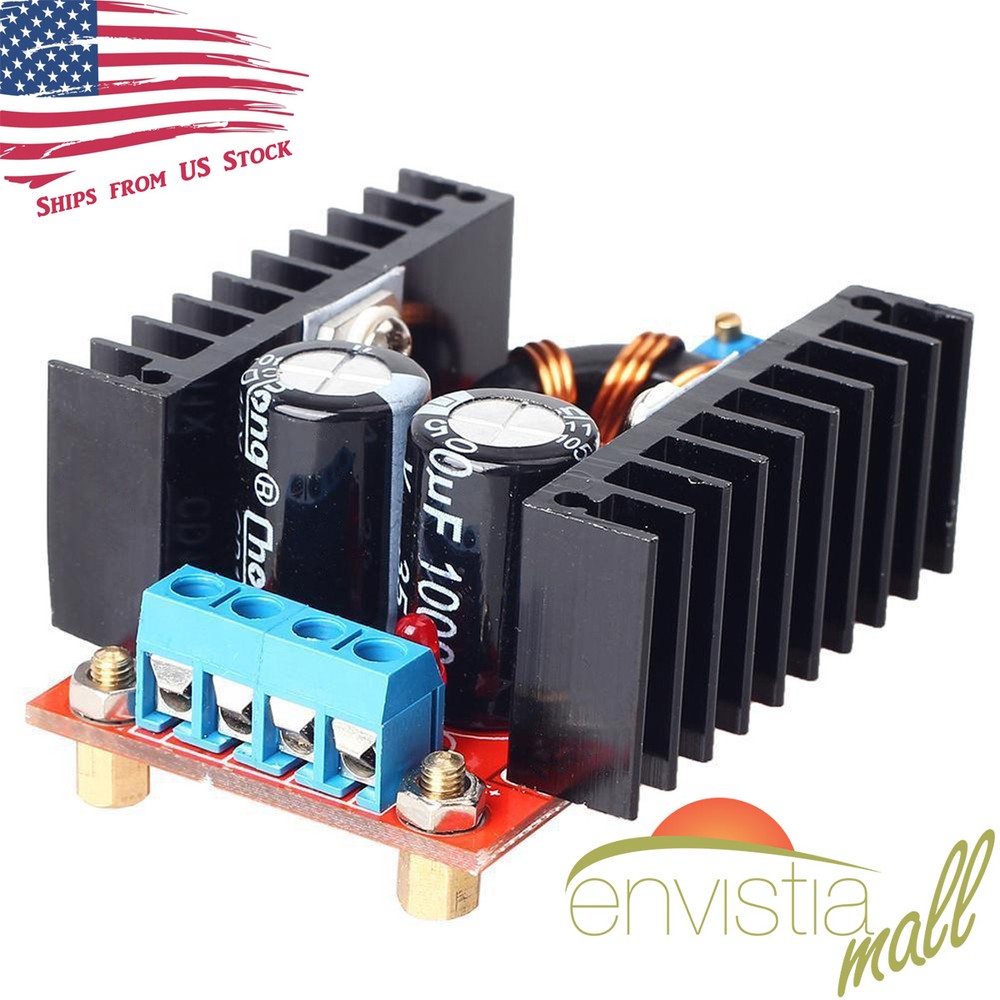

150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger US
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Output Voltage Range | 12V to 35V Adjustable |
| MPN | 15W Boost Converter |
| Input Current | 10 Amps Maximum |
| Current Conversion | DC to DC |
| Device Function | Voltage Converter |
| Nominal Voltage Rating (DC) | 10 V to 32 V |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Product Type | Power Converter |
| Country/Region Of Manufacture | China |
| Plug Type | Terminal Block |
| Maximum Operating Temperature | 85 °C (185 °F) |
| Maximum Continuous Output Current | 6 Amps |
| Conversion Direction | Step-Up |
| Maximum Peak Output Current | 6 Amps |
| Nominal Power Rating | 100 W |
| Nominal Current Rating | 6 A |
| Output Voltage Rating (DC) | 12 V to 35 V |
| Brand | Envistia |
| Inrush Current Rating | 6 A |
| Mounting Style | Chassis Mount |
| Input Voltage Range | 10V to 32V |
| Installation Area | Indoor |
150W DC-DC 10-32V Input to 12-35V Output 6A Step Up Boost Converter Power Supply Voltage Charger Module This versatile DC-DC boost power supply / step-up converter module steps up any input voltage from 10V to 32V to any output voltage from 12V to 35V at up to 150W output power (100W without forced air cooling) and 6A current. It is especially useful for automotive 12V applications, where standard 12V battery power can be boosted to 19V for use as a laptop computer power supply, or to 18V or 24V for other applications requiring higher voltages. Module Specifications:Type: Non-isolated step-up power conversion module Input voltage: 10-32V on IN+ and IN- screw terminalsInput Current: 10A (MAX)Output Voltage: 12V-35V Continuously adjustable on OUT+ and OUT- screw terminals (Output voltage must be greater than input voltage)Output Voltage Adjustment: Screwdriver-adjustable multi-turn board-mounted potentiometerOutput Current: 6A Maximum (Also see the maximum Output Power below, at higher output voltages the current must be limited so you do not exceed the maximum power rating) Output Power: Natural cooling 100W (MAX), with forced air 150W (MAX) Conversion efficiency: 94% (Measured with input = 16V, output = 19V 2.5A)Operating temperature: Industrial grade (-40C to + 85C) If ambient temperature exceeds 40 degrees, derate power or use a cooling fanTemperature rise at full power: 45C No-load current: Typical 25mA Short circuit protection: None, please use caution to protect module from overcurrent Input reverse polarity protection: None, please use diode in series with the input to protect against input reverse polarityIndicators: On-board LED illuminates when voltage is applied to the moduleSize : 65mm x 46.5mm (including heatsinks) x 23mm (2.56in x 1.8in x 0.9in)Weight: 64 grams Applications:DIY adjustable output vehicle power supply. Provide 12V input, the output voltage can be continuously adjusted from 12V to 35V (output voltage cannot be lower than the input voltage).Universal car laptop power supply. Provide 12V input, output voltage is adjustable to your laptop's input voltage level. Can easily drive dual-core or quad-core notebooks at 19V and up to 6A output current.Boost Charger, to convert your car's 12V power to greater than 12V, such as 18V or 24VPower supply for your electronic devices, as long as the voltage is adjusted to the voltage and does not exceed the module's rated current. Note: Set the output voltage to the desired level by adjusting the onboard potentiometer using a voltmeter before connecting it to your equipment or load. Package Includes:1 piece 150W 10-32V In 12-35V Out 6A Step Up Boost Converter Power Supply ModuleOnline installation and operation instructions Get it faster! Ships in 1 business day from our Colorado office for quick delivery. Expand your DIY and Arduino-compatible development with these other development boards, shields and modules from Envistia Mall. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
