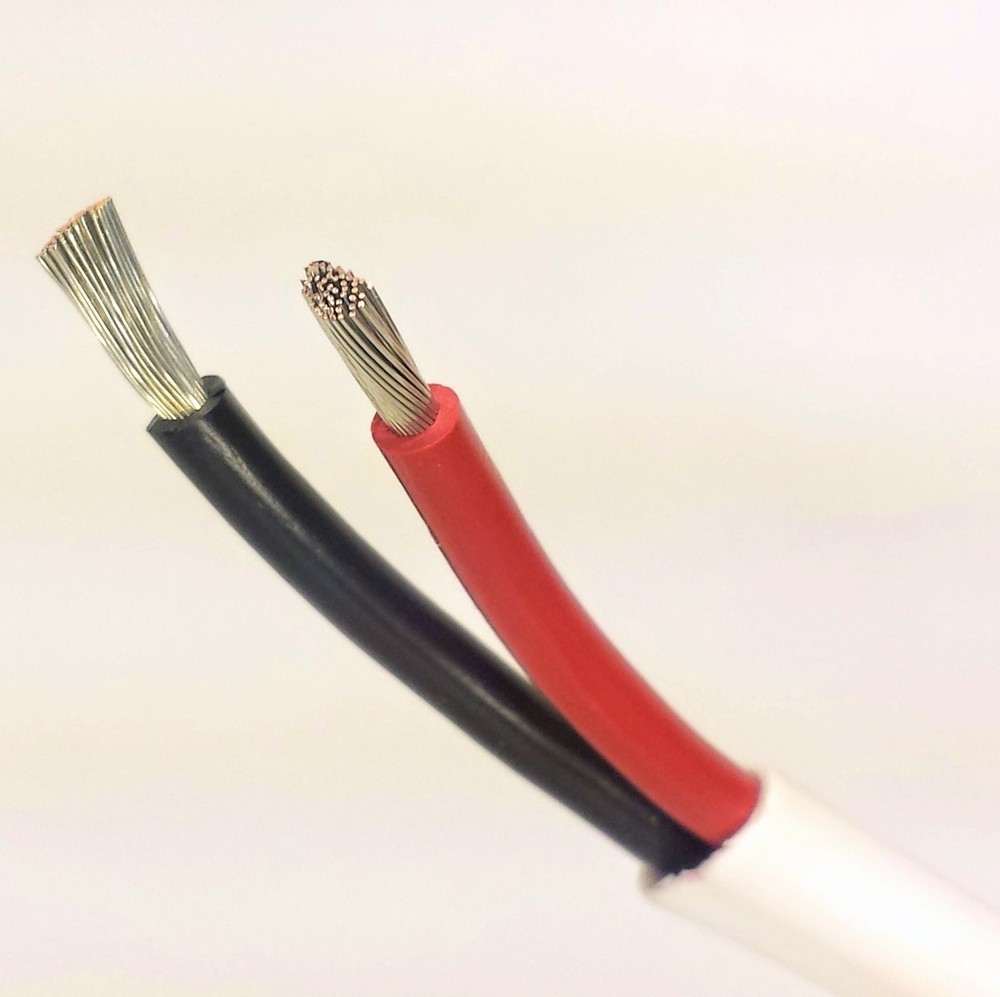

16/2 AWG Gauge Marine Grade Wire, Boat Cable, Tinned Copper, Flat Black/Red
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Rating | 25 A (25 Amps) |
| Sheath Color | White |
| MPN | BC16/2 |
| Country/Region Of Manufacture | United States |
| Item Length | Your Choice |
| Brand | Battery Cables USA |
| Application | Audio/Video |
| Stranding (Number Of Wires) | 26 Strands (Type III) |
| Wire Style | Stranded |
| Resistance Properties | Abrasion Resistant |
| Wire Gauge | 16 AWG |
| Voltage | 0-600V |
16 AWG 2 Conductor Marine Tinned Copper Wire with White overall jacket with Black and Red conductors inside used for wiring DC applications. This wire is UL1426 listed and exceeds the requirements of ABYC and the USCG (US Coast Guard) for installation on boats (marine grade boat cable). Very flexible and designed to withstand the harsh marine environment.Color Code: Black and Red Conductors ( DC Color Code with Red for Positive and Black for Negative)Copper stranding is tin plated to resist corrosion, Flexible Type III, Class K strandingMeets all applicable boat wiring regulations from ABYC and US Cost Guard for use on boatsRated 600 Volts Max with 105C Dry and 75C Wet (BC5-W2) temperature ratings and will remain flexible in extreme cold weatherJacket and insulation are resistant to oil, gas, salt water, battery acid, heat, abrasion and sunlightExcellent for use as speaker wire with it's flexible copper stranding and the tin plating to keep away corrosion! Specifications for Flat Duplex Marine Wire: Wire Size (AWG) Dimensions Weight/FT Amps Max* 18/2 3/16" x 9/32" .049 lbs 20 16/2 3/16" x 5/16" .051 lbs 25 14/2 7/32" x 11/32" .065 lbs 35 12/2 7/32" x 3/8" .082 lbs 45 10/2 1/4" x 15/32" .128 lbs 60 8/2 11/32" x 5/8" .230 lbs 80 6/2 13/32" x 3/4" .364 lbs 120 *Inside of engine space de-rate amps by 15% due to extra heat
