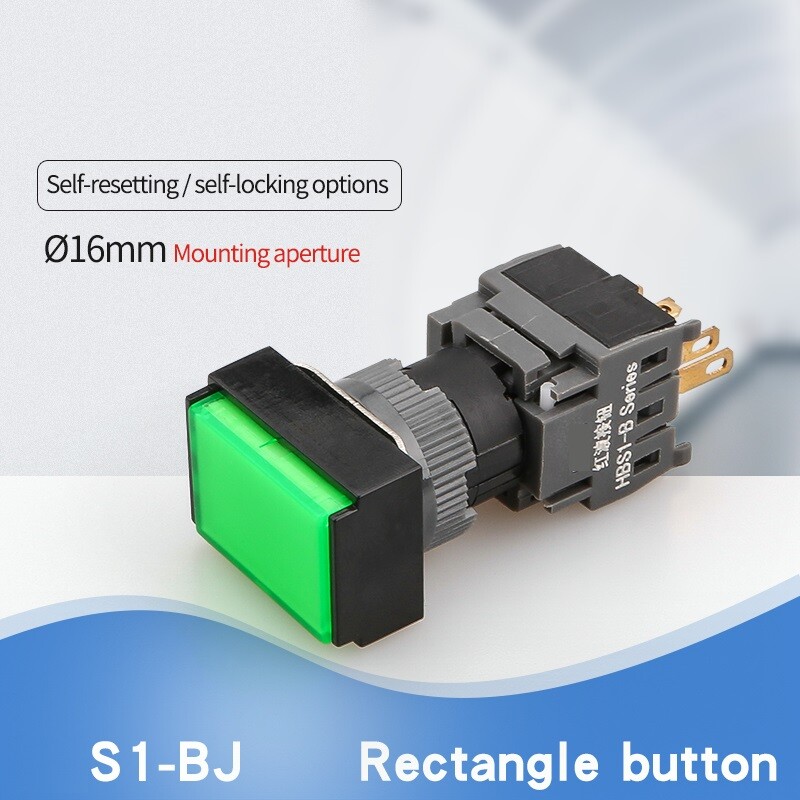

16mm1NO1NC/2NO2NC/3NO3NC Latching ON/OFF Rectangle Plastic Push Button SwitchCE
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Model | LAS1 |
| Contact Material | ABS/Plastic |
| Current Type | AC/DC |
| Switch Style | Push Button/Retractive |
| Smart Home Compatibility | ---- |
| Material | ABS/Plastic |
| Coil Voltage | 220V |
| Type | Maintained Switch |
| Features | App-Controlled |
| Smart Home Protocol | ---- |
| Color | Black |
| MPN | LAS1-BJ-Z |
| Finish | ---- |
| Operation Method | On/Off |
| Brand | Unbranded |
| Suitable For | ---- |
| Application | Automotive |
| Termination Type | Solder Lug |
Item specifics Model Number:LAS1-BJ/22G Protection Level:IP40,IP67 Max. Current:5A Max. Voltage:250V Front shape:Rectangle Product Safety Certification:CE, CCC,ROHS,REECH Mounting diameter:16mm Connect terminal:10 pin terminal(2NO2NC) Operation:Momentary( Latching type can b choose) LED Voltage:12V(Other voltage: 1.8V to 250V) Crust and cap material:PC ( compliant) LED Color:Green(Other color: Red,blue,orange,yellow,white)Product Description φ16mm DiameterSwitch Rating: Ith:5A, Ui:250VContact Configuration: 1NO1NC (11) 2NO2NC (22) 3NO3NC (33)Operation Type: Latching (Latching, means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.)Shape: RectangleActuator Color: Red Green, Yellow, Orange, Blue, WhiteLED Color: Red Green, Yellow, Orange, Blue, WhiteLED Voltage: 12V (other choices 6V,24V,110V,220V)Terminal: 4pins (1NO1NC - NO LED) 6pins (1NO1NC - with LED) 8pins (2NO2NC - NO LED) 10pins (2NO2NC - with LED) 12pins (3NO3NC - NO LED) 14pins (3NO3NC - with LED)IP degree: IP40Packaging Details Unit Type: lot ( pieces/lot) Package Weight: 0.04kg (0.09lb.) Package Size: 2cm x 2cm x 2cm (0.79in x 0.79in x 0.79in)
