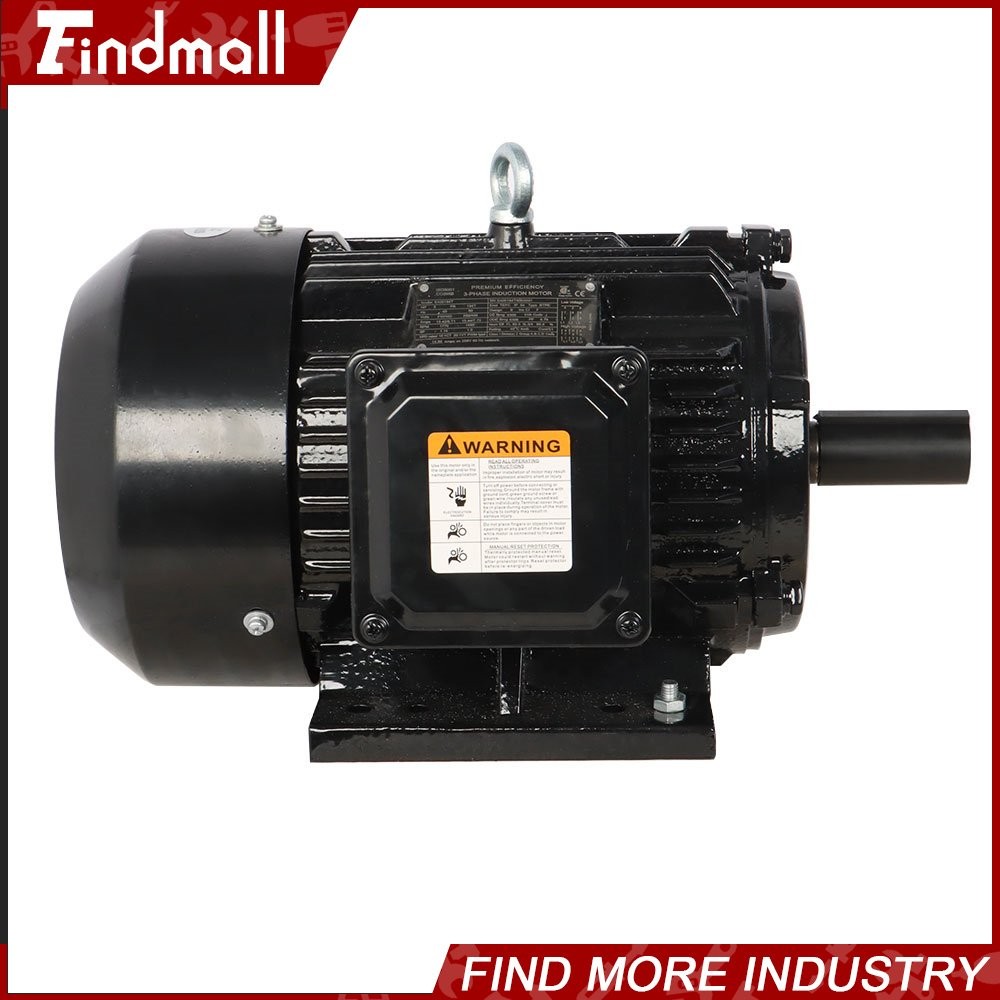

1800 RPM 5HP 3 Phase Electric Motor 184T Frame TEFC 230/460V Severe Duty US
USD 359.47 USD
Specifications
| Country Of Origin | United States |
| Brand | findmall |
| MPN | 652782 |
| Shaft Diameter | 1 1/8 in |
| Nominal Rated Input Voltage | 230 V, 460 V |
| AC Phase | Three Phase |
| Service Factor | 1.15 |
| IEC Frame Size | 184T |
| AC Frequency Rating | 50/60 Hz |
| Shaft Type | Keyed |
| NEMA Design Letter Design | B (General Purpose) |
| Base RPM | 1800 |
| Full Load Amps | 13.42/6.71 |
| Color | black |
| Design | Heavy Duty |
| Shaft Length | Approximately 2 7/8" |
| Rotation | Bi-Directional |
| Shaft Material | 1045 Carbon Steel |
| Max Temp | 40 Degrees C |
| Manufacturer Warranty | 1 year |
Specification： 5 Horsepower 3 Phase TEFC / IP55 Fully Enclosed 184T Frame Service Factor 1.15 Class F Insulation 104 lbs 230/460 Volt 1800 RPM (Full Load Speed 1755) Fan Cooled Class F Insulation Worldwide Electric Brand Shaft Length: Approximately 2 7/8" Keyed 1 1/8" Diameter Shaft Current: AC Full Load Amps: 13.42/6.71 60 HZ (Suitable for 50 HZ with 1.0 SF) Rotation: Bi-Directional Shaft Material: 1045 Carbon Steel Nema Design B Max Temp: 40 Degrees C Features： .
