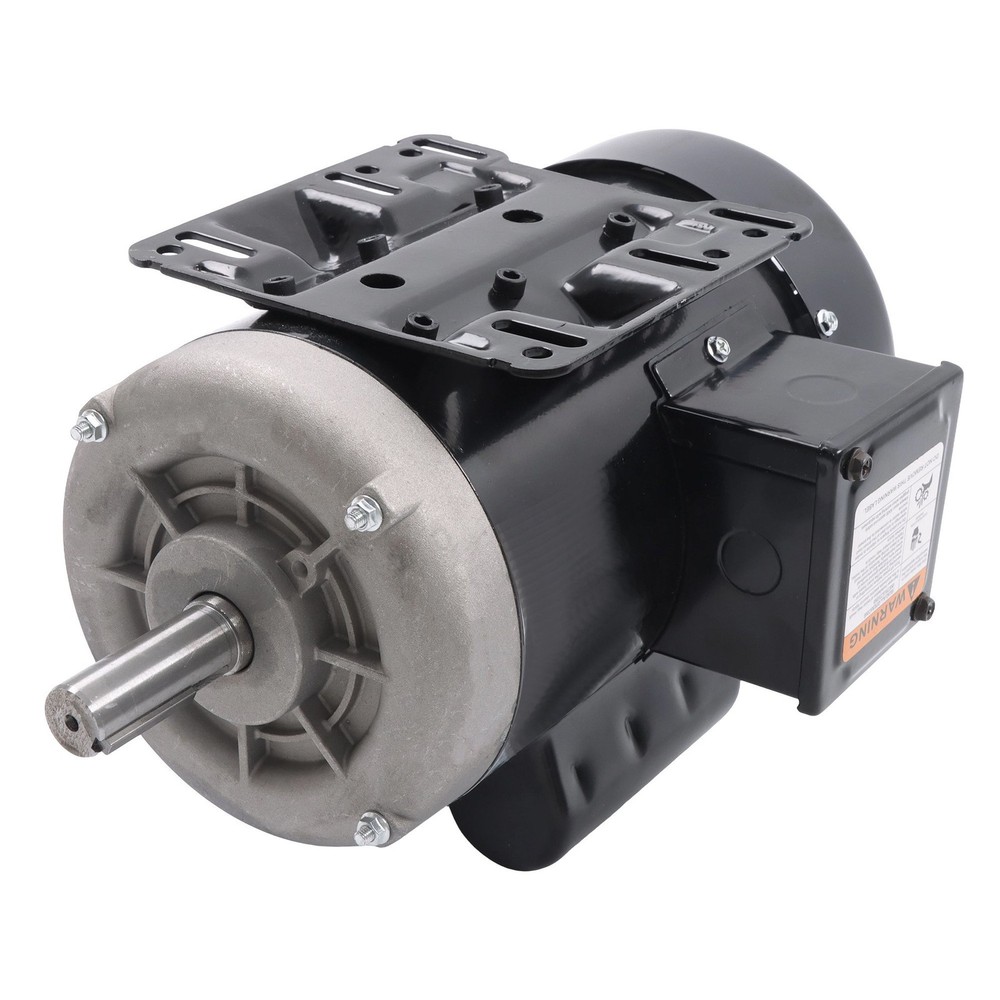

1Pack Single Phase Motor 3HP 230V 3450RPM 60Hz 145T TEFC 7/8″ Shaft Dia CW/CCW

USD 195.76 USD

SKU: auHJlYk7

Brand: menbager

MPN: 1846078

GTIN: Does not apply

Condition: New

Tags: 1 Year 12.4 A 145T 1846078 2.25 in 230 V 3450 3450 RPM 60 Hz 7/8 in Base-Mounted F (Max 311°F) Farm Duty Motor IP55 Keyed menbager Reversible Rolled steel shell Single Phase United States

Categories: Metalworking Equipment

Specifications

Brand	menbager
MPN	1846078
Shaft Diameter	7/8 in
IP Rating	IP55
AC Phase	Single Phase
Nominal Rated Input Voltage	230 V
Motor Type	Farm Duty Motor
IEC Frame Size	145T
AC Frequency Rating	60 Hz
Mounting Type	Base-Mounted
Reversible/Non-Reversible	Reversible
Shaft Length	2.25 in
Shaft Type	Keyed
Country Of Origin	United States
Insulation Class	F (Max 311°F)
Housing Material	Rolled steel shell
Base RPM	3450
Amps	12.4 A
Warranty	1 Year

Specification: Frequency Rating：60 Hz Reversible/Non-Reversible：Reversible Nominal Rated Input Voltage：230V Rated Load (HP)：3 Special Motor Construction：Spindle Motor Current Type：AC Shaft Diameter：7/8 in Enclosure Type： TEFC (Totally Enclosed Fan Cooled) Phase：Single Phase Insulation Class：F (Max 311°F) Mounting Type：Base-Mounted Pole :２ Amps：12.4A Motor Type：Induction/Asynchronous Base RPM：3450RPM IP Rating：IP55 Shaft Length：2.25in Protector：Non Housing Material：Rolled steel shell Model：Farm Electric Motor IEC Frame Size：145T Synchronous Speed:3600 RPM .

1Pack Single Phase Motor 3HP 230V 3450RPM 60Hz 145T TEFC 7/8″ Shaft Dia CW/CCW
