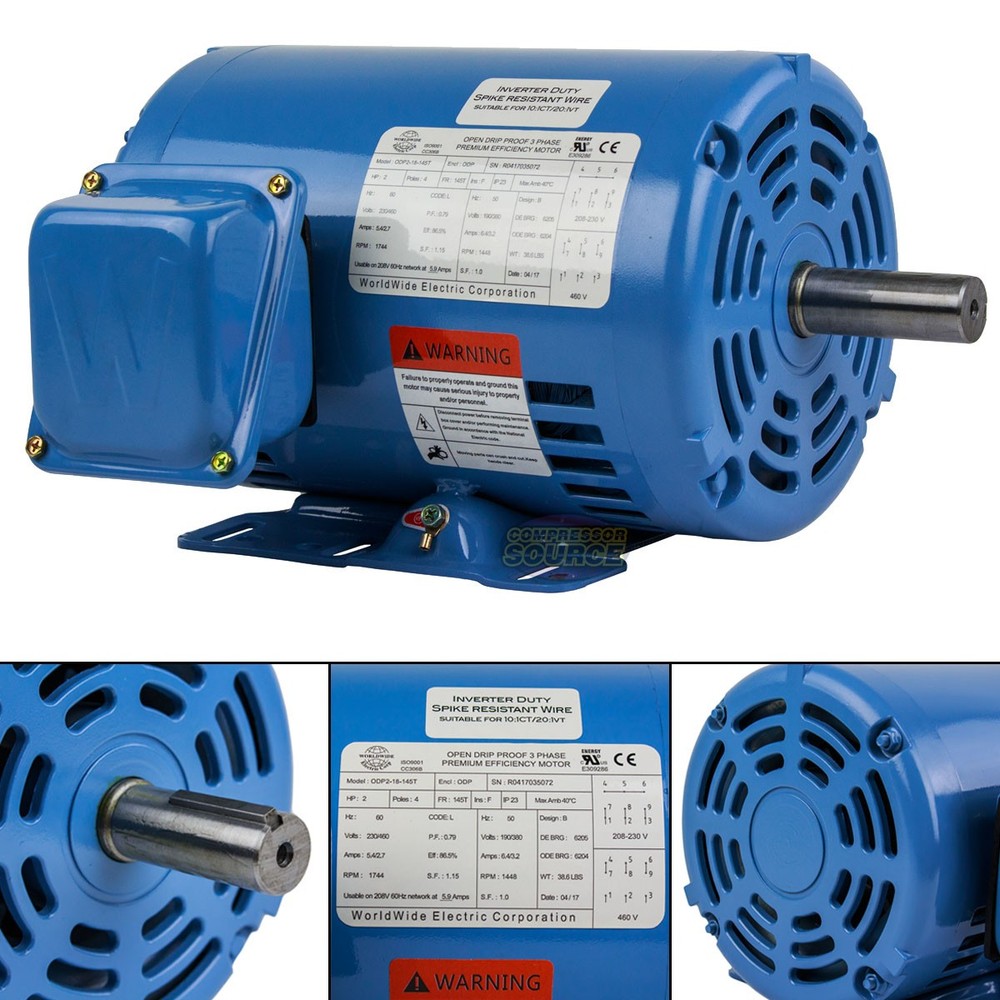

2 HP 3 Phase Electric Motor 1800 RPM 145T Frame ODP Open Drip Proof 230/460V

USD 369.95 USD

SKU: iPDqZImQ

Brand: Worldwide Electric

MPN: ODP2-18-145T

GTIN: 685650079127

Condition: New

Tags: 1.15 145T 1744 230 V, 460 V 5.4 60 Hz 685650079127 7/8 in Base-Mounted Blue electric motor F (Max 311°F) IP23 Keyed Non-Reversible Not Protected ODP (Open Drip-Proof) ODP2-18-145T Three Phase Worldwide Electric

Categories: Metalworking Equipment

Specifications

Brand	Worldwide Electric
Shaft Diameter	7/8 in
Enclosure Type	ODP (Open Drip-Proof)
MPN	ODP2-18-145T
Model	ODP2-18-145T
AC Phase	Three Phase
Nominal Rated Input Voltage	230 V, 460 V
Service Factor	1.15
IEC Frame Size	145T
AC Frequency Rating	60 Hz
Mounting Type	Base-Mounted
Reversible/Non-Reversible	Non-Reversible
Shaft Type	Keyed
IP Rating	IP23
Insulation Class	F (Max 311°F)
Protection Against Liquids	Not Protected
Base RPM	1744
Full Load Amps	5.4
Type	Electric Motor
Color	Blue
UPC	685650079127

2 horsepower, open drip proof, 3 phase premium efficiency electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor (1.00 at 50Hz), is a premium efficiency inverter duty motor. Designed for 60Hz, features a ODP enclosure, and is a 145T frame.
