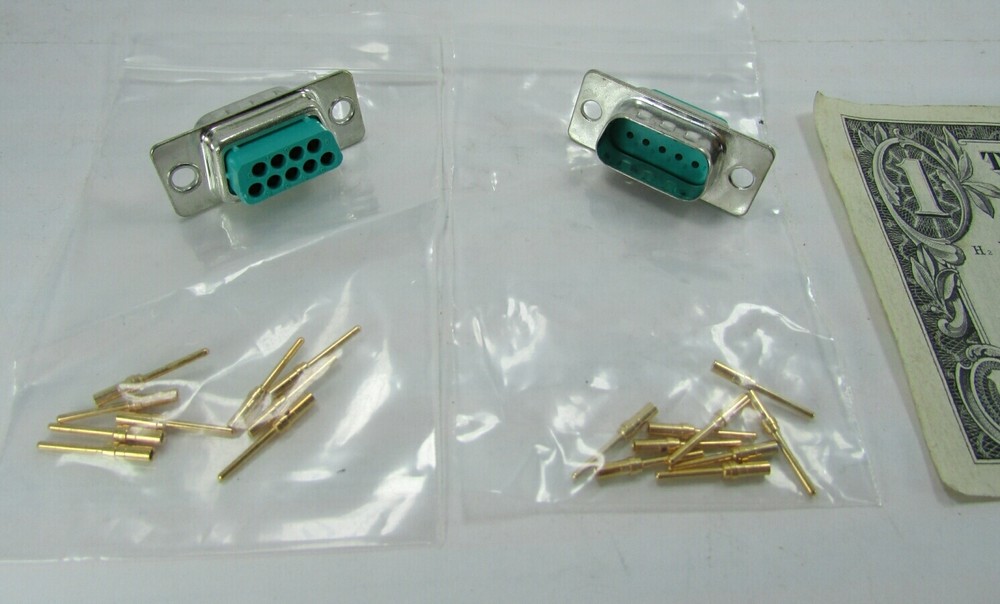

2 Positronic Mil Spec DSub Connectors DE-9, DB-9 Male, Gold Crimp Pins RD9M1000Z
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Density | Standard |
| Shell | Tin Plated Steel |
| Configuration | DE-9 |
| Country/Region Of Manufacture | United States |
| SELLER LOCATION | USA |
| Wire Gauge | 20 AWG - 24 AWG |
| MPN | RD9M1000Z |
| Brand | Positronic |
| Model | DE-9, DB-9, Rhapso-D |
2962XH4G.04 New 2 Positronic Mil Spec D-Sub Connectors, DE-9 / DB-9 / DE9 / DB9 Male, with Gold Plated Crimp Pins, Part Number RD9M1000Z. Each bid quantity is for a Lot of Two (2) Connectors and (18) Crimp Pins. You may bid / buy any number of lots, up to the total quantity available above. These were purchased at an industrial liquidation last year, and they were brand new in bulk factory bags. We packaged them in pairs in heavy Ziplok bags for resale. The part number (RD9M1000Z) breaks down as follows: RD: Series Identification 9: Connector Variants: Terminals 9 M: Connector Gender: Male 1: Contact Termination Type: Crimp, 20 AWG - 24 AWG [0.5mm-0.25mm]. 0: Mounting Style: Mounting Hole, 0.120 [3.05mm] 0: Hood: None 0: Locking & Polarization System: None Z: Shell Options: Tin Plated Steel According to the manufacturer: MILITARY QUALITY CRIMP REMOVABLE CONTACT STANDARD DENSITY D-SUBMINIATURE Rhapso-D series connectors are military quality connectors designed for use in sheltered, mildly corrosive environments having a wide range of temperature, pressure and humidity changes. Applicable crimp removable contact connectors are qualified to MIL-DTL-24308 and SAE AS39029 and will meet the performance requirements of IEC 60807-3, Performance Level One. Rhapso-D series connectors utilize precision machined contacts with closed barrel, crimp terminations. The female utilizes Positronic’s unique PosiBand closed entry system. Rugged open entry female contacts are also available. Rhapso-D series connectors are mateable and compatible with all D-subminiature connectors conforming to MIL-DTL-24308, IEC 60807-2 and IEC 60807-3. RHAPSO-D SERIES TECHNICAL CHARACTERISTICS Insulator: Glass filled DAP per ASTM-D-5948, SDG-F, UL 94V-0, green color. Removable Contacts: Insert contact to rear face of insulator and release from rear face of insulator. Size 20 contact, male - 0.040 inch. [1.02mm]. Mating diameter Female - PosiBand closed entry design Mechanical Operations: 1000 operations minimum per IEC 60512-5 for PosiBand closed entry female contact. Contact Current Rating, Tested per UL 1977: 18 amperes, 2 contacts energized; 14 amperes, 6 contacts energized. Initial Contact Resistance: 0.004 ohms maximum. Proof Voltage: 1000 V r.m.s. Insulation Resistance: 5 G ohms. Clearance and Creepage Distance [minimum]: 0.039 inch [1.0mm]. Working Voltage: 300 V r.m.s. Temperature Range: -55°C to +125°C. Damp Heat, Steady State: 21 days.
