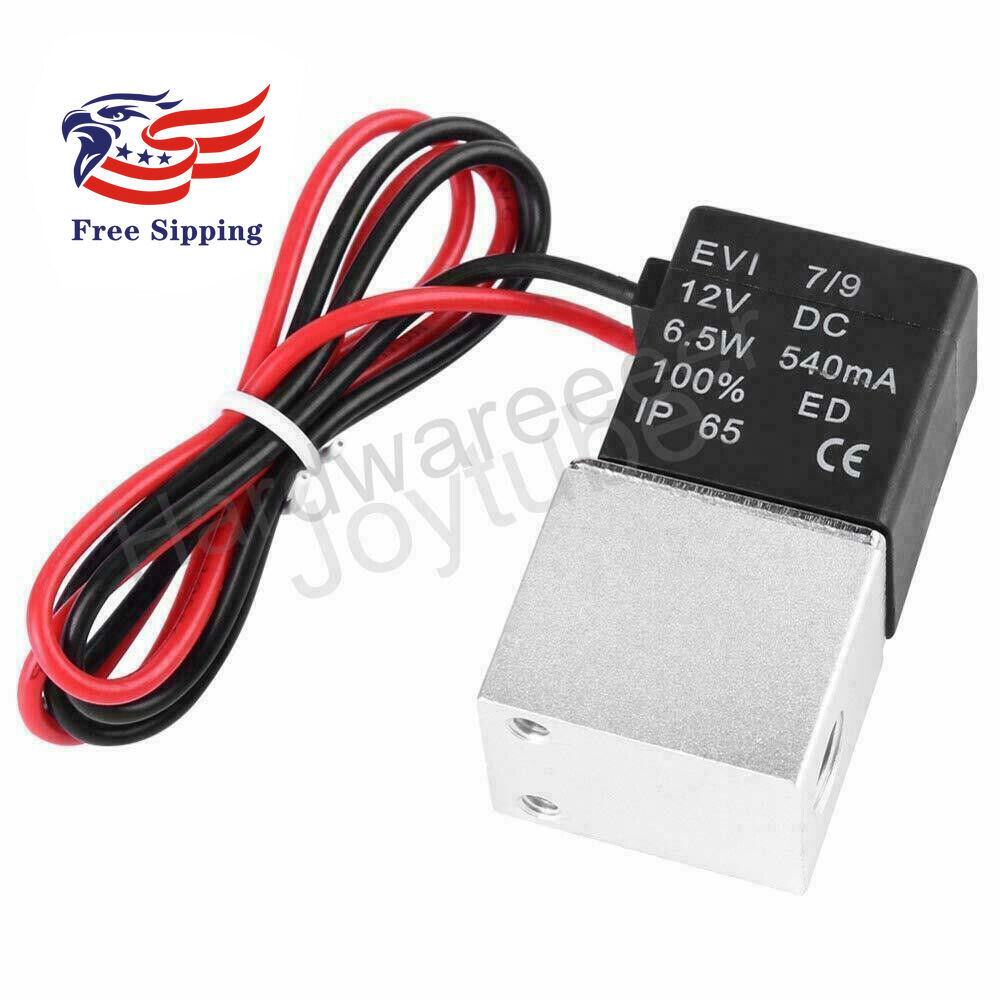

2 Way Normally Closed DC 12V Electric Solenoid Air Valve 1/4″ NPT
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Hardwareeeer |
| Suitable Media | Air |
| Temperature Range】 23-176°F , Pressure Range | 115 PSI |
| MPN | Does Not Apply |
| Valve Operation | Solenoid |
| Country/Region Of Manufacture | China |
【Material】Anodized Aluminum 【Valve Type】2 Way Normally Closed (Valve opens with energized). Normally closed type with long life span and excellent sealing. 【Port Coil Voltage】 12V Port size: 1/4" Female. One side 1/4" inlet port, other side 1/4" outlet port. 【Temperature Range】 23-176°F , Pressure Range : 115 PSI 【Feature】This solenoid valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum). . Comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constant energized. Model Number : 2ACK-1/4-12VDC-G Valve Type : 2 Way Normally Closed (Valve opens with energized) Service Media : Air- Gas- Liquid- Water Operation Model : Direct Acting Flow Model : Uni-Directional Flow Rate : 0.23Cv (Fluid Flow)- 22 SCFM at 100 PSI (Air Flow) Response Time : Less than 20 ms Body Material : Anodized Aluminum Seal Material : NBR (Buna N) Armature Tube Material : Brass Plunger & Spring Material : Stainless Steel Coil Power : 6.5W Coil Class : F Class IP 65 (CE) Coil Duty : 100% ED (Continuous Duty) Operating Pressure : Vacuum to 115 PSI Operating Temperature : -5 to 80 °C Port Size : 1/4" Inch NPT Female Port Coil Voltage : 12V DC Voltage Tolerances : DC : +10% –5% ; AC : +10% -15% Electrical Connection : Grommet Coil with 12" Lead Wire 2ACK Series Electric Solenoid Valve
