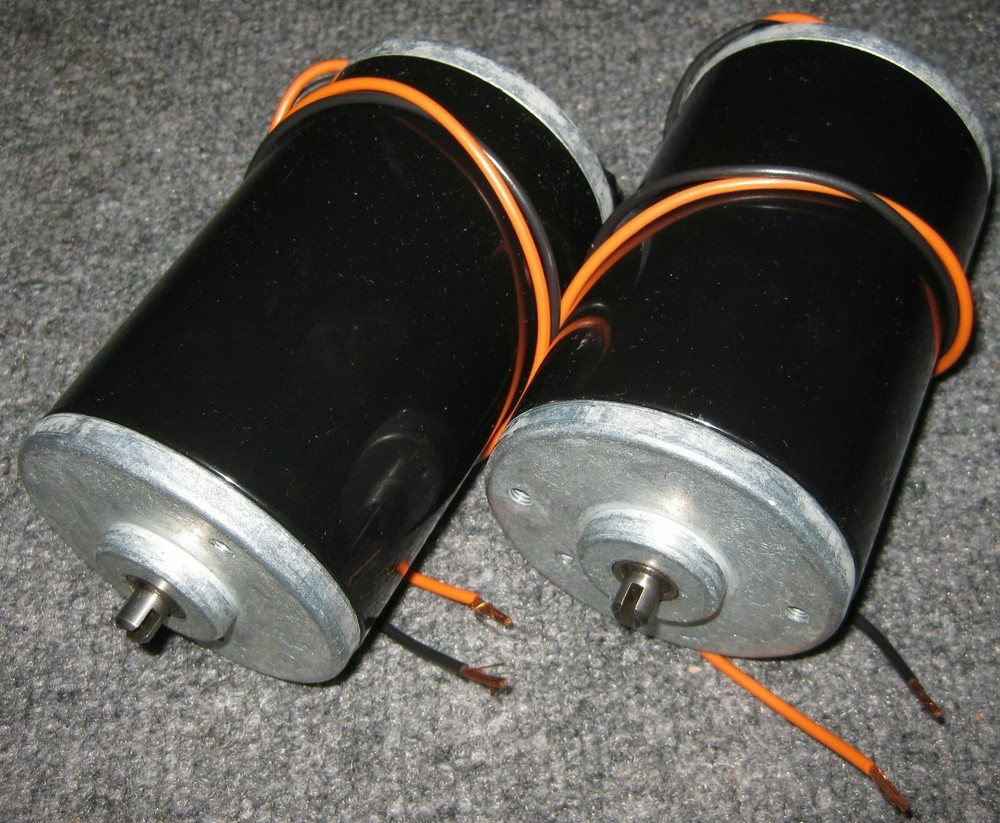

2 X Buehler 12V DC Large Hobby Motor – Short Slotted Shaft – 115 Watt – 6000 RPM
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 15.3 A |
| AC Frequency Rating | Not Applicable |
| MPN | 1.13.075.204.00 |
| Actual Rated Input Voltage | 12 V |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Straight |
| Nominal Rated Input Voltage | 12 V |
| UPC | Does not apply |
| Starting/Locked Rotor Torque | 431 oz-in |
| Reversible/Non-Reversible | Reversible |
| AC Motor Type | Not Applicable |
| Rated/Full-Load Torque | 28.3 oz-in |
| Shaft Diameter | 5/16 in |
| Base RPM | 6000 RPM |
| Brand | Buehler |
| Rated Load (HP) | 0.15 HP |
| AC Phase | Not Applicable |
| Type | General Purpose Motor |
2 X Buehler 12V DC Large Hobby Motor with Short Slotted Shaft - 115 Watt - 6000 RPM Electric DC motorsYou will receive 2 motors Operates on 1 - 12 VDC (12 VDC Nominal).008 Ohm terminal - terminal resistance No load speed of 6,000 RPM @ 12 VDC - 4.8 Amperes No load speed of 500 RPM @ 1 VDC - 2 Amperes Nominal load torque: 2,040 g-cm (20 Ncm / 28.3 oz-in)Nominal load speed: 5,600 RPM Nominal load current: 15.3 A Torque constant: 1.9 Ncm / ASpeed regulation: 19.7 RPM / NcmNominal load power output: 115 Watts Stall current at 12 VDC: 160 A Stall torque: 31,000 g-cm (304 Ncm / 431 oz-in) Slotted shaft dimensions: 9 mm L x 7.93 mm Diameter (works with many 8 mm couplings as shown in pictures) Dimensions (not including shaft): 122 mm Long x 76 mm DiameterIdeal for robotics, generator applications, and any other project requiring high power motor Constructed using powerful permanent magnets Sealed ball bearings to ensure long life Weight: 4 lb 1 oz (1840 g) each 17" long flexible power leads Features 2 threaded (10-32) mounting holes on 58.7 mm centers Intermittent duty (be aware of temperature to prevent overheating)
