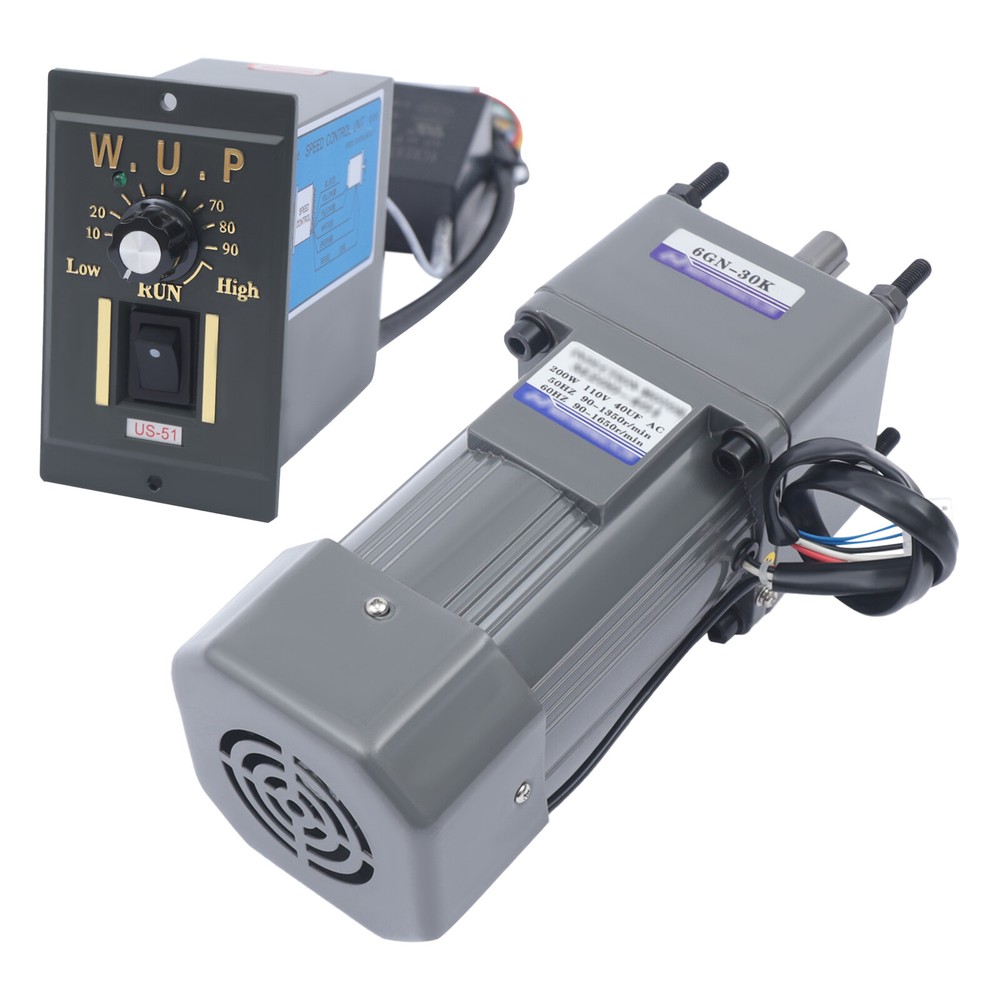

200W 110V AC Gear Motor Electric Variable with Speed Controller Single-phase 20K
USD 99.03 USD
Specifications
| Brand | Unbranded |
| Voltage | 110V |
| Power | 200W |
| Output Speed | 68 r/min |
| Rated Torque | 24.1 N.m |
| Gear Reduction Ratio | 20K |
| Motor Gross Weight | 7kg/15.4lbs |
| Motor Net Weight | 6.8kg/14.99lbs |
| Shaft Length (Reduction Gearbox) | 3.6cm/1.4inch |
| Shaft Thickness (Reduction Gearbox) | 1.5cm/0.6inch |
| Key Width (Reduction Gearbox) | 5mm/0.2inch |
| Shaft Eccentricity (Reduction Gearbox) | 2cm/0.8inch |
| Aperture (Reduction Gearbox) | 8mm/0.3inch |
| Disc Diameter (Reduction Gearbox) | 3.9cm/1.5inch |
| Disc Height (Reduction Gearbox) | 9mm/0.35inch |
| Speed Governor Gross Weight | 0.35kg/0.77lb |
| Speed Governor Net Weight | 0.3kg/0.66lb |
| Speed Governor Product Size | 8*5.2*9cm/3.1*2*3.5inch |
| Panel Size (Speed Governor) | 10*6cm/4*2.4inch |
Power: 200W. Gear Reduction Ratio: 20K. The stator and rotor of the gear motoradopt pure copper coils, which are more durable and make the motor's power output more smooth and stable. The gear set adopts full ball bearings and high precision alloy steel gears to effectively enhance the rotational torque of the motor and improve working efficiency.
