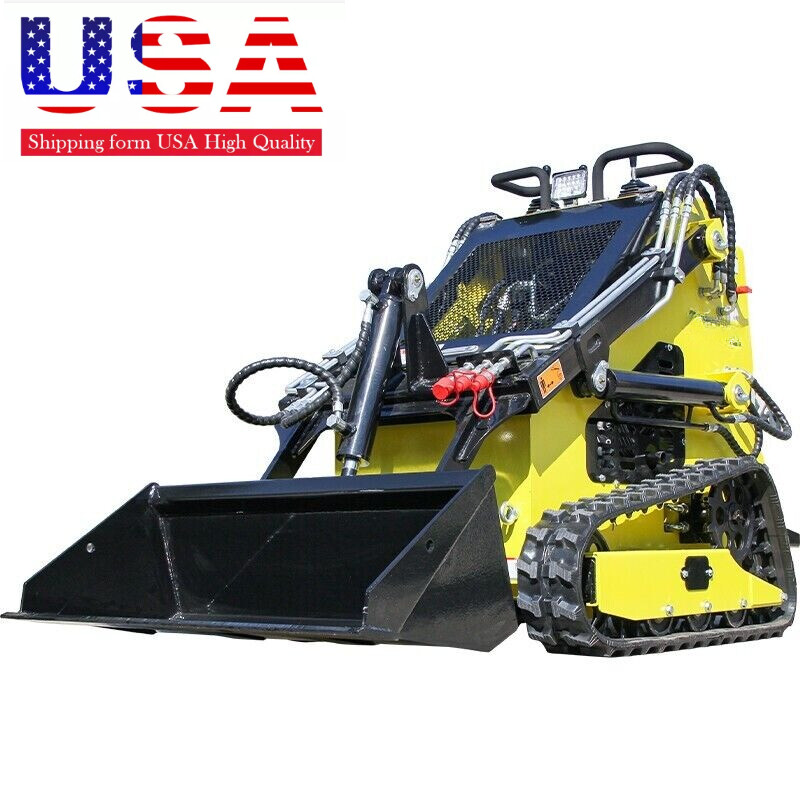

2025 Brand New Mini Skid Steer Track Loader 13.5HP Upgraded Free Ship USA Stock
USD 4599.00 USD
Specifications
| Maximum Unloading Height A (mm) | 1650 |
| Total Height D (mm) | 1300 |
| Cooling Method | forced air cooling |
| Maximum Power (Kw) | 8.5 |
| Maximum Working Height C (mm) | 2230 |
| Bucket Width E(mm) | 1000 |
| Model Year | 2024 |
| Equipment Size | Compact |
| Net Horsepower (HP) | Under 20 |
| Track Width H (mm) | 895 |
| Maximum Horsepower (ps) | 15HP |
| Lift Path | Vertical Lift |
| Ground Clearance F(mm) | 150 |
| Operating Load | Under 1,000 lbs |
| Operating Weight | Under 4,000 lbs |
| Boarding Width O (mm) | 834 |
| Maximum Speed (rpm) | 3600 |
| Mounting Style | Tracked |
| Working Weight Of The Whole Machine (kg) | 720 |
| Bucket Capacity(m³) | 0.1 |
| Make | Forcedrive |
| Maximum Lifting Force (kg) | 375 |
| Total Width N (mm) | 1030 |
| Series | FD-S33 |
| Turning Radius M (mm) | 1320 |
| Model | FD-S33 |
| Walking Speed Low/high (Km/h) | 0-6.5 |
| Country/Region Of Manufacture | China |
| Total Length J/K (mm) | 2313 |
Skid Steer Loader. Bucket capacity (m ³) 0.1. A single lever realizes forward, backward, steering andother actions,which is convenient for operation and hashigh and low speed functions. Bucket unloading angle L 19.
