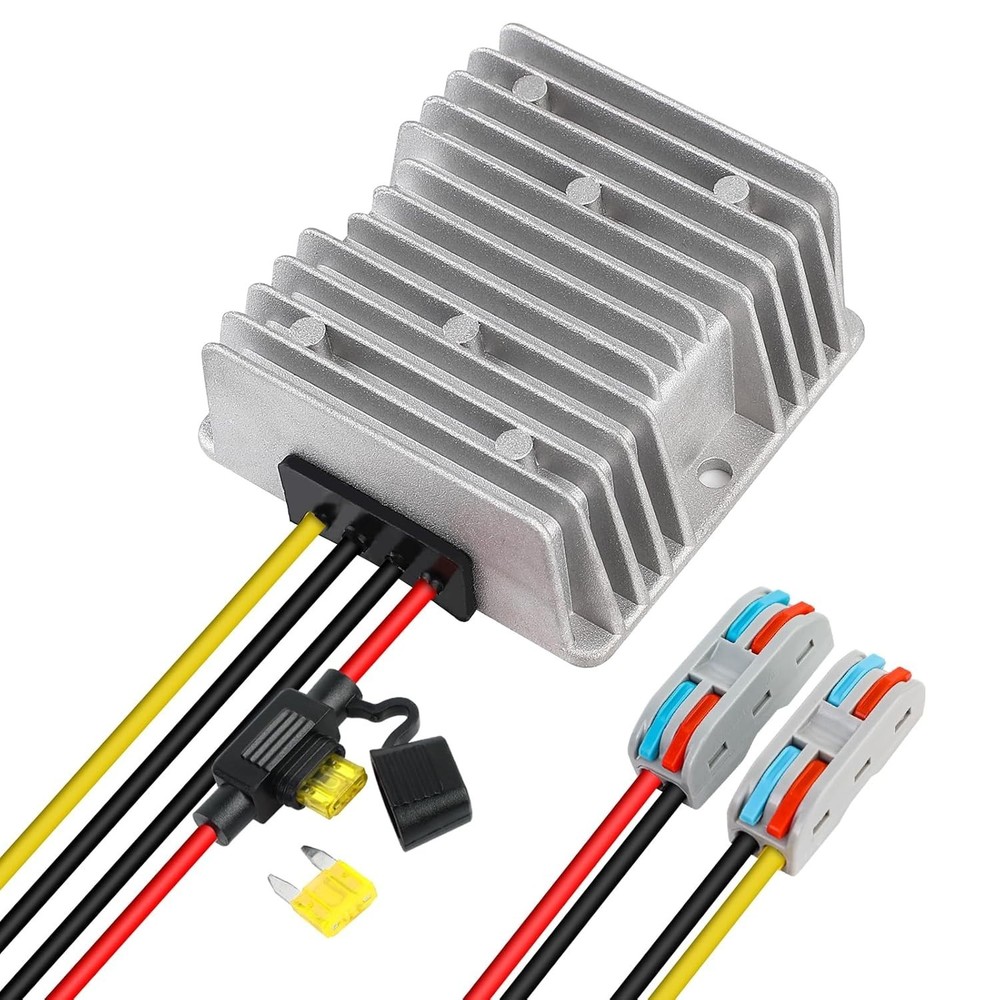

20A 240W DC 18V 20V 24V 36V 48V to 12V Step Down Voltage Converter with Fuse

USD 20.69 USD

SKU: PFyvvzmp

Brand: Unbranded

Condition: New

Tags: -40 °C (-40 °F) 12 V 18V 20V 24V 36V 48V 18V to 60V 20 A 240 W 50 mV 80 °C (176 °F) DC 18V DC to DC Forward Converter Indoor/Outdoor Silver Stand Alone Unbranded

Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

Mounting Style	Stand Alone
Input Voltage	18V 20V 24V 36V 48V
Nominal Current Rating	20 A
Current Conversion	DC to DC
Input Range	18V to 60V
Ripple & Noise	50 mV
Color	Silver
Nominal Power Rating	240 W
Minimum Operating Temperature	-40 °C (-40 °F)
Installation Area	Indoor/Outdoor
Brand	Unbranded
Type	Forward Converter
Output Voltage Rating (DC)	12 V
Inrush Current Rating	20 A
Maximum Operating Temperature	80 °C (176 °F)

The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency. Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉.

20A 240W DC 18V 20V 24V 36V 48V to 12V Step Down Voltage Converter with Fuse
