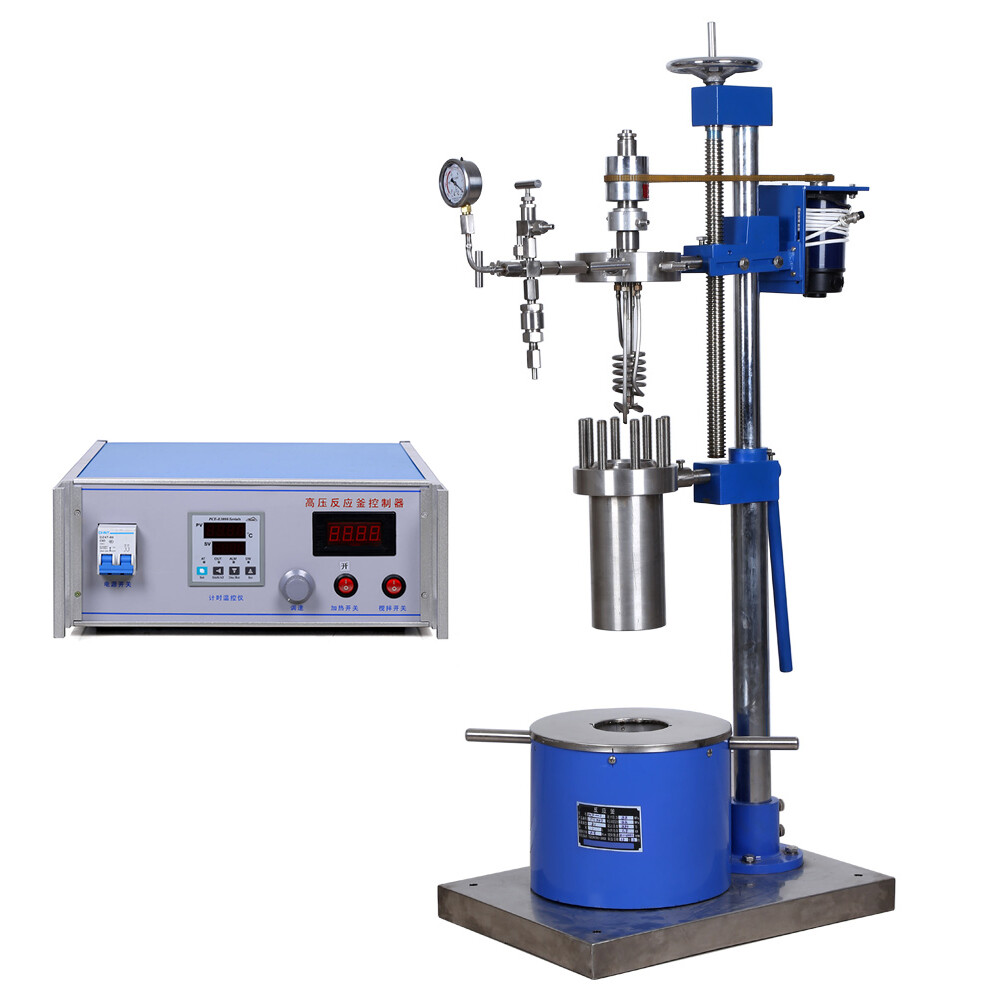

220 Bar High Pressure Reactor Lab Autoclave Vessel with Stirring Lift SS316
Specifications
| Model | FCF-1(1L) |
| Voltage | 110V (single-phase) |
| Brand | ZZKD |
| MPN | 0606267299418 |
| Reactor Material | SS316 |
| Country/Region Of Manufacture | China |
| Certification | CE ISO |
| Capacity (L) | 1-5L |
| Setting Temperature (℃) | 350 |
| Core Components | Motor |
| Heating Power (kw) | 1.5KW/2KW/2.5KW/4KW |
| Weight | 150kg |
| Warranty | One Year |
| Stirring Torque (N.cm) | 120 |
| Stirring Speed (r/min) | 50-1000 |
FCF series lab magnetic stirred autoclave is a stirring and reacting device, which is used for kinds of chemical materials which are Gas-liquid, liquid-liquid, liquid -solid or gas-liquid-solid three-phase to reactand stir fully under the high pressure, vacuum, high temperature, up to strength mass and heat transfer process. Static sealing structure, Magnetic coupling connection between the agitator and motor drive. Static seal instead of dynamic seals, and thoroughly mixing exchange leakage, the entire media and mixing the components to work completely in the state of absolute seal. We design and manufacture high pressure stirred autoclave, pressure upto 22Mpa and temperatures up to 350°C in material of SS-316L. High-pressure reactor autoclave is suitable for flammable, explosive, hi.
