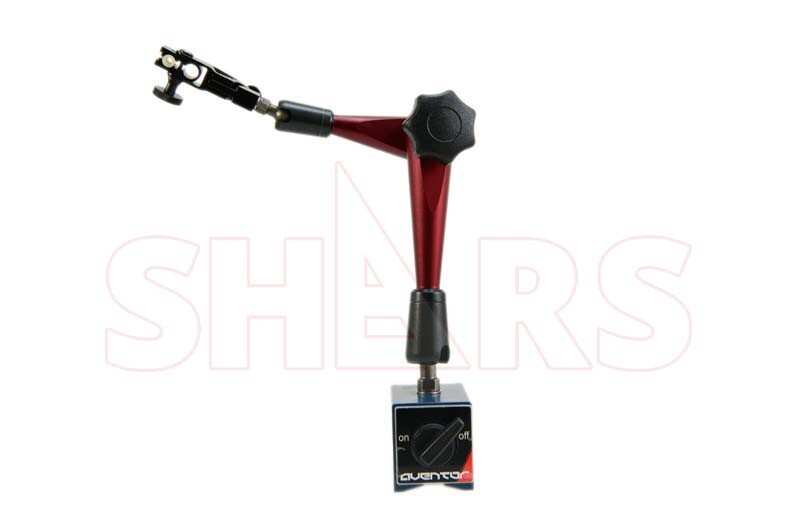

220lbs Aventor Heavy Duty Magnetic Base Indicator Holder w/Articulating Arm P]

Specifications

Return Shipping Will Be Paid By	Buyer
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
MPN	202-7938
Brand	Shars Tool

220lbs Aventor Heavy Duty Magnetic Base Indicator Holder with Articulating Arm Base Only Product description SKU 202-7938 BRAND Aventor MAGNETIC BASE CATEGORY Standard Base BASE LENGTH 2.8 BASE WIDTH 2 BASE HEIGHT 2.2 MAGNETIC PULL (LBS) 220 INCLUDES HOLDER No THREAD SIZE M8 X 1.25 BASE MATERIAL Steel ARM STYLE Articulated Arm FIXED ARM LENGTH (INCH) 5.71 BRANCH ARM LENGTH (INCH) 6.85 CLAMPING DIAMETER 1/4" Dovetail, 3/8, 6mm, 8mm MAXIMUM REACH 13.97 FINE ADJUSTMENT Speed-Set HYDRAULIC No BASE TYPE Heavy-Duty Product features 6061 Aluminum Aluminum arm made from 6061 and anodized to prevent oxidation Heavy Duty Locking Heavy Duty locking mechanism gives a smooth and rigid feel and instantly lock in any position Versatile Holding Holds 3/8”, 6mm, & 8mm diameter stem, 1/4” dovetail and lug back Newly Improved A newly improved fine adjustment device is adapted to Shars brand of magnetic base to make the setup much more efficient and accurate. Speed-set fine adjustment can be replaced by threading onto the arm with M6 thread size Heavy duty locking mechanism with bearing to give a smooth and rigid feel and instantly lock in any position Aluminum arm made from 6061 adn anodized to prevent oxidation M8 x 1.25 threaded mounting hole on bases Holds 3/8", 6mm, & 8mm diameter stem, 1/4" dovetail and lug back Other Imports Aventor Other imports use a coil spring for tension. The coil spring arcs under oad binding on the fixture hole. As the coil loads and unloads it causes the movement to feel gritty due to coil bind and makes setting the indicator difficult and unpredictable. New re-positioned spring stays linear throughout the travel eliminating spring bind. Adjustment screw uses a finer thread and ball shape at the end of the threads that sits in a pocket eliminating the screw from walking. This design gives the fine adjustment screw a positive footing, a more predictable adjustment and a silky smooth feel. The improvements minimize erratic dial hand movements and makes dialing in effortless, saving precious setup time. Related Product please click the photo to the item page Order No. 303-3111S Order No. 303-3203 Order# 303-3501 1" Dial Indicator .03" Black Dial Test Indicator .500" Electronic Indicator Order# 303-3567 Order# 303-3568 Order# 303-3505 Aventor 0.5" Indicator Aventor 1" Indicator Aventor 2" Indicator We have other Magnetic bases available at My Ebay Store All Available to Ship NOW! at Fixed Prices If you need to speak to a sales person feel free to call. We are open Monday through friday 8:30 to 5:00 est. Phone: 1-630-443-3244 Please direct any questions to our eBay Message Box. SHIPPING: UPS Ground Buyer pays ACTUAL UPS shipping & insurance, and a $3.00 handling fee for this item to be shipped to all states within the continental United States. Hawaii, Alaska & and other United States Territories will ship via UPS BLUE. Canada will pay actual shipping costs plus duty fees via UPS. We can combine other auctions or store items to save on shipping. You may ask for freight cost before buying tools. Shipment will be made the same day as your payment is received and an UPS tracking number will be email to you. If your order is being shipped to an address outside of the United States, local consumer tax and/or customs duty , brokerage charges may apply and the package's recipient may need to pay these to clear customs. PAYMENT: We accept VISA, MasterCard and E-Check on PayPal.com Illinois resident adds 8% sales tax. Any questions regarding our tools, feel free to email us at our eBay Message Box.
