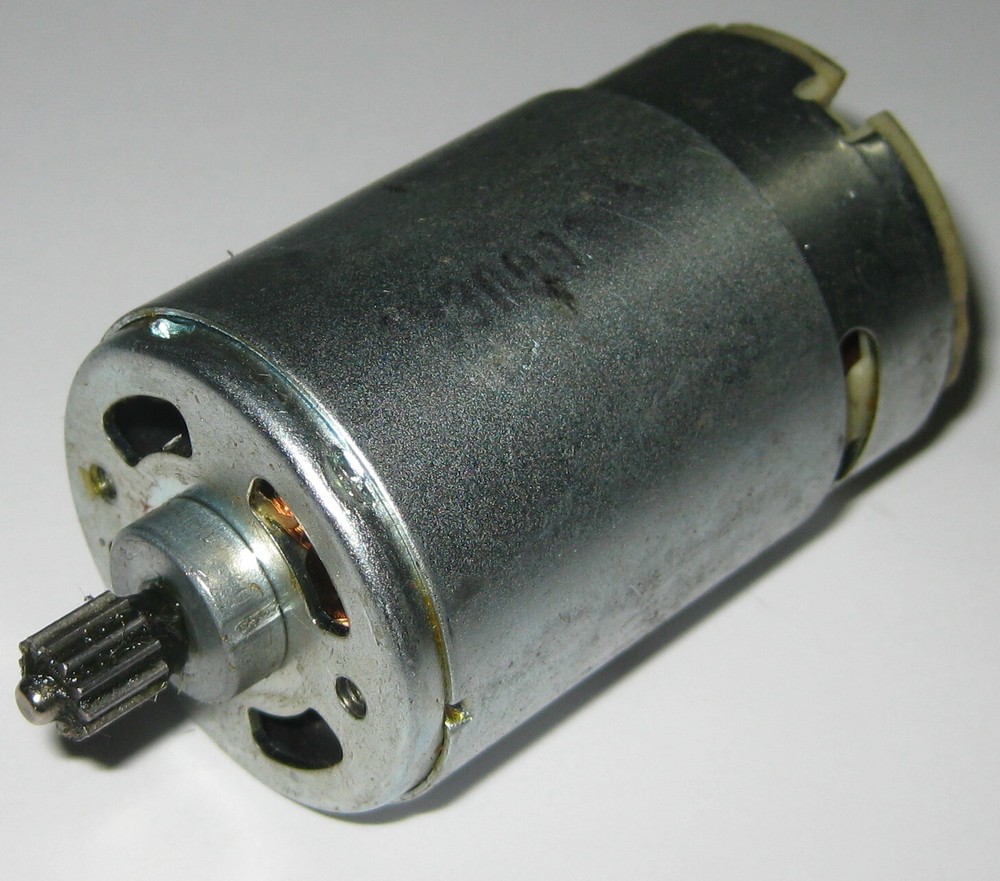

24 V – 1800 RPM – Slow Speed Electric DC Motor w/ 12T Steel Gear – High Torque
USD 13.95 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | Does Not Apply |
| Actual Rated Input Voltage | 24 V |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Knurled |
| Nominal Rated Input Voltage | 24 V |
| Reversible/Non-Reversible | Reversible |
| Shaft Diameter | 3.17 mm |
| Base RPM | 1,800 |
| Brand | Unbranded |
| Mounting Type | Face-Mounted |
| Type | General Purpose Motor |
24 V - 1800 RPM - Slow Speed Electric DC Motor w/ 12T Steel Gear - High Torque Permanent magnet electric DC motor Motors pulled from unused excess inventory equipment - there will be little bit of grease on gear Operates on 24 VDC No load speed at 24 VDC: 1,800 RPM No load current: 30 mA Stall current: 500 mA Can be operated in either direction, simply reverse power supply polarity Dimensions (not including shaft): 57 mm long x 37 mm diameter Knurled shaft dimensions: 10 mm long x 3.17 mm diameter 12 tooth steel gear installed on shaft (7.6 mm diameter)Comes with solder eyelets for power connection Features 2 threaded mounting holes on 25 mm centers Weight: 7.4 oz (209 g)
