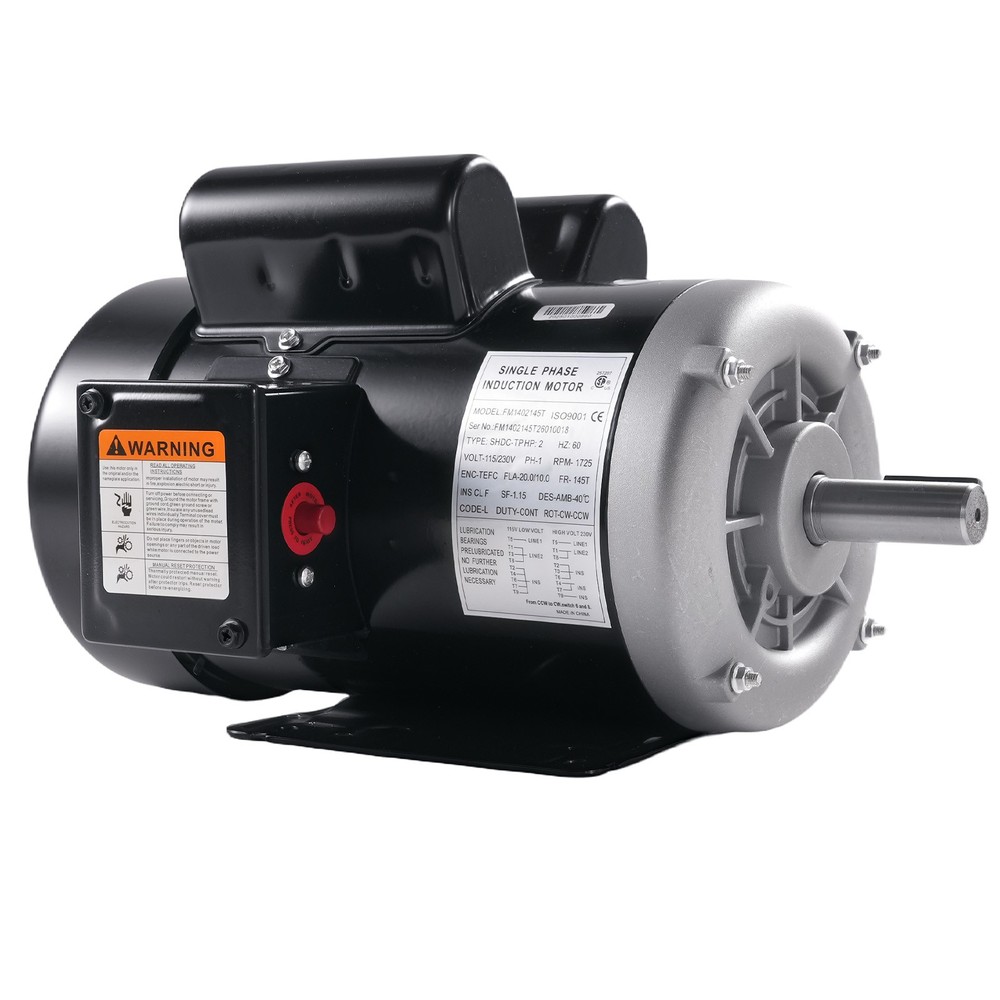

2HP Electric Motor 1725RPM 143/5T Frame 1-Phase 5/8″ Keyed Shaft AC115V/230V
USD 219.99 USD
Specifications
| AC Frequency Rating | 60HZ |
| AC Phase | Single Phase |
| Actual Rated Input Voltage | 115 / 230V |
| Base RPM | 1725 RPM |
| Brand | BFO |
| Country Of Origin | China |
| Frame Size | 143/5T |
| Full Load Amps | 20.5A/10.5A |
| Manufacturer Part Number | YDGR8W |
| Manufacturer Warranty | 2 Year |
| Model | 2 HP Electric Motor |
| Nominal Rated Input Voltage | 115 V, 230 V |
| Note | No Instruction Included |
| Overall Height | 8.27" |
| Overall Length With Shaft: | 14.17" |
| Overall Width | 9.06" |
| Phase | Single Phase |
| Quantity | 1 x 2HP Electric Motor |
| Rated Load (HP) | 2 HP |
| Reversible/Non-Reversible | Non-Reversible |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Length | 1.88" |
| Shaft Type | Keyed |
| Standard Size Keyway | 3/16" |
| Surface Finish | Brand New |
| Unit Type | Electric Motor |
Horsepower : 2HP. Phase : Single Phase. Overall Length With Shaft: 14.17". Shaft Length: 1.88". Service Factor: 1.15. Rotation Direction: CCW Rotation Facing Shaft. 1x Electric Motor. Speed :1725 RPM.
