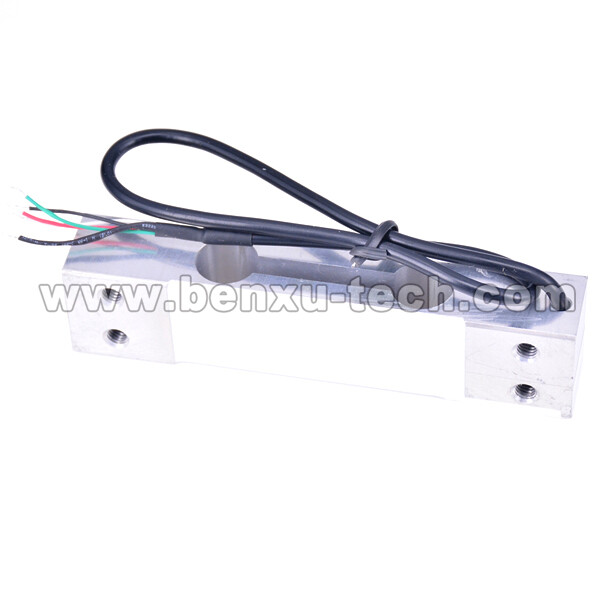

3-120KG/6.6-264lbs Parallel Beam Load Cell Sensor Weighing Scale Sensor
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | China |
| Brand | BENXU |
Features:Aluminum-alloy;Colorless anodized;Glue sealed. Application:Electon records the seales/records the hearyscales etc;Recommended platform size:250X350mm. Parameters:Rated Load(kg):3-120kg/6.6-264lbs(choose the one you want);Size: 13cm in length; 3cm in width; 2.2cm in height;Precision:0.02;Composition Error(%FS):0.03;Rated Output(mv/v):2±0.1;Non-linearity(%FS):0.03;Hysteresis(%FS):0.03;Repeatability:(%FS):0.01;Creep(%FS/30min):0.02;Zero Balance(%FS):±1;Input Resistance(Ω):405±6;Output Resistance(Ω):350±3;Insulation Resistance(MΩ)≥5000(100VDC);Excitation Voltage(V):9-12VDC;Compensated temp.Range(℃):-10—+40;Use Temp.Range(℃):-35—+65;Temp.Effect on Zero(%FS/10℃):0.03;Temp.Effect on Span(%FS/10℃):0.03;Safe Overload(%FS):120;Ultimate Overload(%FS):150;Defend Grade:IP65;Cable:Shielding Cable(Ф5) Wiring Schematic Diagram:Red: + (input);White: - (output);Black: - (input);Green: +(output). Have stocks for following range: 0-3KG,5KG,6KG,10KG,15KG,20KG,30KG,40KG,50KG,60KG,100KG,120KG,200KG,350KG,500KGPlease see in our store:http://stores.ebay.com/Ahead-Instruments-and-Electronics/Load-Cell-Sensor-/_i.html?_fsub=4828548013&_sid=1086435763&_trksid=p4634.c0.m322 Suitable display meter for the load cell sensor:http://www.ebay.com/itm/Load-Cell-Sensor-Display-Meter-Sensor-Meter-Power-90-260V-AC-DC-Input-DC-0-24mV-/171873996448?hash=item28047d0ea0
