(3) Case SR220 SR250 SV250 SV300 TR320 TV380 SKID STEER Schematic Set 36″x24″
(3) Case SR220 SR250 SV250 SV300 TR320 TV380 SKID STEER Schematic Set 36″x24″ (3) Case SR220 SR250 SV250 SV300 TR320 TV380 SKID STEER Schematic Set 36″x24″

(3) Case SR220 SR250 SV250 SV300 TR320 TV380 SKID STEER Schematic Set 36″x24″

USD 109.16 USD
SKU: D6DTZinq
Brand: Case
MPN: 47886255
Condition: Very Good
Tags: 2013 & UP 36'' X 300" 47886255 case Case IH, Farmall, Case Schematic Manual Set United States
Categories: Test Meters & Detectors

Specifications

BrandCase
TypeSchematic Manual Set
Model Year2013 & UP
Compatible Equipment MakeCase IH, Farmall, Case
MPN47886255
Country Of OriginUnited States

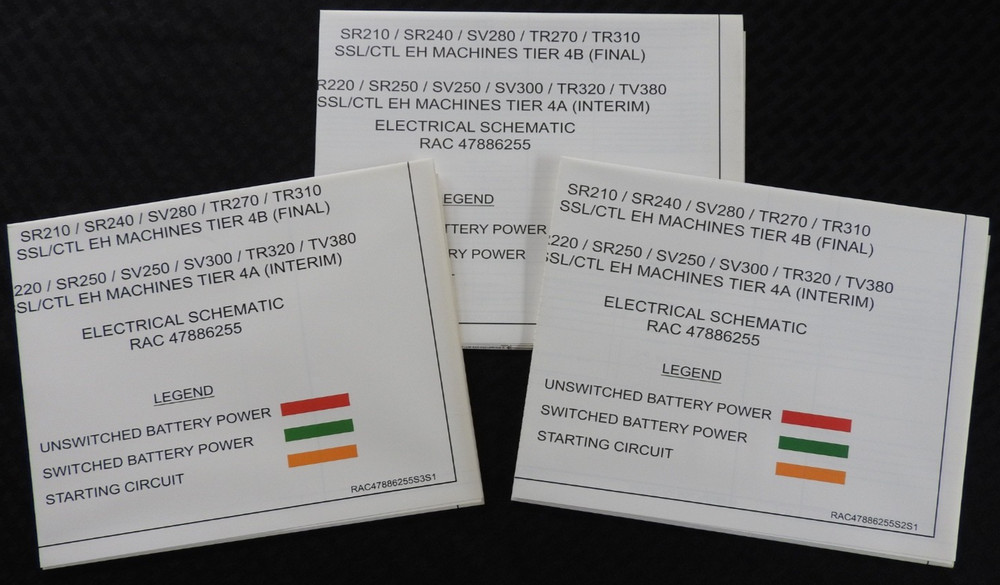

This is an ORIGINAL Case IH SR270, SV300, TR340, & TV380 Tier 4A & 4B Final "Electro-Hydraulic" Skid Steer Loader Tractor Electrical Schematics set (47886255 FACTORY printing). These are large fold-out diagrams at 36" x 24".
