3 HP 3 Phase Electric Motor 1800 RPM 182T Frame ODP Open Drip Proof 230/460V

USD 349.99 USD

SKU: kjcmUYn1

Brand: Worldwide Electric

MPN: ODP3-18-182T

GTIN: 685650079431

Condition: New – Open box

Tags: 1 1/8 in 1.15 1759 182T 230 V, 460 V 3 Horsepower, 3 Phase 60 Hz 685650079431 7.6 Base-Mounted Blue electric motor F (Max 311°F) IP23 Keyed Non-Reversible Not Protected ODP (Open Drip-Proof) ODP3-18-182T Premium Efficiency Three Phase Worldwide Electric

Categories: Metalworking Equipment

Specifications

Base RPM	1759
MPN	ODP3-18-182T
Insulation Class	F (Max 311°F)
Design	Premium Efficiency
Service Factor	1.15
Features	3 Horsepower, 3 Phase
Full Load Amps	7.6
IEC Frame Size	182T
AC Frequency Rating	60 Hz
Enclosure Type	ODP (Open Drip-Proof)
Shaft Type	Keyed
Color	Blue
Shaft Diameter	1 1/8 in
Mounting Type	Base-Mounted
Brand	Worldwide Electric
Reversible/Non-Reversible	Non-Reversible
Type	Electric Motor
Protection Against Liquids	Not Protected
IP Rating	IP23
Model	ODP3-18-182T
Nominal Rated Input Voltage	230 V, 460 V
AC Phase	Three Phase
UPC	685650079431

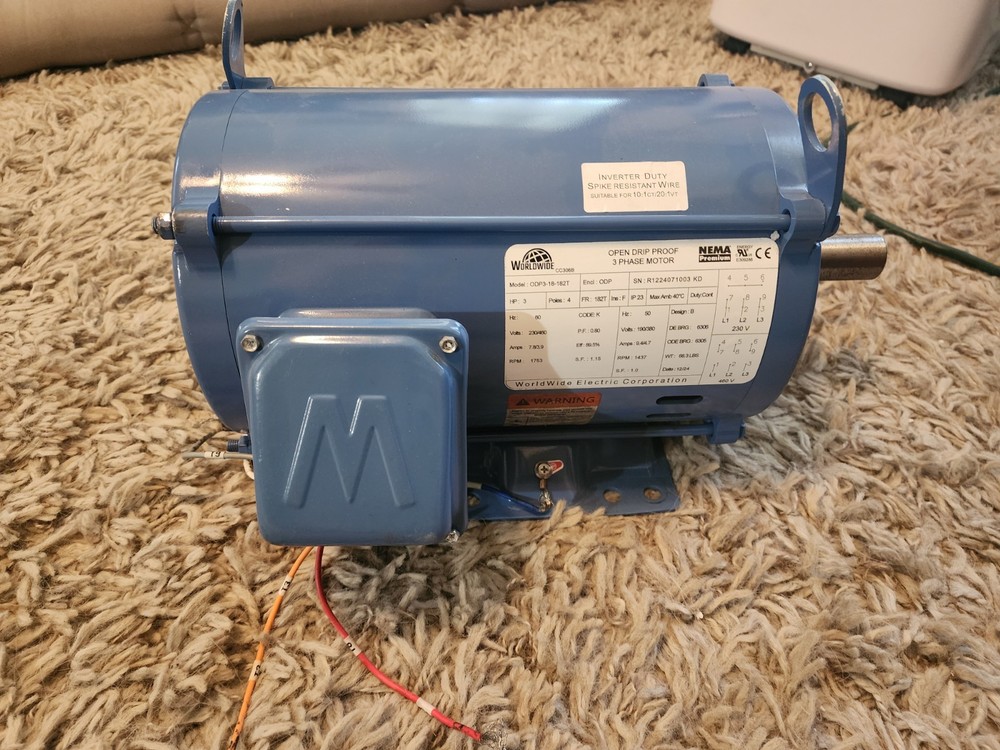

This product is a 3 HP 3 Phase Electric Motor with a base RPM of 1759 and a premium efficiency design. It has an insulation class of F (Max 311°F) and a service factor of 1.15. The motor features a 182T frame size, keyed shaft type, a 1 1/8 inch shaft diameter, and IP23 protection against liquids. It operates at 60 Hz and is designed for general purpose use with a base-mounted style. This electric motor is suitable for industrial automation and motion control applications, offering reliable performance and efficiency. This item comes as pictured. There was an attempt to wire it at some point and you can see bending at the mounts ( could easily be bent back ) but other wise it is unused
