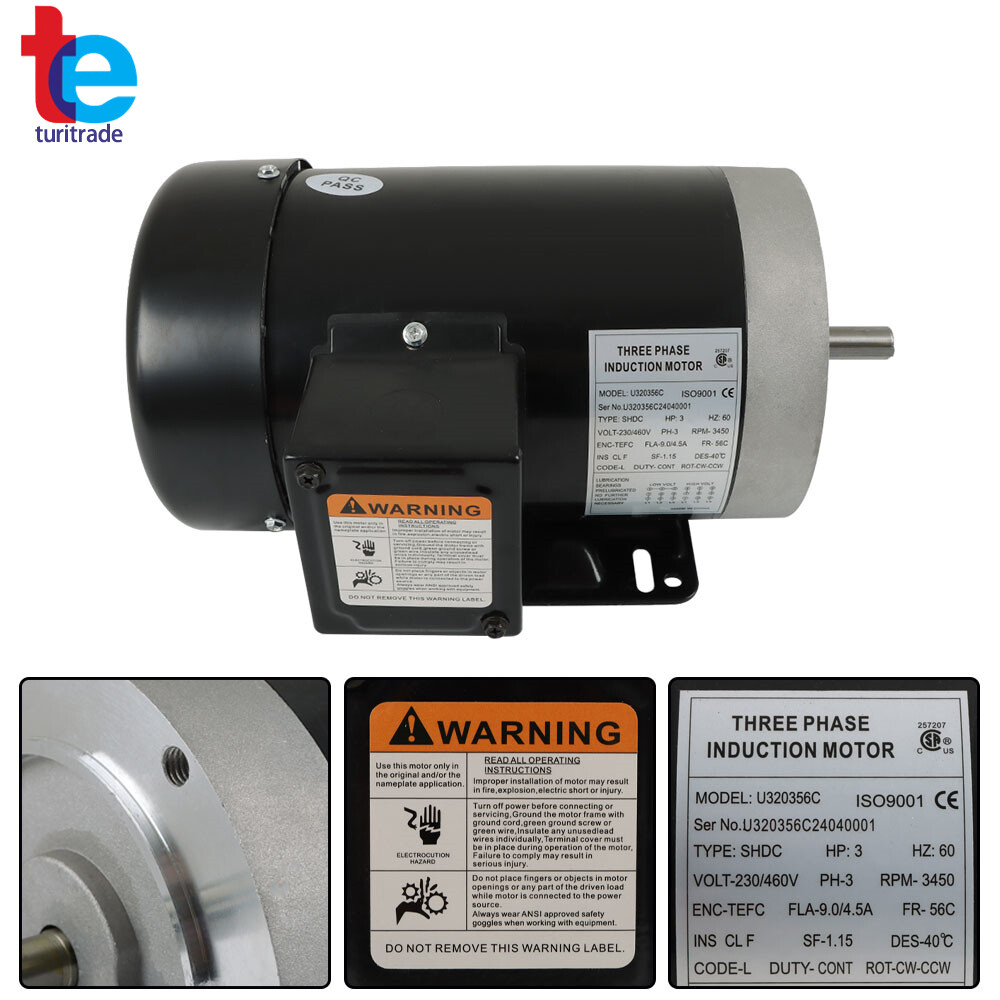

3 HP General Purpose Electric Motor 3 Phase 56C Frame 3450 RPM TEFC 230/460V
USD 250.32 USD
Specifications
| Brand | turitrade |
| MPN | TR69214 |
| Nominal Rated Input Voltage | 208 V/460 V |
| Phase | Three Phase |
| Special Motor Construction | Spindle Motor |
| Shaft Diameter | 5/8 in |
| Shaft Length | 1.88 in |
| Base RPM | 3450 RPM |
| Amps | 9.0 A/4.5 A |
| IEC Frame Size | 56C |
| Frequency Rating | 60 Hz |
| Reversible/Non-Reversible | Reversible |
| Housing Material | Rolled steel shell |
| Model | General electric Motor |
| Mounting Type | Base-Mounted |
| IP Rating | IP55 |
| Insulation Class | F (Max 311°F) |
| Motor Type | Induction/Asynchronous |
| Warranty | 1 Year |
Specification： Frequency Rating：60 Hz Reversible/Non-Reversible：Reversible Nominal Rated Input Voltage：230V/460VV Rated Load (HP)：3 Special Motor Construction：Spindle Motor Shaft Diameter：５/8 in Enclosure Type： TEFC (Totally Enclosed Fan Cooled) Phase：Three Phase Insulation Class：F (Max 311°F) Mounting Type：Base-Mounted Pole :２ Amps：9.0A / 4.5AA Motor Type：Induction/Asynchronous Base RPM：3450RPM IP Rating：IP55 Shaft Length：1.88in Housing Material：Rolled steel shell Model：General electric Motor IEC Frame Size：56C Feature: Amps .
