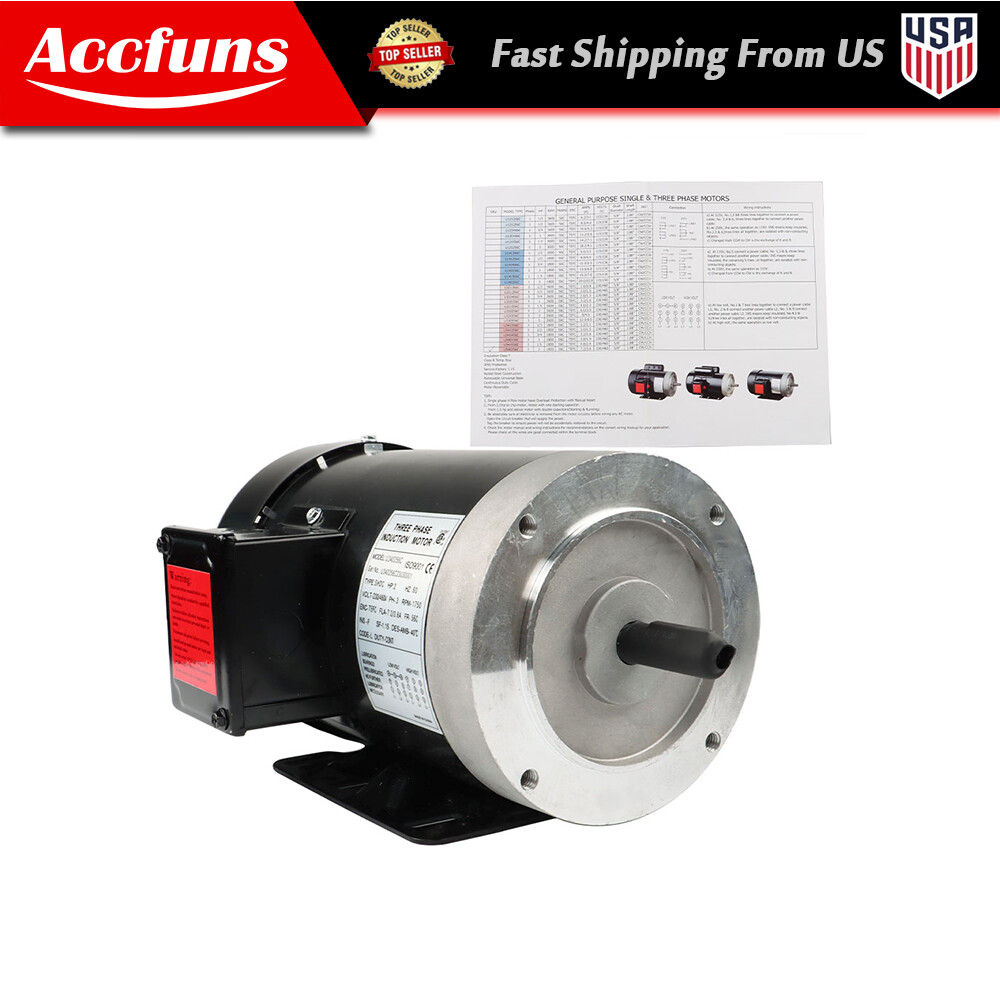

3 Phase 56C Frame 1800 RPM TEFC 230 / 460 Volt 2 HP General Electric Motor New

USD 199.79 USD

SKU: j9v0yVnJ

Brand: munirater

MPN: NATE2-18-56CB

GTIN: Does not apply

Condition: New

Tags: 1.15 1760 230 V, 460 V 5.92 5/8 in 56C 60 Hz 685650077499 Base-Mounted Black F (Max 311°F) Heavy Duty IP43 Keyed munirater NATE2-18-56CB Non-Reversible Not Protected Three Phase

Categories: Metalworking Equipment

Specifications

UPC	685650077499
Brand	munirater
MPN	NATE2-18-56CB
AC Phase	Three Phase
IEC Frame Size	56C
Reversible/Non-Reversible	Non-Reversible
Shaft Type	Keyed
Insulation Class	F (Max 311°F)
Protection Against Liquids	Not Protected
Shaft Diameter	5/8 in
Model	NATE2-18-56CB
Nominal Rated Input Voltage	230 V, 460 V
Service Factor	1.15
AC Frequency Rating	60 Hz
Mounting Type	Base-Mounted
IP Rating	IP43
Base RPM	1760
Full Load Amps	5.92
Color	Black
Design	Heavy Duty

Electric Motor Specifications 2 Horsepower 3 Phase TEFC Fully Enclosed 56C Frame 230/460 Volt 1800 RPM Fan Cooled Class F Insulation C-Face Removable Base Premium Efficiency / Inverter Rated Worldwide Electric Brand Shaft Length: Approximately 1 7/8" Keyed 5/8" Diameter Shaft Current: AC Full Load Amps: 5.92/2.96A (5.56/2.78A) 60 HZ .
