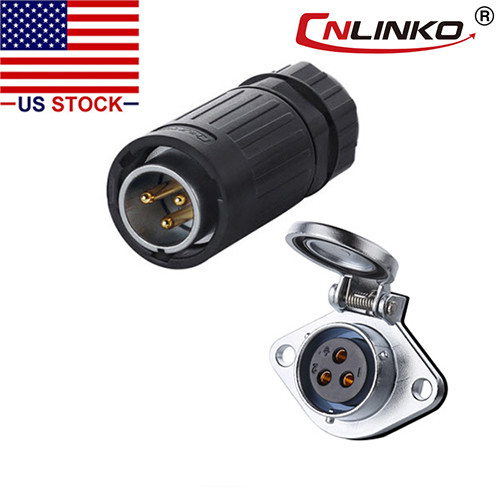

3 Pin Connector Male Plug & Female Socket Outdoor Waterproof IP67 Power Signal
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Compatible Wire Gauge (AWG) | 14-12 AWG |
| Country/Region Of Manufacture | China |
| Minimum Operating Temperature (Actual) | -40°C |
| Minimum Operating Temperature (Nominal) | -40°C |
| Current Type | AC/DC |
| Maximum Operating Temperature (Nominal) | 80°C |
| Connecting Mode | Bayonet Connect |
| Certificate | UL, CE, RoHS |
| Maximum Operating Temperature (Actual) | 80°C |
| IP Rating | IP67 |
| Contact Material | Copper |
| Body Material | ABS & Zinc |
| Brand | CNLINKO |
| Termination Type | Solder |
We are the only authorized eBay retailer for "CNLINKO" brand connector products, with complete warranty. Selling Items Model Number: Plug: YA-20-C03PE-01-001Socket: YA-20-J03SX-03-201 Features: ● 3 cores, in line with the diversity of industrial demand, signal and power compatible match● PBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformation ● Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in current● 1/4 Quick bayonet coupling, simple operation, easy installation● Dustproof cover design under off-working condition● 20A rms current rating ● Protection level:IP67 Specification: Cable specification2.5m㎡～4m㎡/14-12 AWGDiameter range Φ8mm～Φ12mmContact diameter × numberΦ2.7x3Rated Current (A)20AOperating voltage (AC.V.rms)500V Contact resistance<1mΩTemperature rise 20A contact temperature below 30℃,25A ......40℃↓,30A......50℃↓Withstanding Voltage (AC.V) 1 minute2500VInsulation resistance＞500MΩProtection level IP67Durability≥500 timesWorking temperature-40℃～80℃Connecting mode1/4 bayonet connectAssembly wireSolderHousing, the insulating partsHigh-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needlesCopper alloy (gold-plated 4U) Waterproof circleSilica gelFlammability ratingUL94-V0 YA-20 Series Specification Sheet
