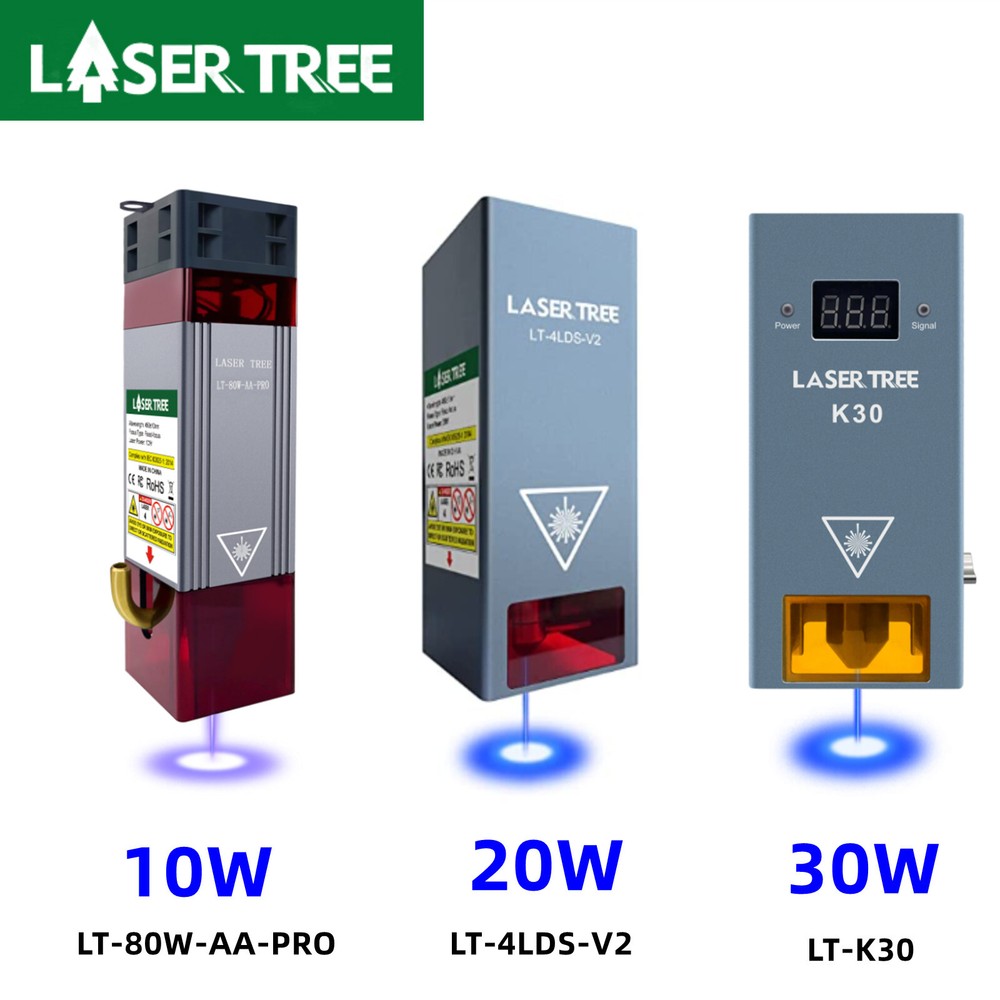

30W 20W 10W Optical Power Laser Module Kit for Laser Cutting Engraver DIY Tool
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Place Of Origin | Guangdong,China |
| Warranty | 1 Year |
| Input Voltage | 12V/24V |
| MPN | DOES NOT APPLY |
| Brand Name | LASER TREE |
| Brand | LASER TREE |
| Power Adjustable | TTL/PWM |
| With FAC Or Not | Yes |
Parameters: Laser Module LT-K30 LT-4LDS-V2 LT-80W-AA-PRO LT-40W-AA Product Name Laser Engraving & Cutting Module Brand LASER TREE Optical Power 30~33W 20W (±1W) 10W (±1W) 5W (±0.5W) Input 24V 5A 24V 4A DC 12V 3A or DC 24V 1.5A 12V 1.5-2A Wavelength 450nm (±10nm) Focus Length 40mm 45mm Air Assistance Built-in Support Power Adjustable TTL/PWM PWM Modulation 0/3~12V, 0~5kHz Fan Speed 9000rpm 10000rpm 10000rpm 9000rpm Operating Temperature 0~60℃ Interface 2EDG-3.81 XH2.54-3P Socket Cable 3PIN, 80cm Material Aluminum & Copper Aluminum Alloy Module Size 66*64*134mm 63*63*145mm 40*40*147mm 40*40*142mm Module Weight 710g 620g 250g 255g Application Engraving & Cutting With FAC or not Yes Operating Software LightBurn, LaserGRBL or other Software Cutting Material Types all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, black acrylic board, cardboard, bamboo chips, leather, some plastic boards, fiberglass board. Notes: Can't deal with White, Blue and Transparent type material. Engraving Material Types all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, bamboo, cardboard, plastic, leather, fiberglass board, aluminum oxide, stainless steel(non-specular surface), ceramics, dark stone. Notes: Can't deal with White, Blue and Transparent type material. Specifications: Model: LT-80W-AA-PRO Most popular 10W laser module for cutting & engraving Features: 1. Meet most of your cutting & engraving needs. 2.With driver adapter and sliding plate, wide electrical and mounting compatibility. 3. Smaller beam size brings superb cutting and engraving effect. 4.Excellent Fan Cooling Design Excellent heat dissipation capability. 5. Air assist improves cutting performance and reduces burnt marks. 6.Prepare a replaceable protective lens for your use. 7.Detachable magnetic cover for anti-blue light view window. 8. Reliable and professional parts replacement & products service system makes it a longer service life. Model: LT-4LDS-V2 More cost-effective 20W Optical Power Laser Cutting Module Features: 1.With driver adapter and sliding plate, wide electrical and mounting compatibility. 2. Enhanced fan cooling system design provides excellent heat dissipation. 3. Air Assistance improves cutting performance and gets clean-cut edges. 4.Input cable and air tube appear orderly through fixed bayonets. 5. With the fixed focus lever, you can easily adjust the fixed focus distance. 6.Prepare a replaceable protective lens for your use. 7. Laser view window with anti-blue Light function. 8. Reliable and professional parts replacement & products service system makes it a longer service life. Model:LT-K30 Mighty 30W Optical Power Laser Module Features: 1.With driver adapter and sliding plate, wide electrical and mounting compatibility. 2.LED "power" and "signal" indicators for easy correct connection check. 3.Advanced dual-fan cooling system design provides excellent heat dissipation. 4.Built-in Air Assistance improves cutting performance and gets clean-cut edges. 5.With the fixed focus lever, you can easily adjust the fixed focus distance. 6.Over-temperature alarm design helps to keep it working at appropriate temperature. 7.Prepare a replaceable protective lens for your use. 8.Enhanced laser view window with fire resistance & anti-blue Light function. 9.Red cross line locating helps to find the correct position quickly and easily. 10.Reliable and professional parts replacement & products service system makes it a longer service life. LT-AP-110V: Description: The air pump is an essential part of the laser module with air assisted. It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges; Protecting the laser head's lens from contamination and extending the laser head's service life. In addition, it can improve the efficiency of laser processing and thus save your time. Features: 1. High-quality materials: metal nozzle, resisting high temperature. 2. Large and steady air output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、faster and cleaner. 3. Low Noise & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively. 4. Rapid Heat Dissipation: Aluminum alloy shell, strong heat dissipation, long lasting and more durable. 5.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle. Specification: Voltage: 220V Power: 16W Exhaust Pressure: 0.03Mpa Exhaust Volume: 30L/min Outlet diameter: 8mm Item Weight: 1.6kg Item Size: 14.5*13*8cm
