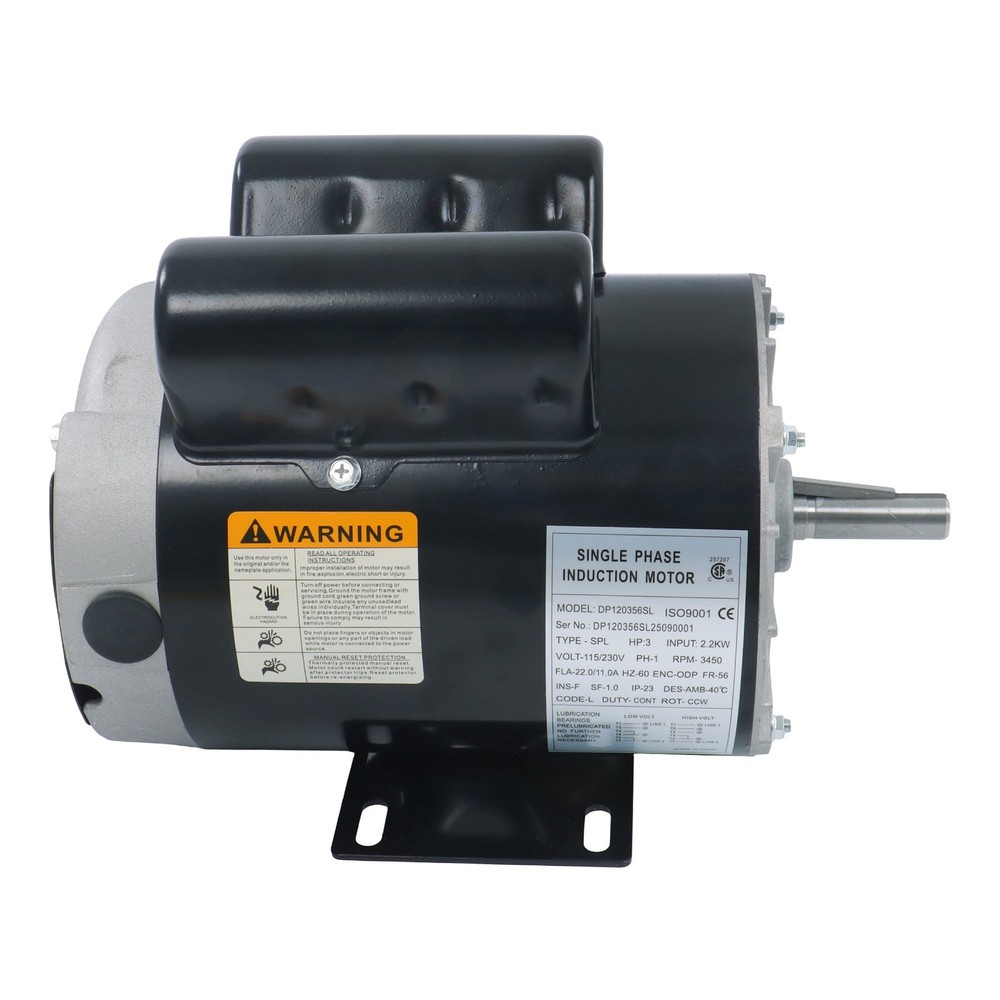

3450 RPM 3HP SPL Electric Motor Compressor Duty 56 Frame 1 Phase 115/230 Volts

USD 104.86 USD

SKU: c6Ir7UjG

Brand: findmall

MPN: IN2937168AL

GTIN: Does not apply

Condition: New

Tags: .75 1 Year 1.0 1.88 inch 115/230, 2.2 kW 22/11.0 A 3450 3600 RPM 3HP SPL 5/8 in 56 Frame 60 Hz DP120356SL electric motor findmall IN2937168AL Induction/Asynchronous IP23 Keyed Non-Reversible ODP (Open Drip-Proof) Rigid Single Phase SPL United States

Categories: Metalworking Equipment

Specifications

Country Of Origin	United States
Brand	findmall
MPN	IN2937168AL
NEMA Frame Suffix	56 Frame
Mounting Type	Rigid
IP Rating	IP23
Type	SPL
Input	2.2 KW
Synchronous Speed	3600 RPM
Shaft Length	1.88 inch
Efficiency	75 %
Actual Rated Input Voltage	115/230,
Rated Load (HP)	3HP SPL
Full Load Amps	22/11.0 A
AC Frequency Rating	60 Hz
Enclosure Type	ODP (Open Drip-Proof)
Base RPM	3450
Shaft Type	Keyed
AC Motor Type	Induction/Asynchronous
Shaft Diameter	5/8 in
Reversible/Non-Reversible	Non-Reversible
Service Factor	1.0
AC Phase	Single Phase
Model	DP120356SL
Manufacturer Warranty	1 year

Specification: Model: CM03256 Type: SPL Input: 2.2 kW Horsepower: 3 HP SPL Voltage: 115/230V Phase: Single Phase, 2 Pole Amperage: 22/11A Rated Speed: 3450 RPM Frequency: 60 Hz Synchronous Speed: 3600 RPM Frame: 56 Frame Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft Shaft Length: 1.875 in / 4.8 cm Rotation: CCW Service Factor: 1 Efficiency: 80% Insulation Class: F Mounting Type: Base-Mounted Enclosure Type: ODP (Open Drip-Proof) IP Rating: IP 23 Current Type: AC Single Phase Electric Motor Sturdy Steel Construction Overload Thermal Protector Fast Heat Dissipation .
