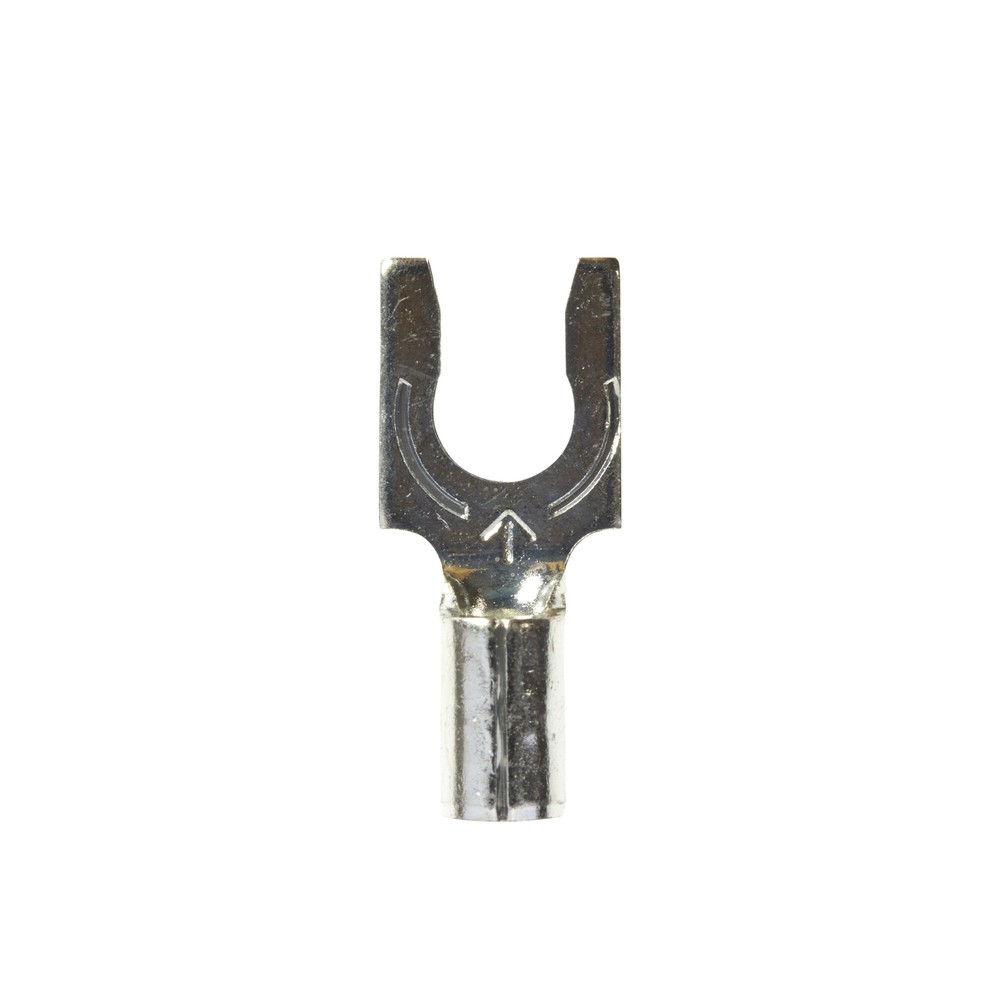

3M Scotchlok Locking Fork, Non-Insulated Butted Seam MU14-8FLK, StudSize 8
USD 181.39 USD
Specifications
| Country Of Origin | United States |
| Brand | Scotchlok™ |
| UPC | 00054007018582 |
| MPN | 7100164064 |
| Barrel Inside Diameter | 0.09 Inch |
| Barrel Length | 0.25 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Clearance (C) | 0.25 Inch |
| Dimension E | 0.5 Inch |
| Fork Type | Locking |
| Insulation Material | Non-insulated |
| Maximum Conductor Size | 14 AWG, 2.08 mm² |
| Maximum Lock Width | 0.34 Inch |
| Minimum Conductor Size | 16 AWG, 1.31 mm² |
| Overall Length | 0.68 in |
| Overall Width | 0.3 in |
| Stud Diameter | 0.164 in, 4.166 mm |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units Per Case | 1000.0 |
| EClass 14 Classification Group | 27400204 |
| Packaging | 1000 per bulk box |
| Lead Time | 8 days |
The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Barrel Style Butted. Fork Type Locking.
