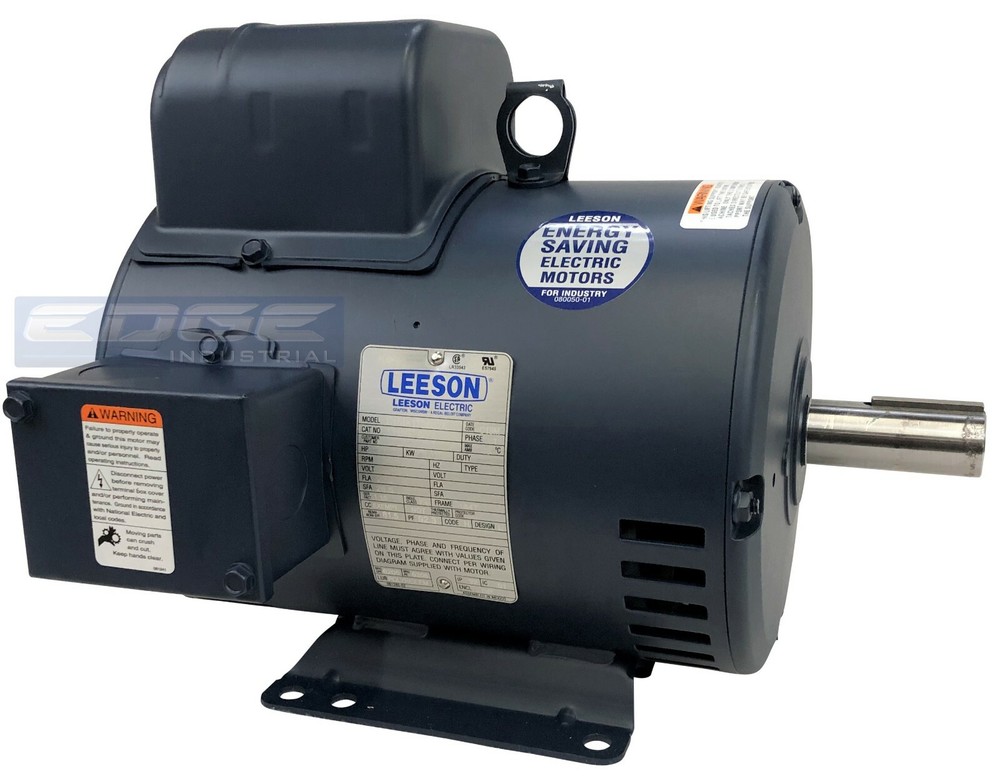

5 HP 1-PH 1725RPM LEESON ELECTRIC COMPRESSOR MOTOR 184T C184K17DB31A 230V 131537
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| AC Motor Type | CONTINUOUS |
| Enclosure Type | ODP (Open Drip-Proof) |
| Model | C184K17DB31A |
| Country/Region Of Manufacture | Mexico |
| AC Frequency Rating | 60 Hz |
| Actual Rated Input Voltage | 208-230V |
| AC Phase | Single Phase |
| Insulation Class | F (Max 311°F) |
| MPN | 131537.00 |
| Rated/Full-Load Torque | 15 FT LBS |
| Shaft Diameter | 1 1/8 |
| Mounting Type | Foot-Mounted |
| Special Motor Construction | COMPRESSOR DUTY |
| Brand | LEESON |
| Reversible/Non-Reversible | Reversible |
| Service Factor | 1.15 |
| Base RPM | 1750 |
| Shaft Type | Keyed |
THIS EBAY LISTING IF FOR A BRAND NEW 5HP LEESON INDUSTRIAL GRADE SINGLE PHASE ELECTRIC MOTOR, MODEL NUMBER 131537.00. THIS MOTOR IS RATED AT 5HP, CAN BE CONNECTED TO 230V INCOMING POWER SUPPLY. THIS MOTOR COMES ON A 184T FRAME AND ROTATES AT 1750 RPM. THIS MOTOR IS REVERSIBLE AND CAN BE WIRED TO ROTATE EITHER CW OR CCW. THIS IS AN OPEN DRIP PROOF MOTOR AND IS INTENDED TO BE USED IN DRY, NON-DUSTY INDOOR ENVIRONMENTS. THIS MOTOR IS BACKED BY A FULL 12 MONTH MANUFACTURERS WARRANTY FROM DATE OF SALE. THIS LEESON COMPRESSOR DUTY MOTOR IS PERFECTLY SUITED TO WITHSTAND THE STARTING TORQUE REQUIREMENTS OF INDUSTRIAL GRADE 5HP PUMPS. THIS LEESON MOTOR IS CAPACITOR START AND RUN. THIS MOTOR IS NOT MADE IN CHINA. PLEASE MAKE SURE THE ELECTRIC MOTOR YOU ARE REPLACING MATCHES THE SPECS SHOWN BELOW BASED ON YOUR EXISTING MOTORS DATA PLATE.WHY YOU ALWAYS NEED A MAGNETIC STARTER ON INDUSTRIAL GRADE MOTORS. A MAGNETIC STARTER IS ALWAYS REQUIRED ON ANY 184T FRAME MOTOR AND LARGER. WIRING AN INDUSTRIAL SIZE MOTOR THROUGH THE PRESSURE SWITCH ALONE, IS NEVER A GOOD IDEA, AND HERE'S WHY. PRESSURE SWITCHES DO NOT COME WITH OVERLOAD PROTECTION FROM POWER SURGE OR LIGHTING. IN ADDITION, PRESSURE SWITCHES HAVE VERY SMALL CONTACT POINTS THAT CONNECT TO THE MOTOR. SMALL CONTACT POINTS CAN STARVE YOUR MOTOR OF THE NECESSARY POWER IT REQUIRES TO START AND RUN NORMALLY. MAGNETIC STARTERS NOT ONLY PROVIDE YOU WITH MOTOR PROTECTION FROM POWER SURGE AND LIGHTING, THEY ALSO HAVE LARGER CONTACT POINTS THAT CONNECT TO YOUR ELECTRIC MOTOR. ALLOWING FOR A STEADY FLOW OF CURRENT THAT AN INDUSTRIAL GRADE MOTOR REQUIRES TO RUN AND ESPECIALLY START UP. BY INCORPORATING A MAGNETIC STARTER WILL ALLOW YOUR MOTOR TO LAST MUCH MUCH LONGER. PLEASE VISIT OUR EBAY STORE FOR THE BEST PRICE AND SELECTION OF MAGNETIC STARTERS. 5HP - 184T FRAME - 1750 RPM - SINGLE PHASE - 230VOLT - 1-1/8" SHAFT DIAMETER - 2.75" SHAFT LENGTH - MADE IN MEXICOPLEASE SEE ATTACHED PICS FOR MOTOR DIMENSIONS AND FRAME DIMENSIONS. IF YOU NEED HELP CHOOSING THE RIGHT MOTOR TO REPLACE YOUR EXISTING MOTOR, WE'RE HERE TO HELP. ATTACH A PIC OF YOUR EXISTING MOTORS DATA PLATE TO THE CONTACT SELLER LINK AT THE TOP OF THE PAGE. TECHNICAL INFO:HORSEPOWER: 5AMPERAGE: 23 @ 208V / 21 @ 230VPHASE: SINGLE PHASEVOLTAGE: 208-230 IF YOUR INCOMING VOLTAGE IS 208V, PLEASE REFER TO LEESON 131560RPM: 1750TORQUE: 15 FT LBSBASE: REINFORCED FIXED BASEFRAME: 184TSHAFT DIAMETER: 1-1/8" KEYED SHAFTSHAFT LENGTH: 2.75"ROTATION: REVERSIBLE CW OR CCW ROTATIONFREQUENCY: 60HZSERVICE FACTOR: 1.15 @ 230V ( 1.0 SERVICE FACTOR AT 208V)ENCLOSURE: ODP OPEN DRIP PROOF CONSTRUCTION: STEEL FRAMEWEIGHT: 86 LBSWARRANTY: 12 MONTH
