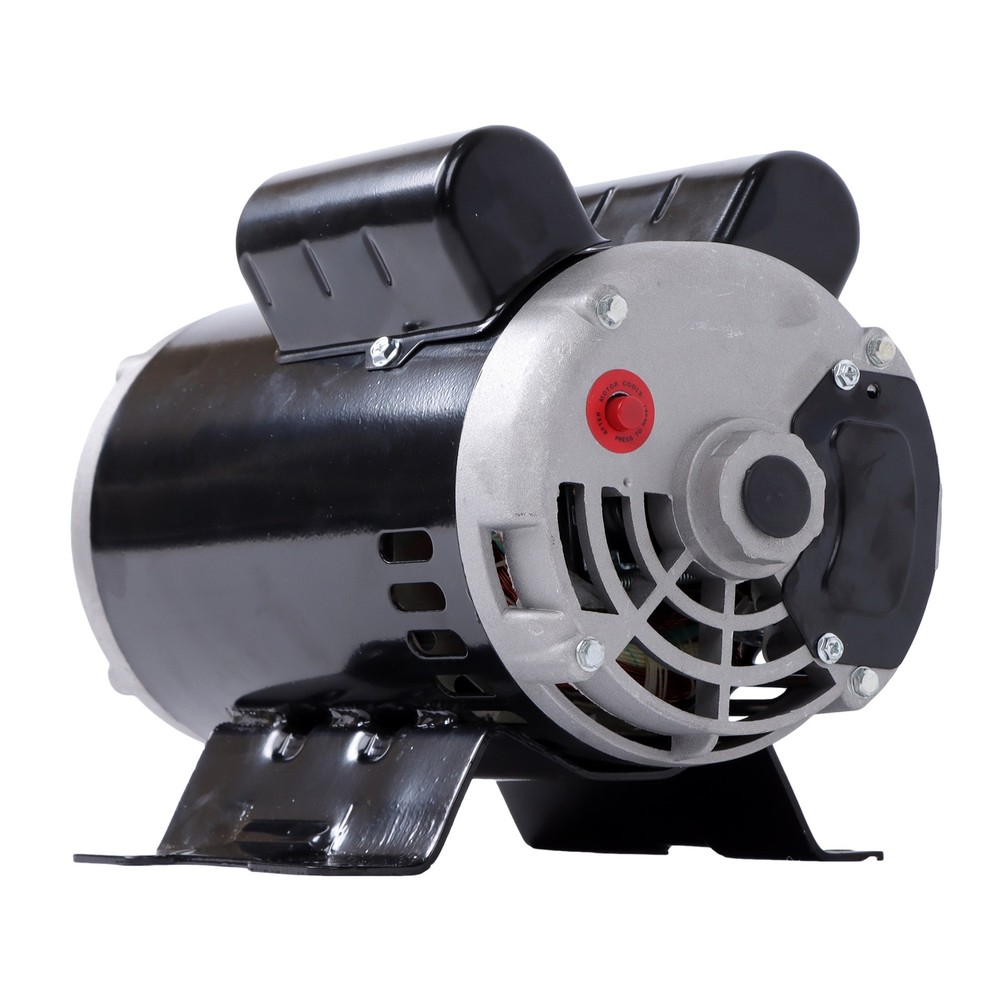

5HP Air Compressor Motor 23378805 54421193 for Ingersoll Rand 230V 3450 Rpm
USD 370.29 USD
Specifications
| Brand | findmall |
| MPN | IN4608162AL |
| Nominal Rated Input Voltage | 230 V |
| Service Factor | 1.15 |
| AC Frequency Rating | 60 Hz |
| Actual Rated Input Voltage | 230V |
| Base RPM | 3450 |
| Shaft Diameter | 7/8'' |
| AC Phase | Single Phase |
| Enclosure Type | DP (Drip-Proof) |
| ROT | CCW DRIVE END |
| FLA | 24.9 |
| Frame Size | 184T |
| Manufacturer Warranty | 1 Year |
Specification: Part Number: 00636OS1XCD182/4Y 54421193, P09988A, CC1021885, 23378805, 23220064, 56283138 SINGLE PHASE MOTOR 5HP Horse Power: 5HP 208/230 VOLT 184 FRAME BOLT PATTERN 3450 RPM 21.9 / 21.1 AMPS 7/8'' SHAFT ROT: CCW DRIVE END ENCL: ODP FLA :24.9 HZ: 60 Service Factor: 1.15 Feature： Brand new, high starting torque design for compressor duty applications. Overload protection with manual reset. Steel frame and base. Welded base. Capacitor start/capacitor run. Package Including： 1*Air Compressor Motor Notes: .
