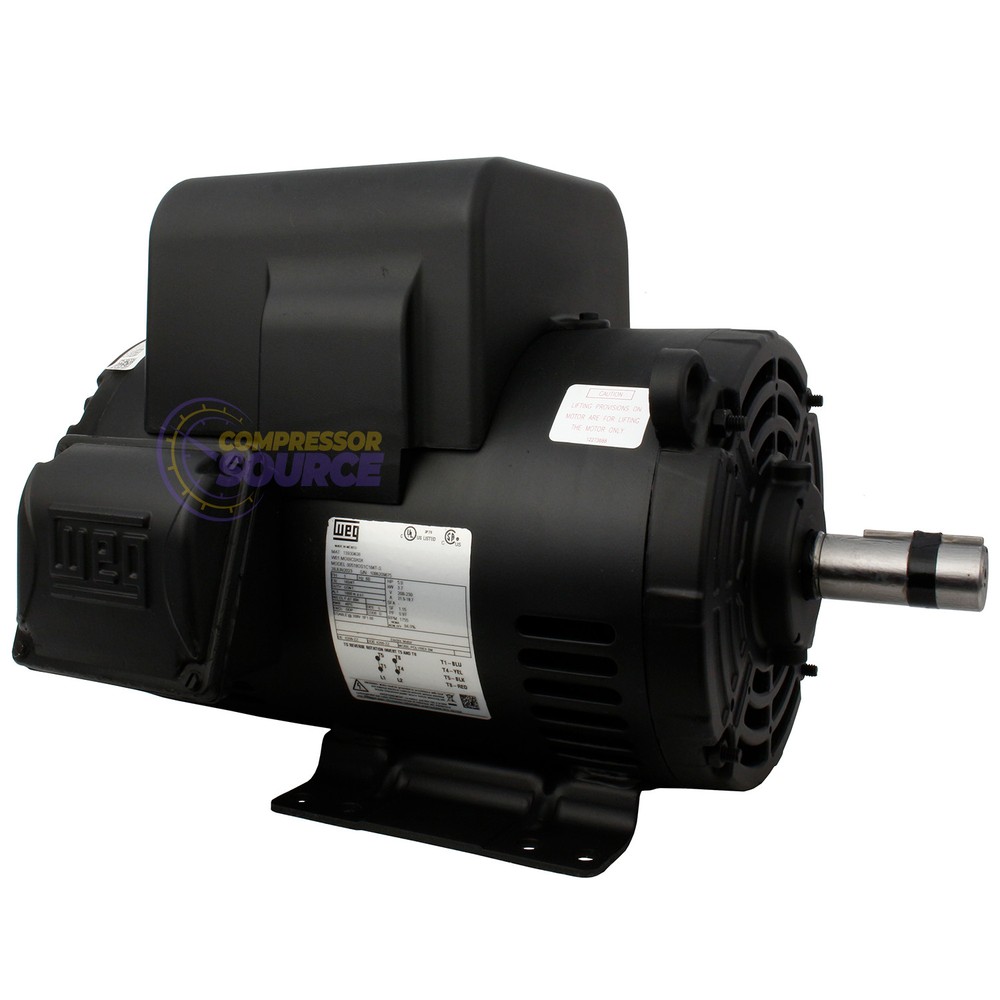

5HP WEG Air Compressor Electric Motor 182/4T Rolled Steel Single Phase 208-230V

USD 595.00 USD

SKU: JMWpMTmU

Brand: WEG

MPN: 00518OS1C184T-S

GTIN: 7909323173800

Condition: New – Open box

Tags: 00518OS1C184T-S 1 1/8 in 1.15 1755 182/184T 208 V 60 Hz 7909323173800 Black electric motor F (Max 311°F) Foot-Mounted Keyed ODP (Open Drip-Proof) Rated Speed: 1755 RPM Reversible Single Unit WEG

Categories: Metalworking Equipment

Specifications

Brand	WEG
Shaft Diameter	1-1/8 in.
Enclosure Type	ODP (Open Drip-Proof)
MPN	00518OS1C184T-S
Model	00518OS1C184T-S
AC Phase	Single
Nominal Rated Input Voltage	208 V
Service Factor	1.15
IEC Frame Size	182/184T
AC Frequency Rating	60 Hz
Reversible/Non-Reversible	Reversible
Mounting Type	Foot-Mounted
Shaft Type	Keyed
Insulation Class	F (Max 311°F)
Base RPM	1755
Unit Type	Unit
Color	Black
Features	Rated Speed: 1755 RPM
Design	Electric Motor
UPC	7909323173800

This listing is for an open box WEG 5 horsepower air compressor motor model number 00518OS1C184T-S, this motor is 208-230 volt, 21.5-19.7 full load AMPS, 60 Hz, 184T Frame, single phase, 1 1/8" diameter shaft, and 1755 RPM. This motor is specifically designed for use with air compressors to meet start-up load/torque specifications. This motor can rotate in either direction and has a foot-mounted design to make installation easy. This can replace a higher rpm motor, you will just have to use a larger pulley to make up the RPMs on your compressor.
