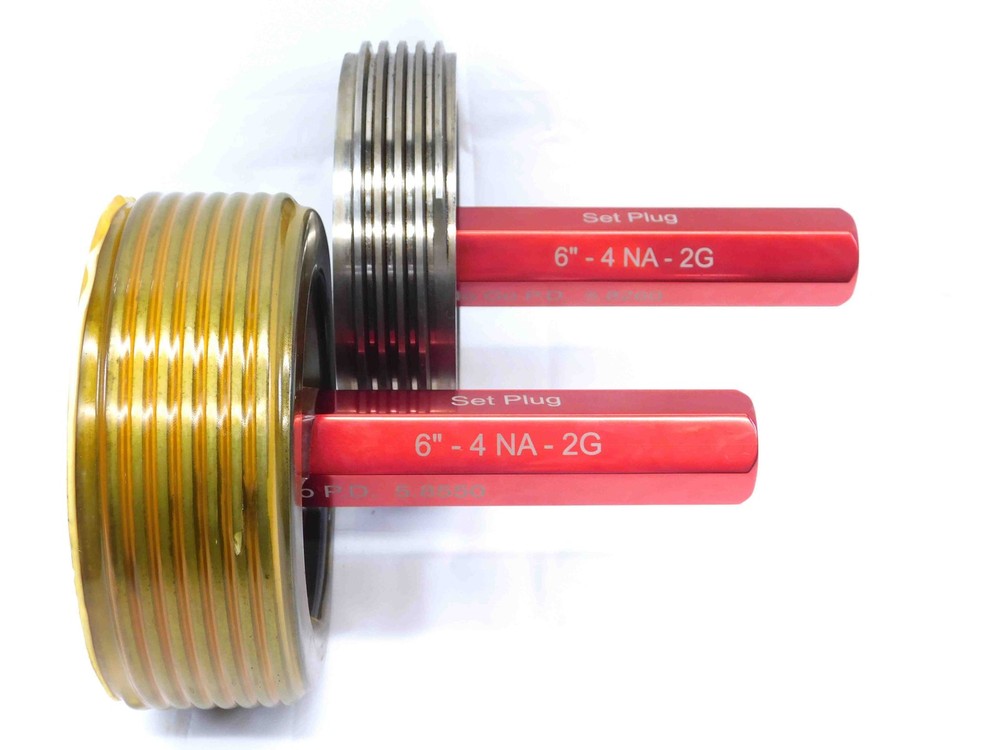

6″ 4 NA 2G ACME SET THREAD PLUG GAGE 6.0 4. GO NO GO P.D.’S = 5.8550 & 5.8260

6″ 4 NA 2G ACME SET THREAD PLUG GAGE 6.0 4. GO NO GO P.D.’S = 5.8550 & 5.8260

USD 899.99 USD
SKU: pdGf0UjK
Brand: M & J Tooling LLC
MPN: JG2827CG4
Condition: Used
Tags: 5.8260 5.8550 6.0 g-cm JG2827CG4 M & J Tooling LLC NA 2G
Categories: Medical, Lab & Dental Supplies

Specifications

ManufacturerM & J TOOLING LLC
BrandM & J Tooling LLC
MPNJG2827CG4
Thread ClassNA 2G
Go Pitch Diameter5.8550
No Go Pitch Diameter5.8260

GO NO GO P.D.'S = 5.8550 & 5.8260. SET THREAD PLUG GAGE. STANDARD 2G PD'S ARE 5.8554 (-.0011) & 5.8257 (+0011). THESE PD'S ARE WITHIN STANDARD 2G TOLERANCES. 6" - 4 NA - 2G. ”Gage was protected very good.
