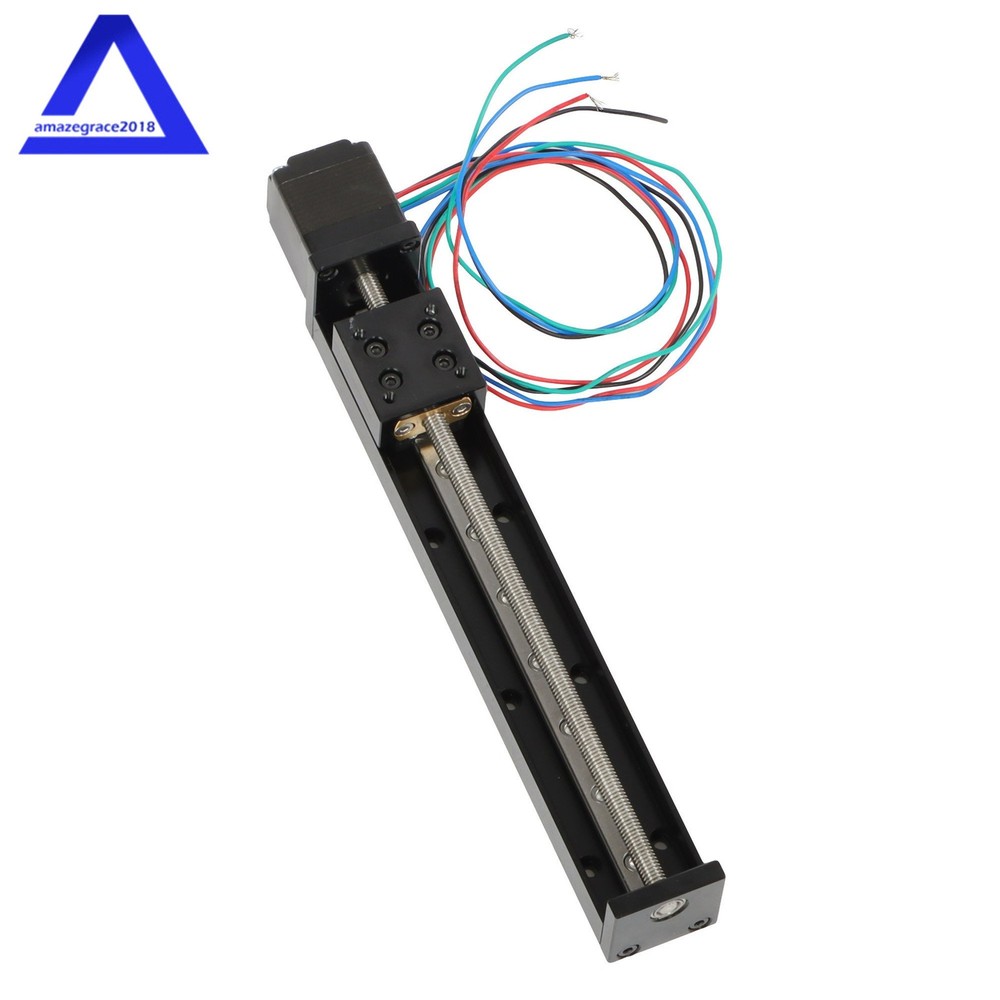

6″ mini Linear Rail Guide Slide Actuator T6×1 Lead Screw w/ NEMA11 Stepper Motor

USD 44.17 USD

SKU: DJZxyJjp

Brand: marddpair

MPN: AMZ1858073

GTIN: Does not apply

Condition: New

Tags: 0.6A 1 Year 1.8 degree 150mm 225mm 28 g/cm 3.2 mH 30mm 4Pcs 5.5 ohm 6N.cm 8g.cm about 380g AMZ1858073 DC 24V linear system moulde marddpair United States 鈥�28mm

Categories: Metalworking Equipment

Specifications

Country Of Origin	United States
Brand	marddpair
MPN	AMZ1858073
Effective Travel Length	150mm
Type	linear system moulde
Total Length	225mm
Weight	about 380g
Step Angle	1.8 degree
Motor Voltage	DC 24V
Warranty	1 Year
Motor Flange Size	鈥�28mm
Motor Length	30mm
Holding Torque	6N.cm
Current	0.6A
Resistance	5.5 ohm
Inductance	3.2 mH
Rotor Inertia	8g.cm
Lead Wire	4pcs

Description: The Linear Guide Material: made of high quality metal,surface oxidation treatment,high hardness and excellent performance. Effective Travel: 150mm Effective Travel, T6x1: diameter 6mm and lead 1mm pitch 1mm ( The lead screw moves 1mm in one turn). High Precision: Linear Guide Repeat positioning accuracy of ±0.05mm, linear slide rail with high precision smooth movement. Load: Horizontal maximum load capacity: 2.5kg; Vertical maximum load capacity: 1kg; Speed: 0-10mm/s. Widely used for CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement. .

6″ mini Linear Rail Guide Slide Actuator T6×1 Lead Screw w/ NEMA11 Stepper Motor
