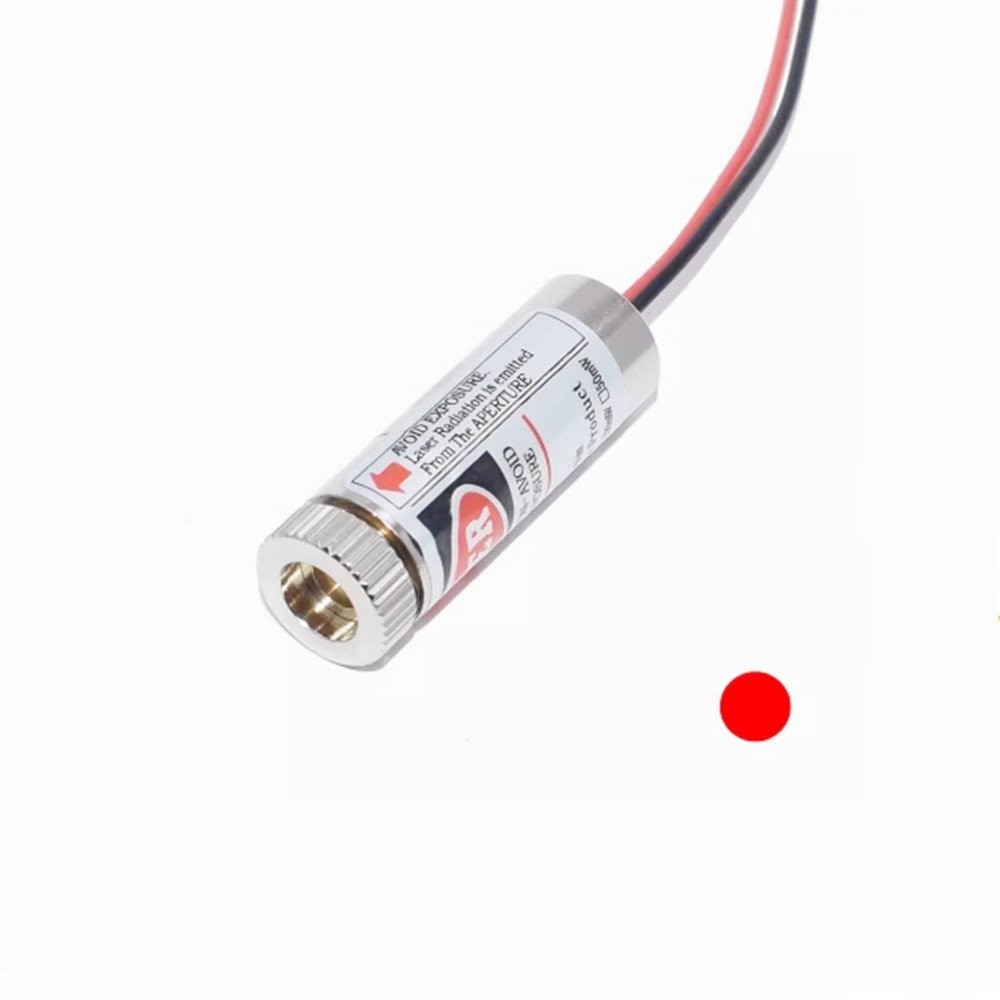

650nm 5mW Red Dot Laser Module 12mm Brass APC Driver 3-6V DC Adjustable Focus
USD 8.49 USD
Specifications
| Brand | Envistia |
| Power Dissipation | 5 mW |
| Type | Laser Diode |
| Diode Configuration | Single |
| Packaging | Bag |
| Peak Forward Voltage | 5 V |
| Maximum Continuous Current | 30 mA |
| Country Of Origin | China |
| Wavelength | 650 nm |
650nm 5mW red DOT laser module, 12mm brass housing, APC driver for stable output. Runs 3V-6V DC, max 40mA. Adjustable focus ring. Pre-wired 135mm leads. WARNING: Metal case is NOT isolated - tied to anode. Do not let case touch grounded metal or it will short and damage the module. Specs: 650nm wavelength, max 5mW (Class IIIa/3R), 12mm dia x 35mm length (0.47 x 1.38 in), 13.5g weight, 135mm lead length. Compatible with Arduino, ESP32, Raspberry Pi (use transistor for Pi). Great for pointing, targeting, alignment reference points, and laser tripwire projects. Ships fast from Colorado, USA.
