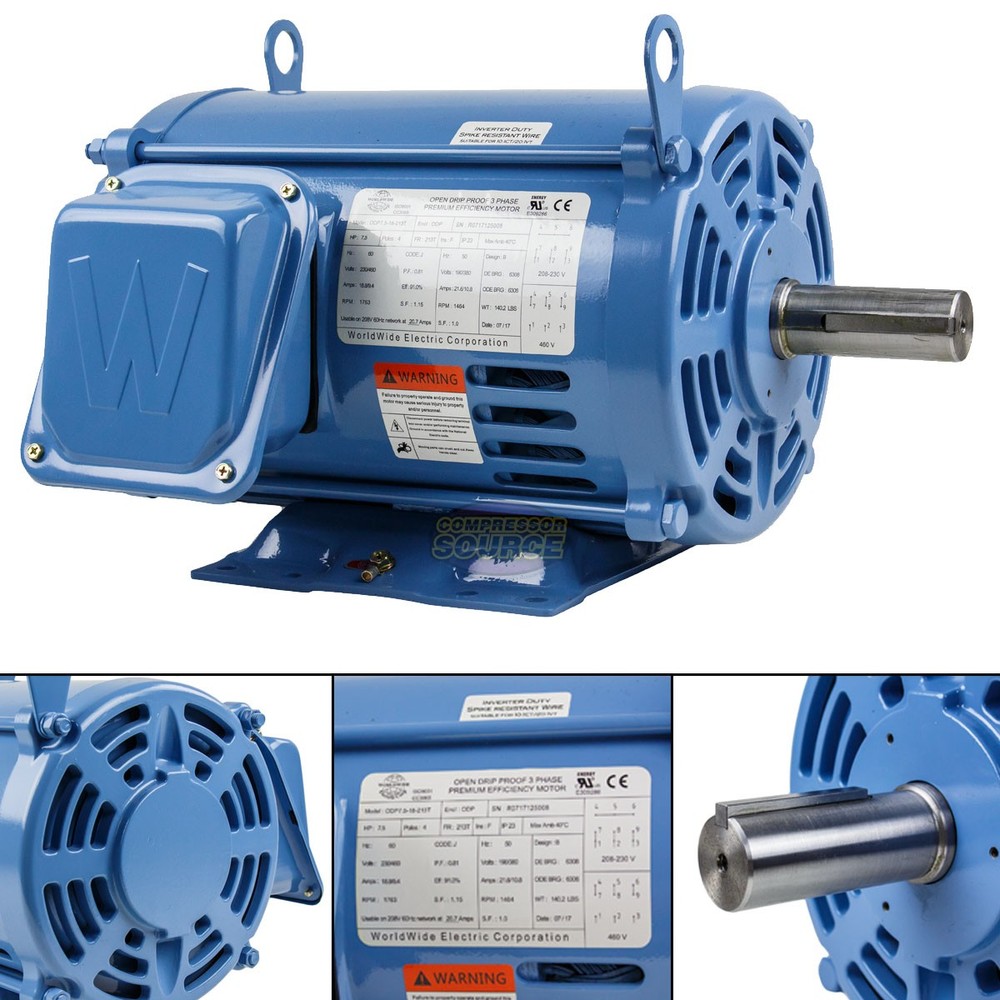

7.5 HP 3 Phase Electric Motor 1800 RPM 213T Frame ODP Open Drip Proof 230/460V

USD 869.00 USD

SKU: G4xE7ImA

Brand: Worldwide Electric

MPN: ODP7.5-18-213T

GTIN: 685650079462

Condition: New

Tags: 1-5/16" 1.15 1763 18-8 213T 230 V, 460 V 60 Hz 685650079462 7-1/2" 7.5 Horsepower, 3 Phase Base-Mounted Blue electric motor F (Max 311°F) IP23 Keyed Non-Reversible Not Protected ODP (Open Drip-Proof) ODP7.5-18-213T Premium Efficiency Three Phase Worldwide Electric

Categories: Metalworking Equipment

Specifications

Brand	Worldwide Electric
Shaft Diameter	1 5/16
Enclosure Type	ODP (Open Drip-Proof)
MPN	ODP7.5-18-213T
Model	ODP7.5-18-213T
Rated Load (HP)	7 1/2
AC Phase	Three Phase
Nominal Rated Input Voltage	230 V, 460 V
Service Factor	1.15
IEC Frame Size	213T
AC Frequency Rating	60 Hz
Mounting Type	Base-Mounted
Reversible/Non-Reversible	Non-Reversible
Shaft Type	Keyed
IP Rating	IP23
Insulation Class	F (Max 311°F)
Protection Against Liquids	Not Protected
Base RPM	1763
Full Load Amps	18.8
Type	Electric Motor
Color	Blue
Features	7.5 Horsepower, 3 Phase
Design	Premium Efficiency
UPC	685650079462

7.5 horsepower, open drip proof, 3 phase premium efficiency electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor (1.00 at 50Hz), and is a premium efficiency motor. Designed for 60Hz, features an ODP enclosure, and is a 213T frame.

7.5 HP 3 Phase Electric Motor 1800 RPM 213T Frame ODP Open Drip Proof 230/460V
