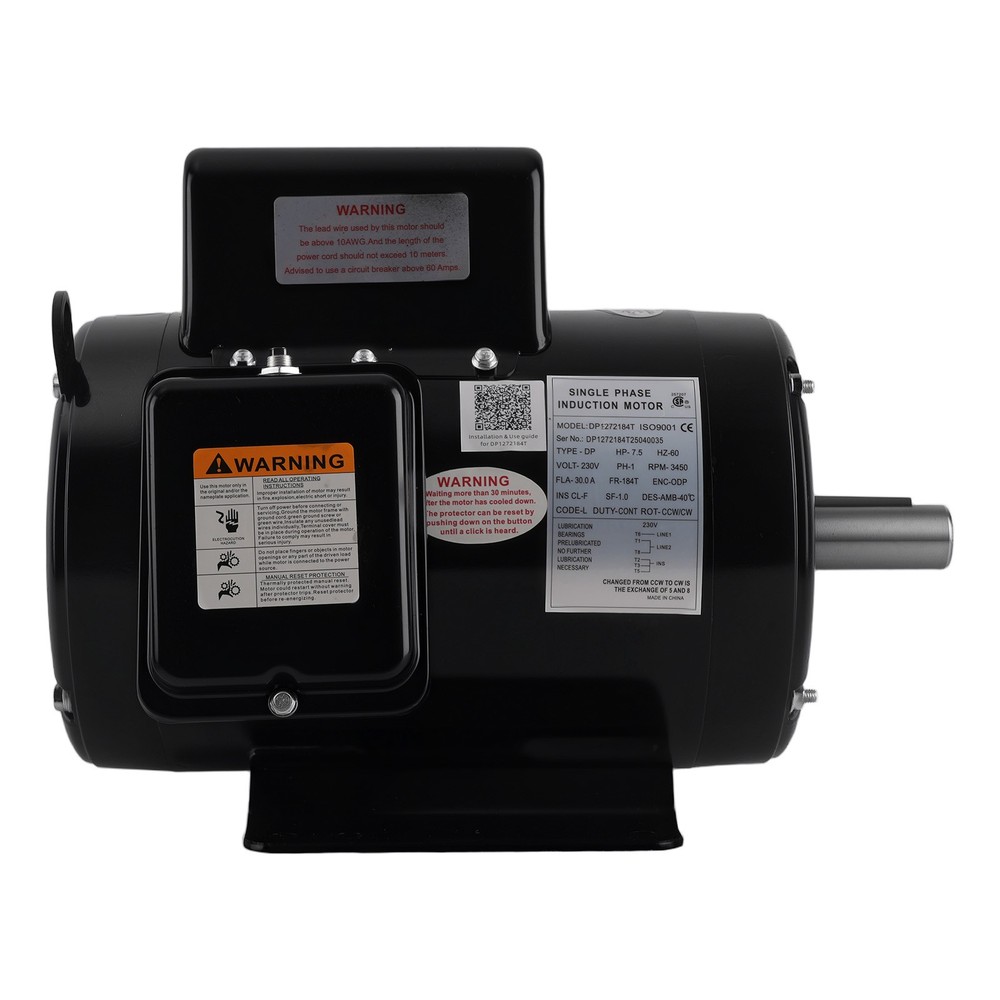

7.5HP Air Compressor Electric Motor 230V 3450RPM 184T Frame CW/CCW Rotate 1-1/8″
USD 375.99 USD
Specifications
| AC Phase | Single Phase |
| Base RPM | 3450 RPM |
| Brand | BFO |
| Duty | Cont. Compressor |
| Enclosure Type | Open Drip Proof (ODP) |
| Fitment Type | Direct Replacement |
| Full Load Amps | 30A |
| IEC Frame Size | 184T Frame |
| Manufacturer Part Number | NCT5G7 |
| Manufacturer Warranty | 1 Year |
| Mounting Type | Base-Mounted |
| NEMA Frame Suffix | 184T |
| Nominal Rated Input Voltage | 208 V, 230 V |
| Note | No Instruction Included |
| Rated Load (HP) | 7.5 |
| Reversible/Non-Reversible | Reversible |
| Rotation | CW/ CCW |
| Shaft Diameter | 1-1/8" |
| Shaft Length | 2.75" |
| Shaft Type | Keyed |
| Surface Finish | Brand New |
| Voltage | 230 Volts |
| Country Of Origin | China |
Specification: Rated Load (HP): 7.5 Horse Power Current Type: AC AC Phase: Single Phase IEC Frame Size: 184T Frame NEMA Frame Suffix: 184T Enclosure Type: ODP (Open Drip-Proof) Base RPM: 3450 RPM Inverter/Vector Duty Rating: No Nominal Rated Input Voltage: 208/ 230 Volts Full Load Amps: 30A Shaft Diameter: 1-1/8" Keyed Shaft Shaft Length: 2.75" Shaft Type: Keyed Insulation Class: F Reversible/Non-Reversible: Reversible Rotation: CW/ CCW.
