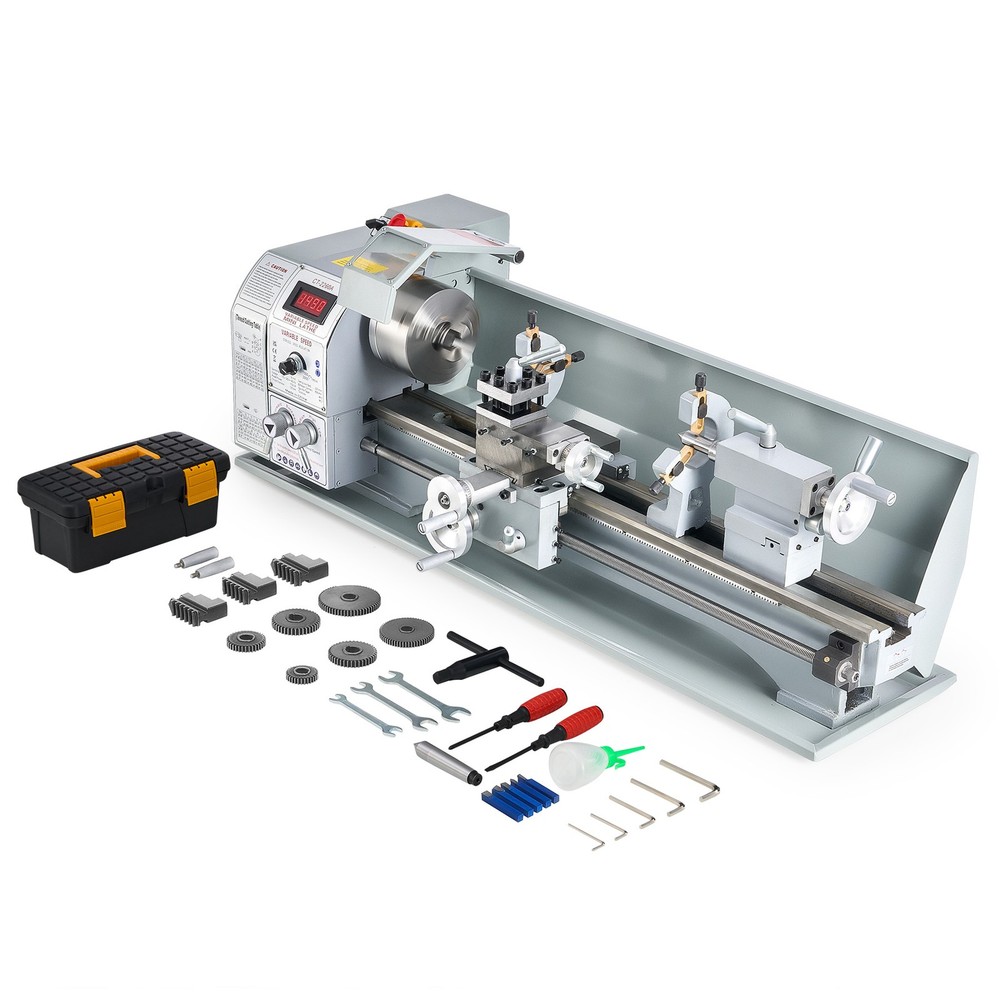

9×24″ Mini Metal Lathe 1100W DC Motor 3-Jaw Chuck LCD Display Metalworking

USD 1097.09 USD

SKU: JoxWEFlX

Brand: Creworks

Condition: New

Tags: 0.01mm 0.5-2.5 mm 1 Year 1.5" (φ38mm) 1.5HP (1100W) 10-44 tpi 110V/60HZ 158.7 lb (72 kg) 21 in - 30 in 23.6 in / 600 mm 2501 - 3000 4.92" (125mm) 5 in 50-2250±10% RPM 8.7 in. (220 mm) Automatic CREWORKS DC Moter Metal Metal Lathe Metalworking MT2 MT5 Single

Categories: Heavy Equipment, Parts & Attachments

Specifications

Metric Thread Range	0.5-2.5 mm
Inch Thread Range	10-44 tpi
Warranty	1 Year
Brand	Creworks
Max Spindle Speed (RPM)	2501 - 3000
Chuck Size	5 in
Control	Automatic
Treated Material	Metal
Phase	Single
Machine Type	Metal Lathe
Distance Between Centers	21 in - 30 in
Motor Type	DC Moter
Motor Power	1.5HP (1100W)
Voltage	110V/60Hz
Spindle Bore	1.5" (φ38mm)
Chuck Diameter	4.92" (125mm)
Taper Of Spindle	MT#5
Taper Of Tailstock	MT#2
Spindle Speed	50-2250±10% RPM
Spindle Accuracy	0.01mm
Gear Material	Metal
Net Weight	158.7 lb. (72 kg)
Swing Over Bed	8.7 in. (220 mm)
Center Distance	23.6 in. (600 mm)

Rated Power: 1100W. It provides an 8.7 in. swing over bed and 23.6 in. distance between its centers with a 1.5 in. spindle bore. Its granular precision is especially useful for jobs requiring high accuracy such as threading.
