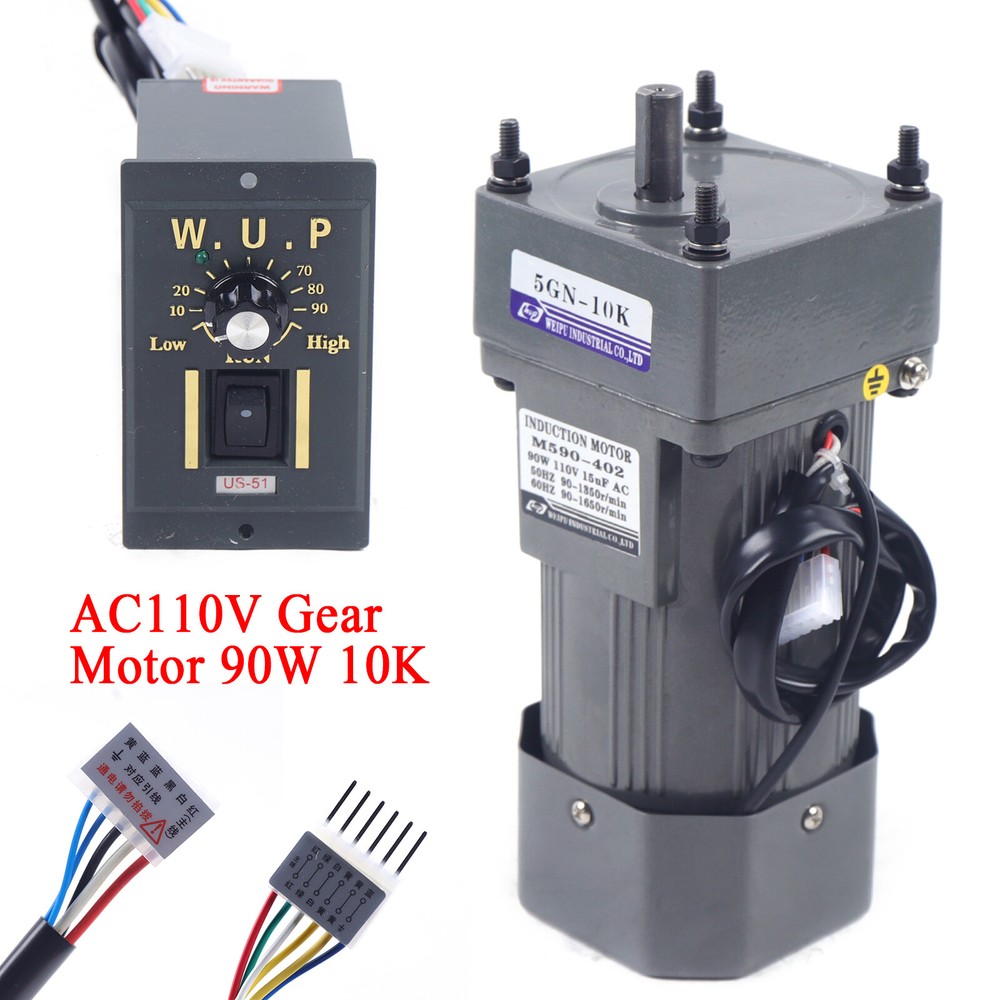

AC Gear Motor Electric Variable Speed Controller Torque 90W 1:10 0-135RPM 110V
Specifications
| Note: | Do not send to Brazil |
| Item Location: | CA /NJ /Austell |
| Transportation Does Not Include: | canarias |
| Wattage | 90W |
| Is The Motor Reversible | YES |
| Gear Ratio | 1:10 |
| Torque | 5.7nm |
| Geared Motor Size | 164MM * 90MM *74MM |
| Rated Speed | 0-135RPM |
| Reduction Ratio | 1:10(10K) |
| Power Phase | single-phase |
| Brand | Unbranded |
| Voltage | 110 V |
| Name | geared motor |
| Nominal Rated Input Voltage | 110 V |
| Reversible/Non-Reversible | Reversible |
| AC Phase | Single Phase |
| Base RPM | 135RPM |
| Rated/Full-Load Torque | 5.7nm |
| Shaft Diameter | 12mm |
| Reducer Size | 41*90*74mm |
| AC Motor Type | AC gear motor |
| 🔥Warranty 🔥 | 3 Years |
90W 110V gear motor electric motor 1:10 135RPM Warm note: Our products are divided into two packages. If you are short of one package for the time being, please contact our customer service to check whether another package is on the way. Specification: Name: AC gear motor Rated voltage: 110V Rated speed: 0-135 RPM Reduction ratio: 1:10（10K） Torque: 5.7nm Power Phase: single-phase Shaft diameter：12mm geared motor size：164MM * 90MM *74MM Reducer size: 41*90*74mm Features: Flexible installation Efficient works Torque large Smooth operation Long working life Packing list: 1 x motor 1 x reducer 1 x speed controller Note: Under different deceleration ratio, the output shaft speed is different. The output shaft speed is equal to the motor speed of 1350 rpm.
