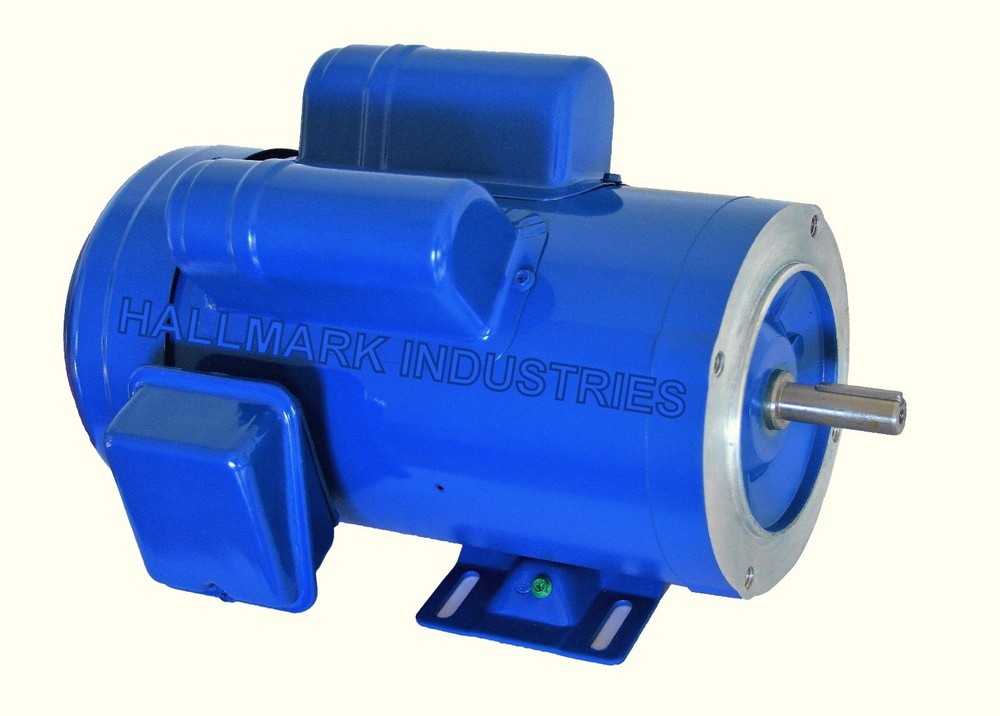

AC MOTOR, 1.5HP, 1725RPM, 1PH, 115V/208-230V, 56C/TEFC, With base
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| AC Frequency Rating | 60 Hz |
| MPN | MA0515A |
| Insulation Class | F (Max 311°F) |
| Shaft Type | Keyed |
| Nominal Rated Input Voltage | 110 V |
| Service Factor | 1.15 |
| Model | MA0515A |
| Reversible/Non-Reversible | Reversible |
| AC Motor Type | Induction/Asynchronous |
| Shaft Diameter | 5/8 in |
| Brand | Hallmark Industries |
| Rated Load (HP) | 1 1/2 |
| AC Phase | Single Phase |
| Mounting Type | Base-Mounted |
AC Motor, 1.5HP, 1725RPM, 1PH/60HZ, 115V/208-230V, 56C/TEFC, Capacitor Start and capacitor run, with removable foot, SF 1.15. This motor has two capacitors. 30 days worry free return policy!Warranty: 12 months Normal 0 false false false EN-US ZH-CN X-NONE MicrosoftInternetExplorer4 HP 1.5 Voltage 115V/208-230V RPM 1725 Phase 1 Frame 56C Hertz 60 Enclosure TEFC Full Load Amp 18/9.0 Overload None Shaft Size 5/8” Service Factor 1.15 C dimension 15.1” (Max) Return policy 30 days Weight 44 lbs Warranty 12 months Features Totally Enclosed Fan Cooled (TEFC) enclosureDual capacitor: capacitor start and capacitor run Dual mounting with NEMA 56C and removable baseClass F winding insulationDual voltage for 115V or 230VRolled steel shell frame / cast aluminum end bellRemovable base / bolt-on/bolt-off mounting feetLarge all-metal capacitor cover with rubber gasketLarge easy-to-wire junction box with rubber gasketHeavy duty oversized ball bearingsHigh tensile strength steel shaftElectrically reversible by easily switching the wires.NEMA design BService Factor: 1.15 (For faster delivery, please use your commercial address when your order. Thank you!)
