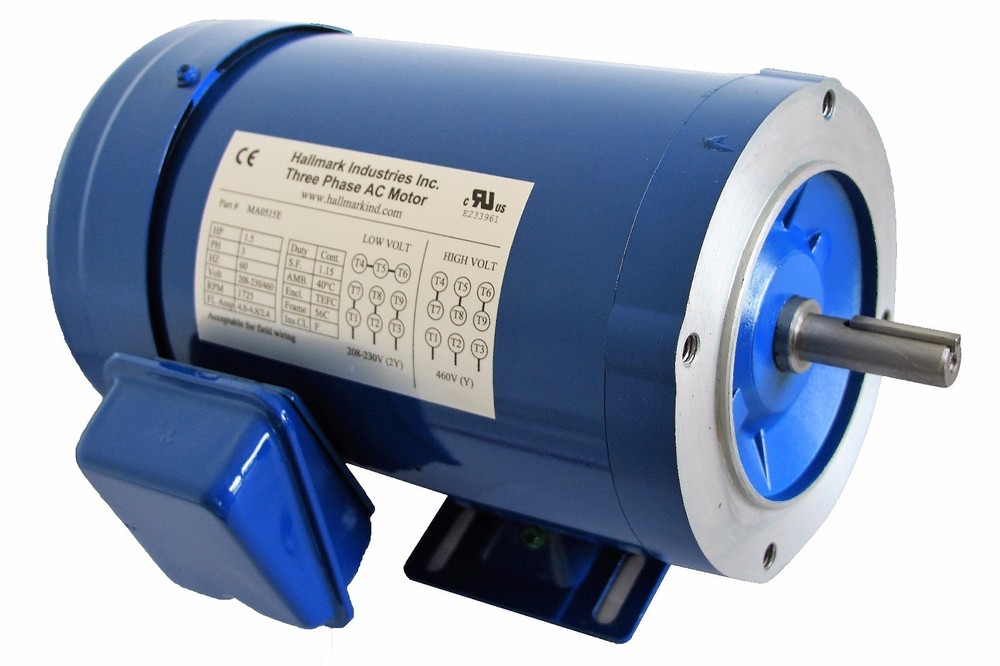

AC MOTOR, 2HP, 1725RPM, 3PH, 206-230V/460V, 56C/TEFC, WITH BASE
Specifications
| Restocking Fee | 20% |
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Inverter/Vector Duty Rating | Inverter Duty |
| Special Motor Construction | Severe Duty Motor |
| AC Frequency Rating | 60 Hz |
| AC Motor Type | Induction/Asynchronous |
| Shaft Diameter | 5/8 in |
| MPN | MA0520E |
| Mounting Type | Base-Mounted |
| DC Stator/Winding Type | Series Winding |
| Brand | Hallmark Industries |
| Reversible/Non-Reversible | Reversible |
| Service Factor | 1.15 |
| Nominal Rated Input Voltage | 460 V |
| Model | MA0520E |
| Starting/Locked Rotor Torque | 31.6 |
| AC Phase | Three Phase |
This motor is for 3 phase, 206-230V/460V General purpose, AC Motor, 2HP, 1725RPM, 3PH/60HZ, 460V, 56C/ TEFC, F Insulation (for inverter duty), with removable foot, 1.15 Service Factor, Rolled Steel Frame, Reversible Rotation, 10:1 Variable Torque Rating, 2:1 Constant torque Rating. 30 days worry free return policyWarranty: 12 months Dimension Sheet Features Totally Enclosed Fan Cooled (TEFC) enclosureDual mounting with NEMA 56C and removable baseClass F winding insulation Inverter duty Rolled steel shell frame / cast aluminum end bellRemovable base / bolt-on/bolt-off mounting feetLarge all-metal capacitor cover with rubber gasketLarge easy-to-wire junction box with rubber gasketHeavy duty oversized ball bearingsHigh tensile strength steel shaftElectrically reversibleNEMA design BService Factor: 1.15 285 7772400 10058400 259 261 257 280 262 283 1 0*8WR-YXRC420W200L(KP60 5 1 0 286 False 0 0 -1 304800 243 True 128 77 255 3175 3175 70 True True True True True 282 134217728 8 Empty 16711680 52479 26367 13421772 16737792 13382502 16777215 蓝鸟 -87325200 -87325200 (`@````````` 267 263 5
