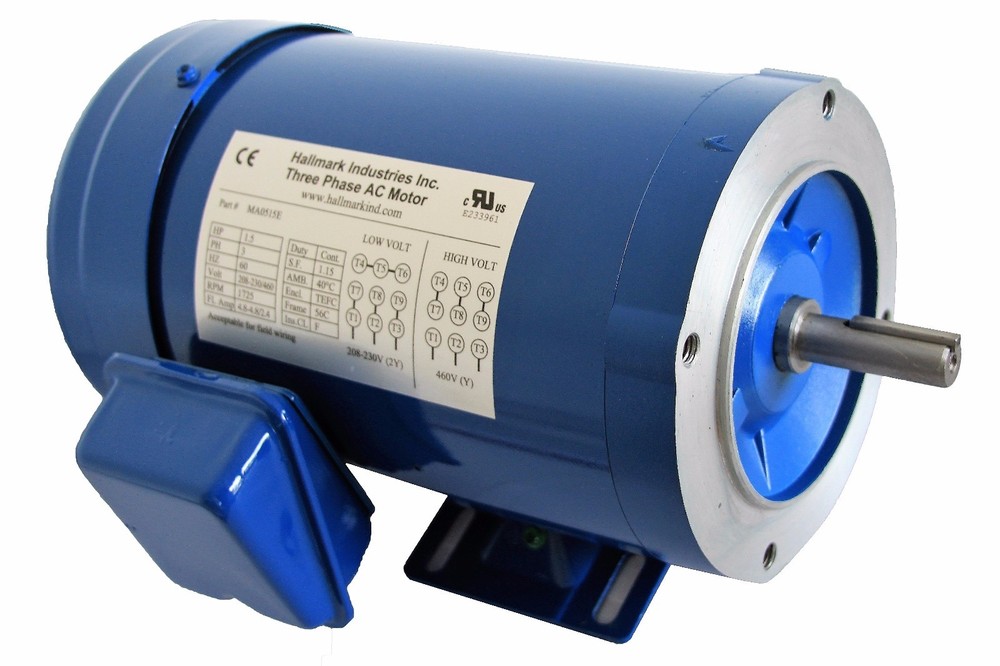

AC MOTOR, 2HP, 3450 RPM, 3PH, 208-230V/460V, 56C/TEFC, WITH BASE
Specifications
| Restocking Fee | 20% |
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Insulation Class | F (Max 311°F) |
| Service Factor | 1.15 |
| Model | MA0520F |
| Shaft Diameter | 5/8 in |
| Base RPM | 3450 RPM |
| MPN | MA0520F |
| Mounting Type | Flange-Mounted |
| Brand | Hallmark |
| Reversible/Non-Reversible | Reversible |
| Nominal Rated Input Voltage | 460 V |
| Starting/Locked Rotor Torque | Steel |
| AC Frequency Rating | 60 Hz |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| AC Phase | Three Phase |
General purpose, AC Motor, 2HP, 3450 RPM, 3PH/60HZ, 208-230V/460V, 56C/ TEFC, F Insulation (for inverter duty), with removable foot, 1.15 Service Factor, Rolled Steel Frame, Reversible Rotation, 10:1 Variable Torque Rating, 2:1 Constant torque rating. 30 days worry free return policy SPECIFICATIONS HP 2 Voltage 208-230/460VAC RPM 3450 Phase 3 Frame 56C Hertz 60 Enclosure TEFC Full Load Amp 5.9/2.9 Overload None Shaft size 5/8" Service Factor 1.15 "C" Dimension 12.6 Rotation Reversible Return policy 30 days Weight 42 lbs Warranty 12 Months Dimension Sheet Features Totally Enclosed Fan Cooled (TEFC) enclosureDual mounting with NEMA 56C and removable baseClass F winding insulation Inverter duty Rolled steel shell frame / cast aluminum end bellRemovable base / bolt-on/bolt-off mounting feetLarge all-metal capacitor cover with rubber gasketLarge easy-to-wire junction box with rubber gasketHeavy duty oversized ball bearingsHigh tensile strength steel shaftElectrically reversibleNEMA design BService Factor: 1.15 285 7772400 10058400 259 261 257 280 262 283 1 0*8WR-YXRC420W200L(KP60 5 1 0 286 False 0 0 -1 304800 243 True 128 77 255 3175 3175 70 True True True True True 282 134217728 8 Empty 16711680 52479 26367 13421772 16737792 13382502 16777215 蓝鸟 -87325200 -87325200 (`@````````` 267 263 5
